Name: Heat Insulation Sandwich Panel Production Line For Compound Insulated Roof Panel
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Panel Sandwich
Price: 40,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Panel Sandwich >

Heat Insulation Sandwich Panel Production Line For Compound Insulated Roof Panel

heat insulation sandwich panel production line

50mm sandwich panel production line

compound insulated roof sandwich panel machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Panel Sandwich

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lini Produksi Panel Sandwich Untuk Panel Atap Terisolasi Majemuk

Kapasitas Produksi:

8-10m/mnt

Dimensi (P*L*T):

35000*2500*2600mm

Bahan Pemotong:

Cr12, padam

Kondisi:

Baru

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan teknis video, Layanan pemeliharaan d

Struktur tengah:

Papan busa polistiren

Panjang:

Menurut permintaan pelanggan

Menyoroti:

heat insulation sandwich panel production line

50mm sandwich panel production line

compound insulated roof sandwich panel machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

45 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Dapatkan Harga Terbaik

Eps Rock And Wool Sandwich Panel Production Machine For Customer Requirements

Dapatkan Harga Terbaik

32KW Hydraulic Motor Power Sandwich Panel Roll Forming Machine with Thickness 50-300mm

Dapatkan Harga Terbaik

High Efficiency Sandwich Panel Roll Forming Machine with Thickness 30-300mm

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

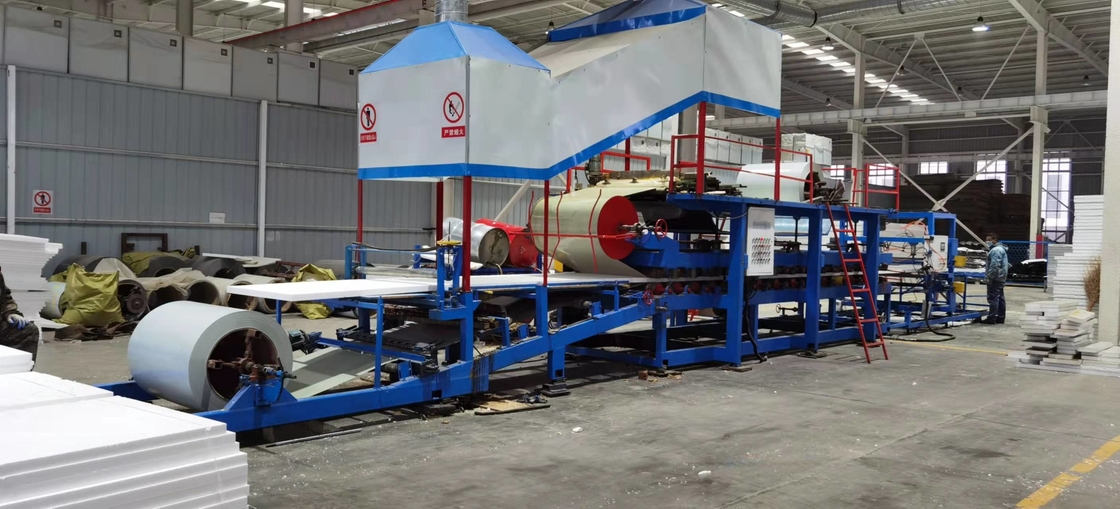

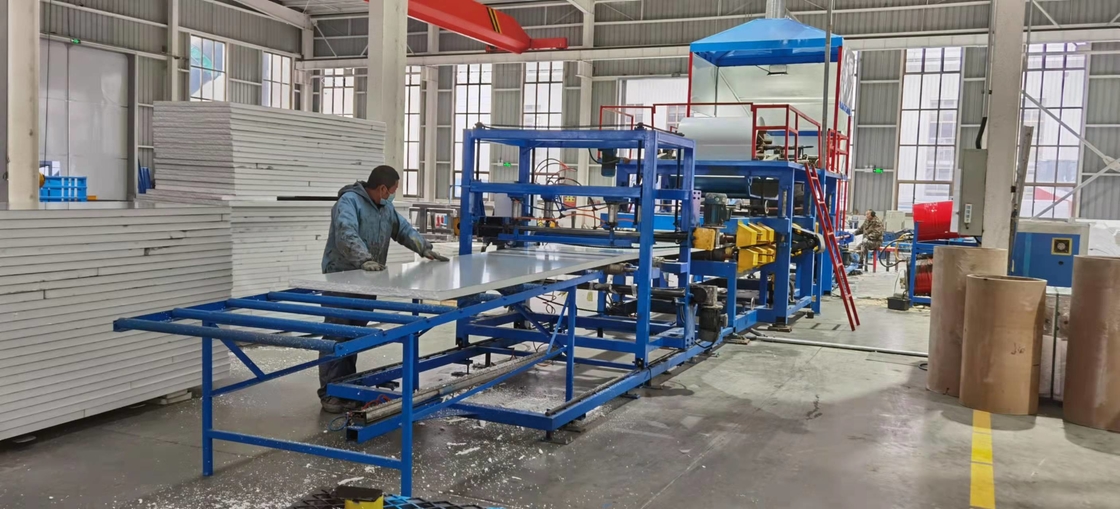

Sandwich Panel Production Line For Compound Insulated Roof Panel

Expandable Polystyrene Sandwich Panel Machine maily consist of a roll forming machine and a sandwich panel laminating system. both roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the laminating system is made up of such equipment as uncoiler, feeding, squeezing,gelatinizing, heating,laminating,edge rolling, edge turnover, groove-making,edge pruning, pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts, merging mechanical and electrical equipments into an organic whole.

Specification

Effective width	Wall panel: 950mm 1150mm 1200mm Roof panel: 950mm 980mm or according to customer's request
Length	According to customer's request
Materials	Polystyrene foam board(EPS), Color steel sheet
Speed	8-10m/min
Structure	Upper or lower layer: Color steel sheet
Structure	Middle: polystyrene foam board
Thickness	Color steel sheet: 0.3-0.6mm Polystyrene foam board: 50mm 75mm 100mm 150mm 200mm
The polystyrene density	8-20kg/m3
Conventional color	RAL standard
Character	Light in weight, heat insulation, water resistant, green and environmental

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
