Name: Corrugated Galvanised Steel Roof Roll Forming Machine Automatic Cutting
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Corrugated Galvanised Steel Roof Roll Forming Machine Automatic Cutting

galvanised steel roof roll forming machine

automatic cutting roof roll forming machine

corrugated metal roofing sheet forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Corrugated Galvanised Steel Roof Roll Forming Machine Automatic Cutting

Detail Produk

Nama Produk:

Mesin Roll Forming Lembaran Atap Stell Galvanis Bergelombang Pemotongan Otomatis

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Voltase:

380V 50HZ 3 Fase atau Lainnya

Berat:

1900kg

Nilai jual utama:

Mudah dioperasikan

Lebar makan:

1000mm

Komponen inti:

Motor, Pompa, Gearbox, PLC

Cutting Blade Material:

Cr12Mov dengan perlakuan quenching

Kapasitas Produksi:

8-12 m/mnt

Menyoroti:

galvanised steel roof roll forming machine

automatic cutting roof roll forming machine

corrugated metal roofing sheet forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

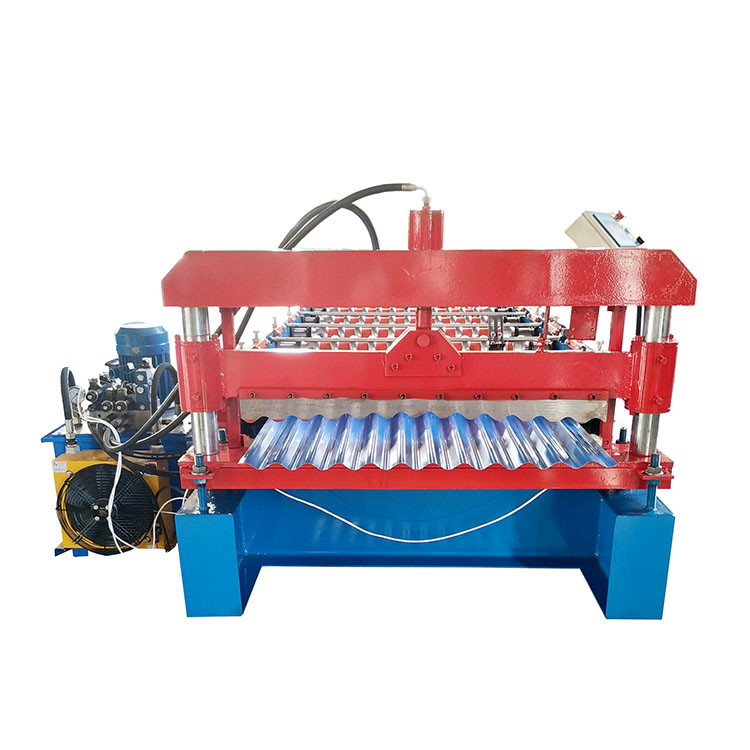

Corrugated Galvanised Stell Roofing Sheets Roll Forming Machine Automatic Cutting

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers

The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

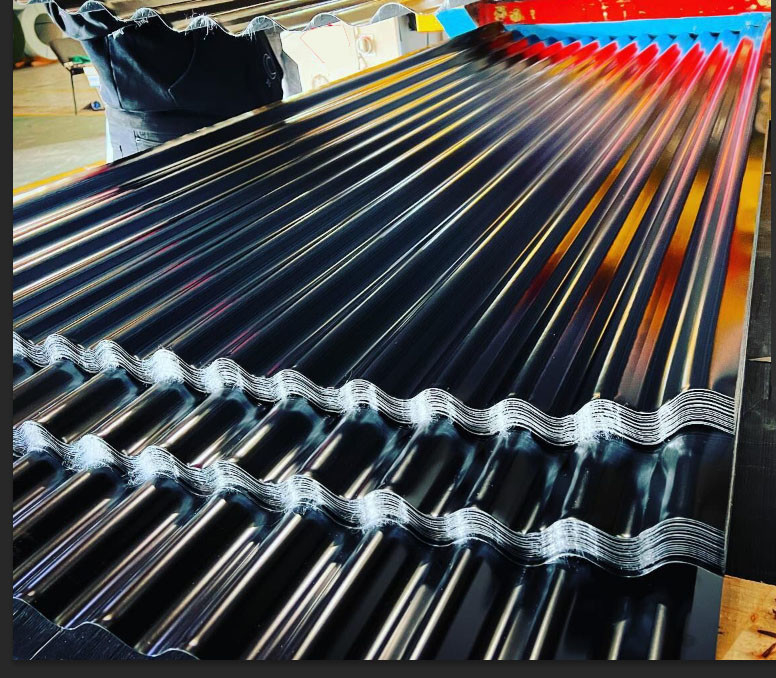

Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine,

Specification

Article No.	Item Name	Specification
1	Processing material	Color steel coil, Galvanized coil, Aluminized zinc coil or as your customized
2	Processing thickness (mm)	0.3-1.0mm or as your customized
3	Material of rollers	High grade 45# steel, Processed by CNC lathe, Hardening and tempering, polishing, hard chrome plated 0.05-0.07mm
4	Material of shafts	45# steel
5	Diameter of shafts	70mm or as your customized
6	Forming speed	8-12 m/min or as your customized
7	Under frame	350 H-beam
8	Sidewall	16mm
9	Connect bar	25mm, zinc plated
10	Forming steps	10-18 or as your customized
11	Control system	Delta PLC and Inverter
12	Suitable power	380V, 50 Hz, 3 phase or according to your need
13	Drive mode	Chain and sprocket, chain size 1 inch
14	Main motor	3-5.5kw
15	Hydraulic pump station	3-5.5kw
16	Cutting model	Hydraulic profile cutting
17	Dimension of the machine	7.5m-11m×1.5mm×1.2m
18	Weight of the machine	3.5 ton -6 ton

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
