Name: Galvanised Steel Sheets Roof Roll Forming Machine Automated Production Lines
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Galvanised Steel Sheets Roof Roll Forming Machine Automated Production Lines

galvanised roof roll forming machine

0.25mm roof roll forming machine

galvanised metal roofing roll former

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lembaran Atap Baja Galvanis Mesin Roll Forming Jalur Produksi Otomatis

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Voltase:

380V 50HZ 3 Fase atau Lainnya

Kapasitas Produksi:

6-8m/mnt

Jaminan:

1 tahun

Ketebalan Bahan:

0,25-0,8mm

Hidrolik Listrik:

4 kW

Akurasi pemotongan:

±2 mm

Menyoroti:

galvanised roof roll forming machine

0.25mm roof roll forming machine

galvanised metal roofing roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

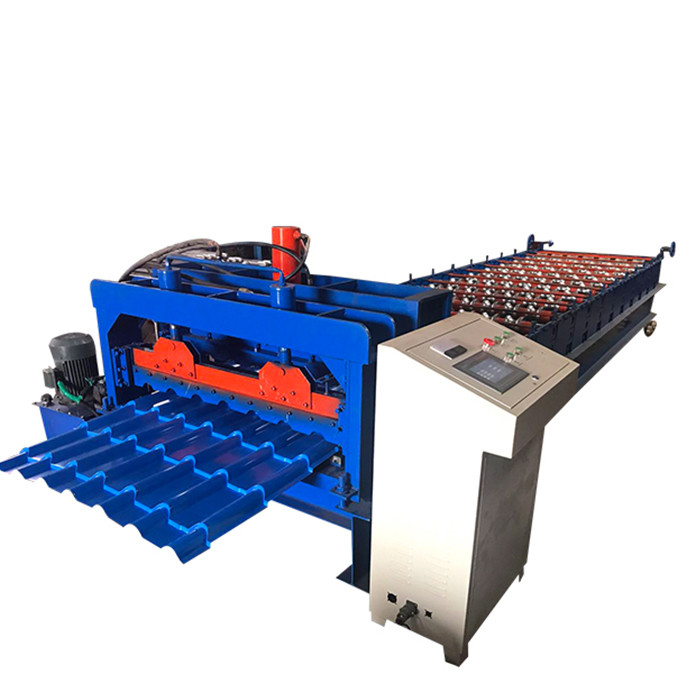

Galvanised Steel Roofing Sheets Roll Forming Machine Automated Production Lines

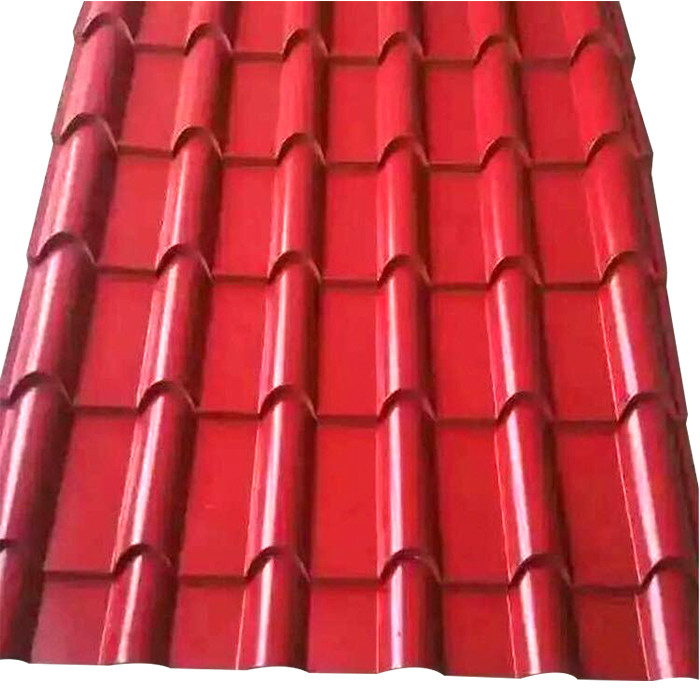

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

Specification

1	material of input sheet	galvanized steel/ colored steel
2	feeding width	1200mm
3	effective width	960mm
4	material thickness	0.3-0.8mm
5	main motor power	4kw
6	hydraulic pump power	4kw
7	forming step	13steps
8	diameter of shaft	75mm
9	main frame	300H steel
10	roller material	45# steel with chrome
11	cutting knives material	Cr12
12	control system	PLC control system with inverter (Delta brand)
13	working speed	6-8m/min
14	machine size	6.01.51.3m
15	machine weight	about 3.5 tons
16	voltage	380v 3phase 50hz

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
