Metal Sheet PPGI 380V60Hz Glazed Tile Roll Forming Machine Automatic

ppgi glazed tile roll forming machine

380v60hz glazed tile roll forming machine

ppgi glazed tile forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Ubin Mengkilap Lembaran Logam Otomatis

Nilai jual utama:

Umur layanan yang panjang

Bahan mentah:

Lembaran PPGI/Galvanis

Voltase:

380V60Hz atau sesuai kebutuhan klien

Komponen inti:

Motor, plc

Ketebalan bahan:

0.3-0.8mm

Kapasitas Produksi:

8-12 meter/menit

Sistem Pengendalian:

Kotak kontrol PLC

Menyoroti:

ppgi glazed tile roll forming machine

380v60hz glazed tile roll forming machine

ppgi glazed tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

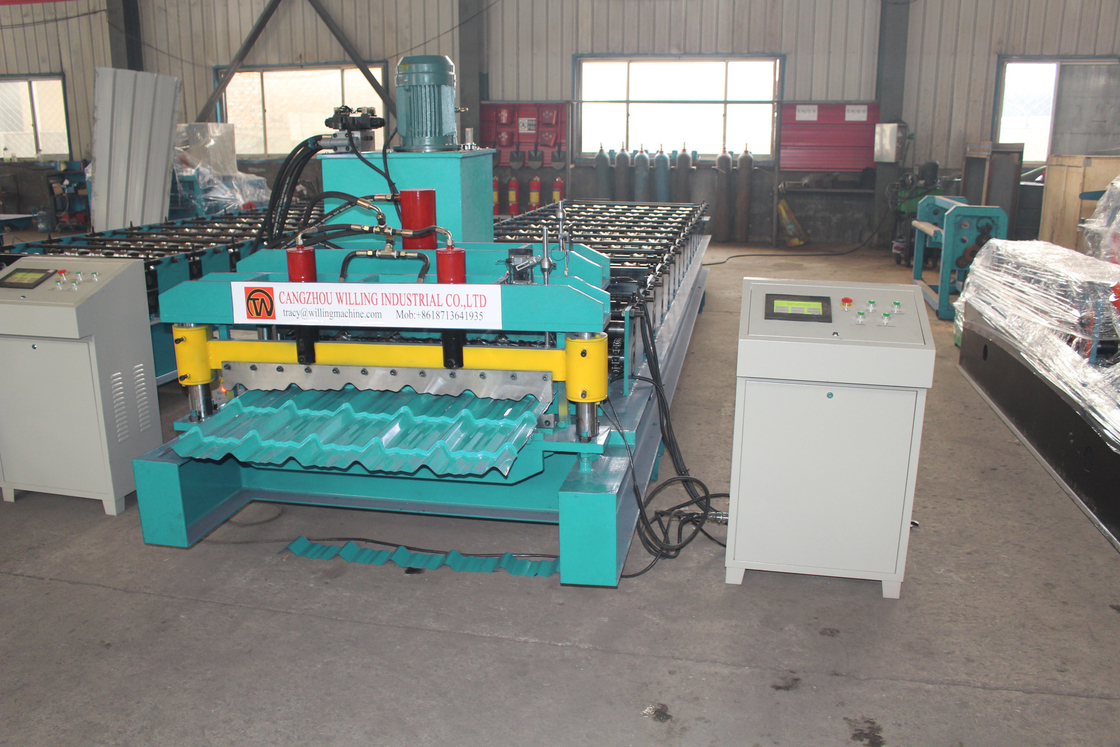

Metal Sheet Glazed Tile Roll Forming Machine Automatic

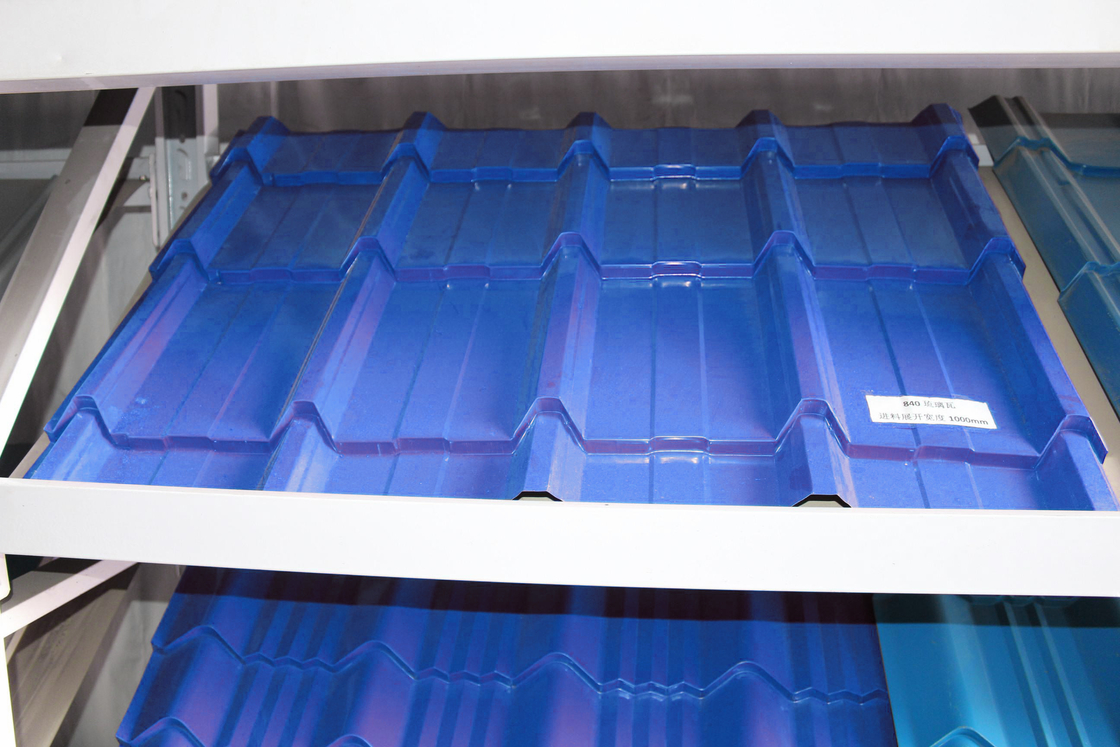

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

Specification

No.	Item	Description
1	Type	Steel / Galvanized Panel
2	Feeding width	According to client's requirement
3	Thickness	0.3-0.7 mm
4	Roller station	13 Steps (According to the profile)
5	Diameter of shaft	75mm
6	Shaft material	45# Steel
7	Roller material	45# Steel
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	4 KW
10	Voltage	380V 50Hz 3phases or Customerization
11	Cutting Accuracy	±2 mm
12	Weight	About 3.5 Tons
13	Cutting type	Hydraulic cutting
14	Material of blade	Cr12, HRC60-62°C

Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
