Ppgi Corrugated 0.3mm Metal Roofing Sheet Forming Machine Fully Automatic

0.3mm metal roofing sheet forming machine

ibr metal roofing sheet forming machine

fullyautomatic double layer roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Deskripsi produk:

IBR Dan Mesin Pembentuk Lembaran Atap Bergelombang Lapisan Ganda Sepenuhnya Otomatis

Kapasitas Produksi:

15-20m/mnt

Bahan poros:

bahannya adalah baja tempa 45#

Bahan roller:

Perawatan pendinginan GCr15,Cr12,SKD11: HRC58-62（opsional）

Sistem Pengendalian:

PLC

Ketebalan material:

0.3mm-0.8mm

Voltase:

380V 50HZ 3PH

Cutting Blade Material:

Kr 12 Bergerak, Dipadamkan

Menyoroti:

0.3mm metal roofing sheet forming machine

ibr metal roofing sheet forming machine

fullyautomatic double layer roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

35 set per bulan

Produk terkait

Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik

Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

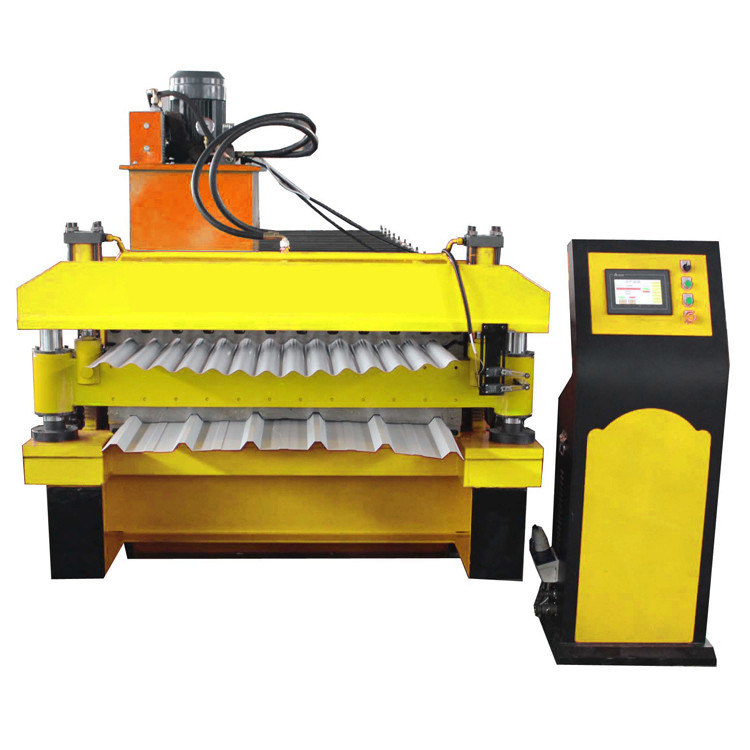

IBR And Gorrugated Roof Sheet Forming Machine Fully Automatic Double Layer

The double layer roll former produces a dual profile on the same machine, sharing the same decoiler, drive trains and motors, but using different rolls and different cut offs.

The double layer machine is particularly useful where operating or storage space is a problem.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	roller material	45# steel plated with chrome
3	Rows of rollers	15 rows & 16 rows
4	Way of drive	chaindrive,Gearbox drive(optional)
5	diameter of shaft	70mm
6	Hydraulic station power	11kw
7	Thickness of raw material	0.25-0.8mm
8	thickness	0.3-0.8m
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	main motor power	5.5kw
12	hydraulic station power	4kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
