Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

ppal automatic roll forming machine

0.8mm metal sheet roll forming machine

ppal metal sheet roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

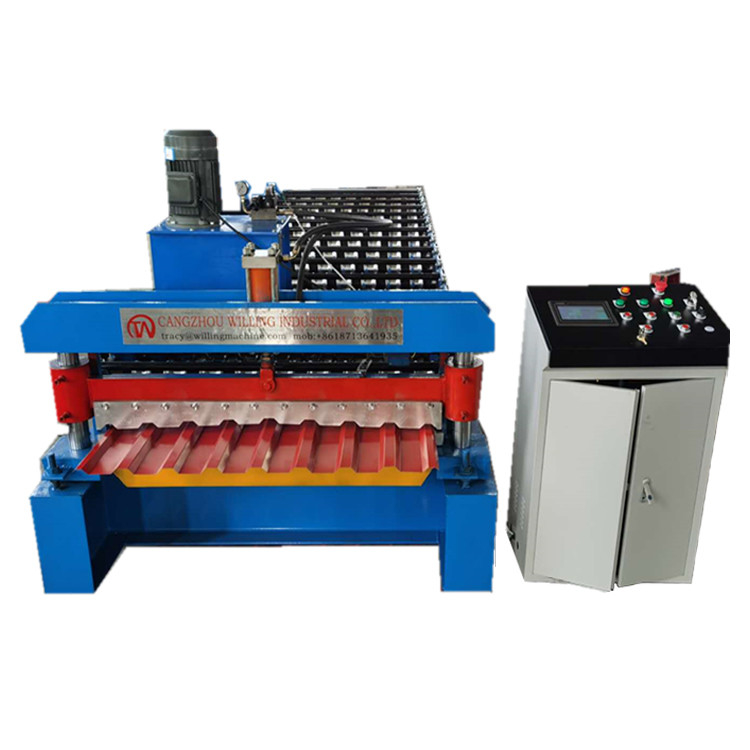

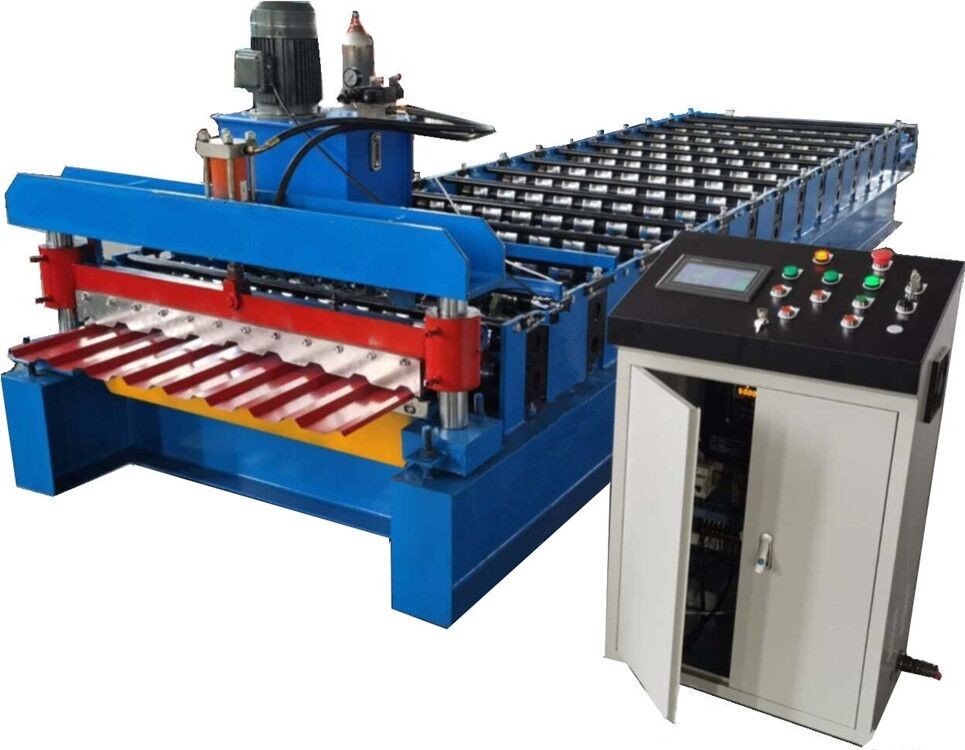

Trapezoidal PPAL 0.8mm Metal Sheet Roll Forming Machine Automatic

Detail Produk

Deskripsi produk:

Mesin Roll Forming Lembaran Logam Trapesium Otomatis

Ketebalan material:

0.3-0.8mm

Bahan poros:

bahannya adalah baja tempa 45#

Kapasitas Produksi:

0-12m/mnt

Sistem Pengendalian:

PLC

Garansi inti:

2 Tahun

Voltase:

380V 50HZ 3PH

Bahan roller:

45#, Cr12, GCr15, GCr12MoV

Menyoroti:

ppal automatic roll forming machine

0.8mm metal sheet roll forming machine

ppal metal sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Trapezoid Metal Sheet Roll Forming Machine Automatic

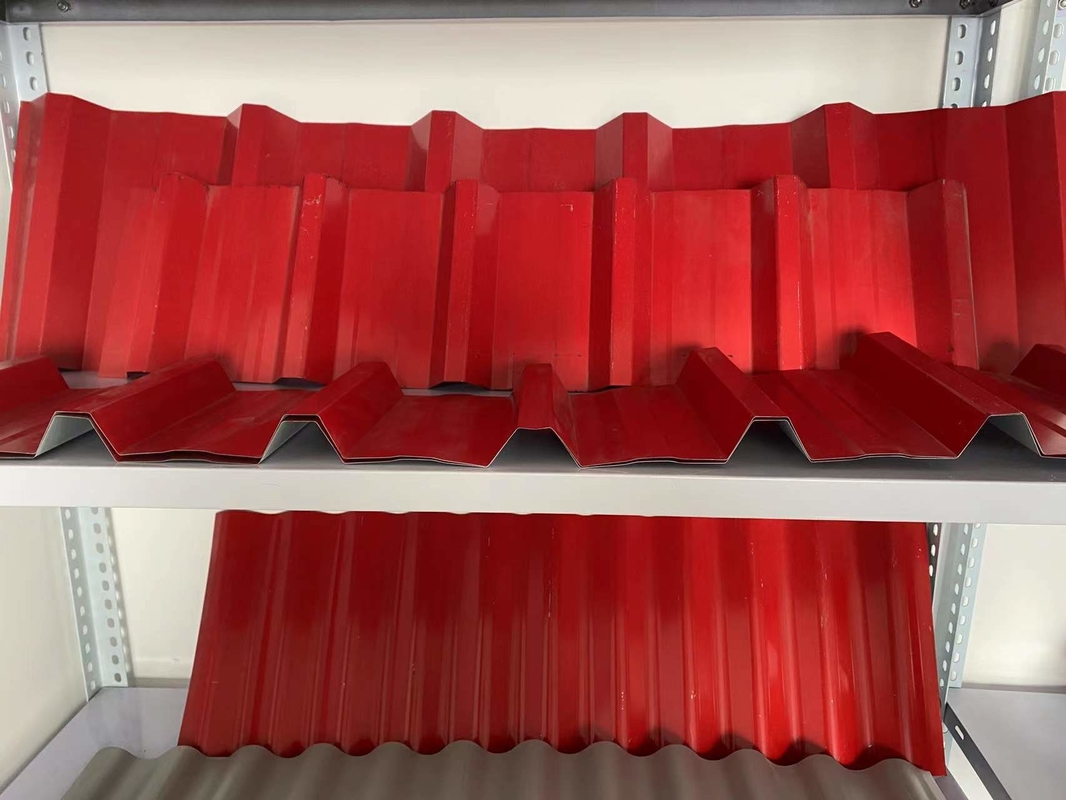

Metal glazed tile is a new kind of building materials, the archaist sheet for roofing, like the wood one and clay one.The metal glazed tile roof sheet is more easy to install and using life time is more longer.With the market demand, the metal glazed tile roofing sheet is getting more popular.

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.

Equipment Detailed Parameters:

No.	Item		Unit	Parameter	Remark
1	Material
		Type		PPGI, PPGL, GI, GL, PPAL	As requirement
		Thickness of Material	mm	0.3-0.8mm	As requirement
2	Material Width		mm	914-1650mm	As requirement
3	Production Speed		m/min	Common speed: 0-12m/min	Adjustment
3	Production Speed		m/min	High speed	As requirement
4	Effective Width of Product		mm	760-1260mm	According to drawings
5	Roller Material			45#, Cr12, GCr15, GCr12MoV	As design
6	Drive Type			By Chain or Gear or Gearbox
7	Motor Power		kW	9.5
8	Brand of Electric Control System			Delta or Siemens or Schneider	Selectable
9	Dimension ( L* W * H )		m	8.51.451.5	Based on design
10	Warranty		Month	24

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
