Interchangeable Reduce Motor Cz Purlin Roll Forming Machine Full Automatic

interchangeable cz purlin roll forming machine

fullautomatic cz purlin roll forming machine

reduce motor cz purlin machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Komponen inti:

PLC, Mesin, Bantalan, Motor, Roda Gigi, Pompa

Kapasitas Produksi:

20m/mnt

Bahan sumbu:

45#baja

Ketebalan material:

1-4mm

Membentuk langkah:

Disesuaikan

Sistem Pengendalian:

PLC

Berat:

15kw

Kekuatan:

15kw

Menyoroti:

interchangeable cz purlin roll forming machine

fullautomatic cz purlin roll forming machine

reduce motor cz purlin machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union, L/C

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

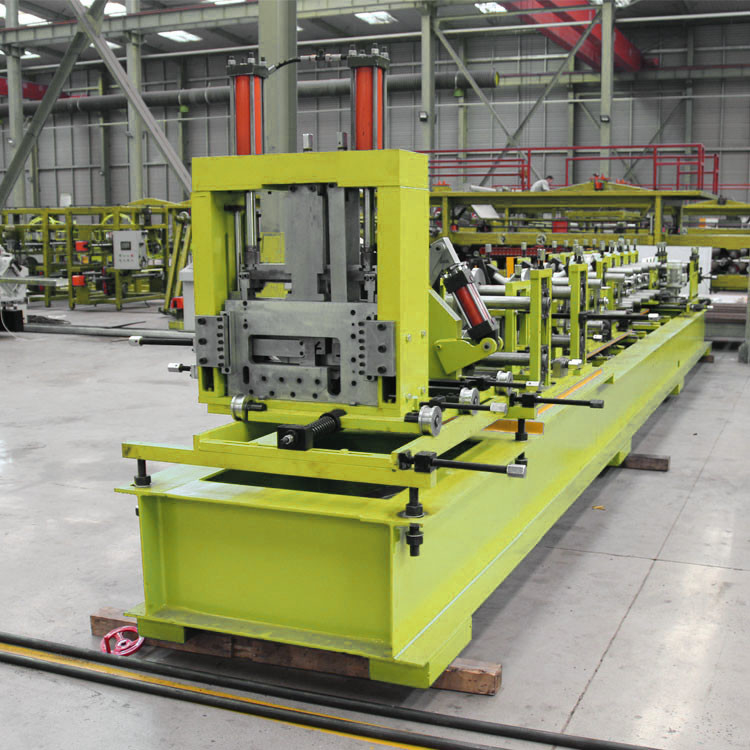

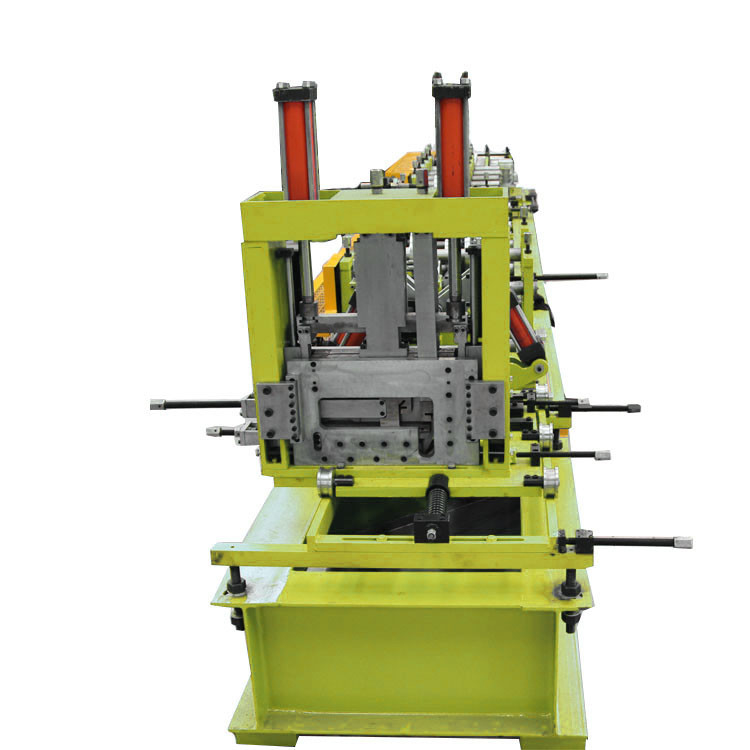

C Z Shape Purlin Forming Machine Full Automatic Change Size Type

Where are our company C/Z purlin interchangeable roll forming machine diffience from other compititor: 1.The finished purlin has high straight level and high crush resistance ability. 2.The finished Z purlin can be lap reversely.The connection point improve strength. 3.Use reduce motor and frequency to control, the speed length and location can be control. 4.Interchangeable progress between C and Z is fast and easy.

The structural C and Z purlins are used in industrial buildings, garages, verandas, and carports; or anywhere that strong reliable steel framing is required. Manufactured from quality galvanised steel, this is a fully integrated system allowing for flexible design options.

specifications

1	Leveling parts	shaft	No. 45 steel
		Roller	95mm and No.45 steel with quenching
		Forming Stand	UP:5groupes down:6 group
2	Punching cutting parts	Type	Hydraulic punching
		Model material	Cr 12 with quenching
		Cutting Blade	SKD 11
		Type of Cutting	Length-set cutting
3	Machine	Shaft	No.45 steel
		Roller	80mm and GCR15 Steel Chrome plated
		Forming Stand	About 12 groups
		Forming Speed	30m/min
		Transmission style	Score box drive
		Main machine structure	Guide column or wallboard
7	Power Requirement	Type	380AC/50HZ
		Main motor	3Kw
		Hydraulic	4 Kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
