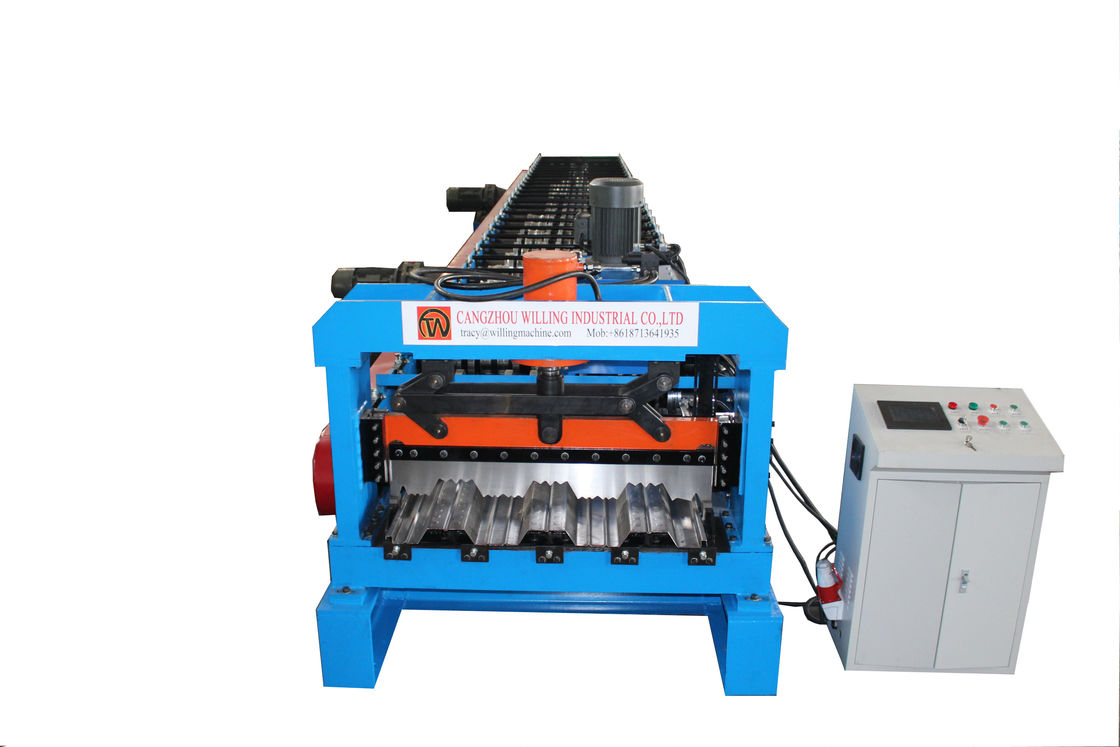

Multi Story 24stations Floor Deck Roll Forming Machine Steel Plate Tile Making

multistory floor deck roll forming machine

24stations floor deck roll forming machine

multi story floor deck forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Multi Story 24stations Floor Deck Roll Forming Machine Steel Plate Tile Making

Detail Produk

Nama Produk:

Mesin Pembuat Ubin Lantai Dek Pelat Baja Untuk Pasar Eropa

Stasiun roller:

45#baja Dilapisi Krom Keras

Dimensi (P*L*T):

7500*1700*1600Mm Sesuai permintaan pelanggan

Jaminan:

1 tahun

Jenis pemotongan:

Pemotongan hidrolik

Sistem Pengendalian:

PLC

Kecepatan kerja:

5-12m/menit

Ketebalan material:

0.8-1.5mm

Jenis pemasaran:

Produk biasa

Daya Total (kw):

7.7KW

Menyoroti:

multistory floor deck roll forming machine

24stations floor deck roll forming machine

multi story floor deck forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Cellular Composite Roofing Sheet Making Machine 3.0" Width 0.8-2.0MM Thickness

Dapatkan Harga Terbaik

Video

13 Rows Roof Tile Roll Forming Machine For Tipo Teja Americana Normal Tile

Dapatkan Harga Terbaik

Video

Decking Flooring Board 1.2mm Floor Tile Making Machine

Dapatkan Harga Terbaik

Video

45 Steel Deck Roll Forming Machine Cold ±2mm Cutting Tolerance Excellent Performance

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Steel Plate Deck Floor Tile Making Machine For European Market

It is widely used in multi-story and high-rise steel structures, and is the most widely used floor method in domestic multi-story and high-rise steel structures (profiled steel plate-concrete composite structure). It adopts hot-dip galvanized steel sheet to be formed by rolling and cold bending. Its characteristics are construction, convenience and short construction period, saving steel bars, double as steel formwork, low cost and so on.
Adapting to the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time,and can be used to lay the profiled steel plate on multiple floors, and the flow water construction of the layered concrete slab.

Specification

name	decking floor making machine
Roller steps	24 stations
Dimension	1200016001550mm
Weight	11t
Forming thickness	0.8-1.2mm
Large frame	450mm H-Beam
Diameter of roller	Φ90mm
Middle plate	20mm
transport	chain
Voltage	380V 60HZ 3 PH or customized by your request
Motor power	11kw+11kw
Pump station power	3kw/(5.5kw hydraulic motor)
Transducer power	11.5kw
Cutting system	Hydraulic cutting by pillar type
Material of cutting	Cr12
Control system	PLC brand :Delta / Panasonic
Control system	Length error : ±1mm
work speed	8-12m/min

Application

The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete.

Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity,

it economized steel and cuts down investment accordingly.

We can also supply the customized machines.
