840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed Ppgi

Detail Produk

Nama Produk:

840 Panel Trapesium Mesin Roll Forming Atap Ibr Dingin Ditekan

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Ketebalan bergulir::

0.3-0.8mm

Bahan poros:

High Grade NO. Kelas Tinggi TIDAK. 45 Carbon Wrought Steel 45 Baja Tempa Kar

pisau pemotong:

Baja cetakan CR12 dengan perawatan yang dipadamkan

Warna:

Sesuai permintaan pelanggan

produktivitas:

20-25m/mnt

Daya Stasiun Hidrolik:

4 kW

ketegangan listrik:

380V 50 Hz 3 Fase atau sesuai kebutuhan Anda

Menyoroti:

ppgi roof roll forming machine
,
ibr roof roll forming machine
,
ppgi sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

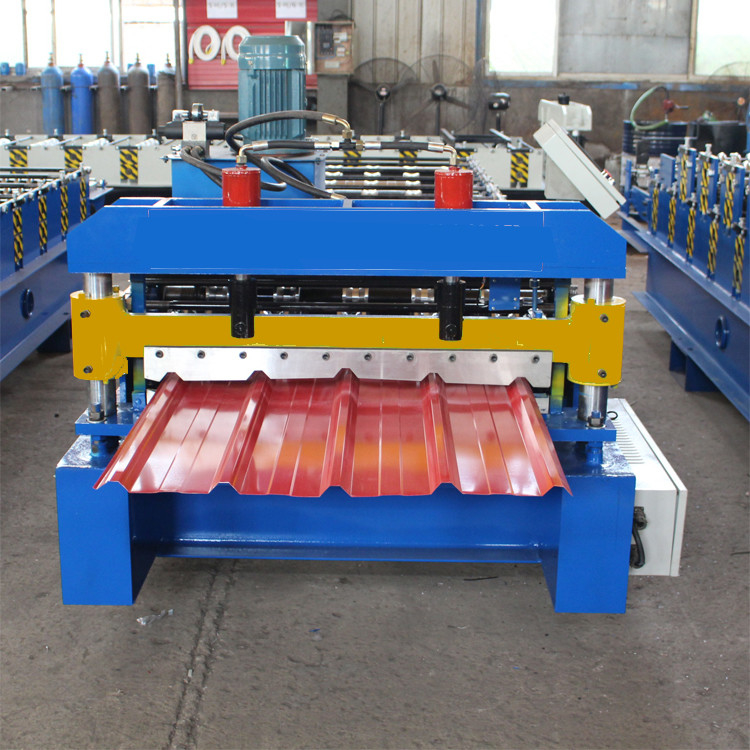

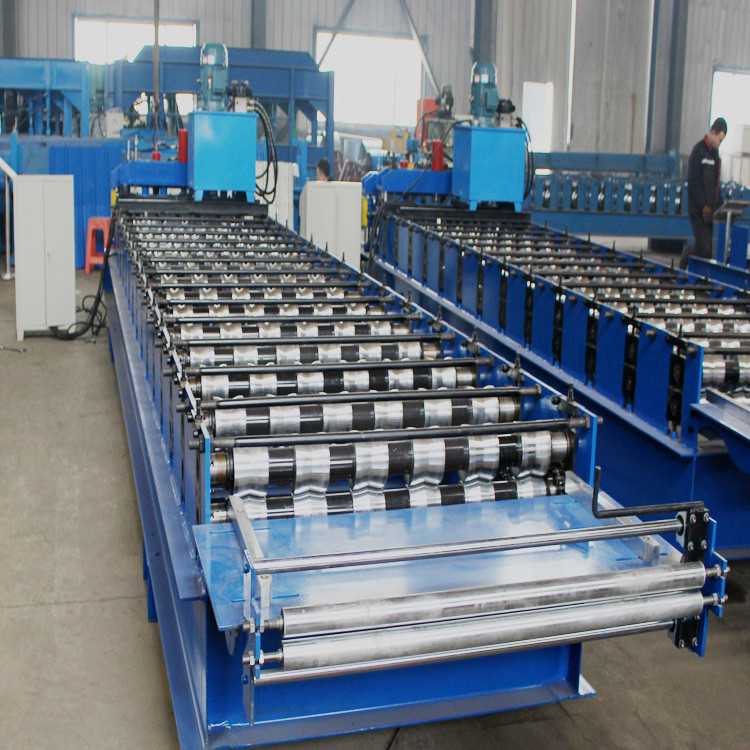

840 Trapezoidal Panel Ibr Roof Roll Forming Machine Cold Pressed

840 trapezoidal sheet roll forming machine popular sell in many countries. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.3-0.8 mm.According to customer’s requirement, the technical parameters of the roll forming machine are different.The design of the roll forming machine is convenient to adjust, for it owns reasonable structure,compact shape, high precision and high efficiency.Corrosion resistance, aging resistance and long service life, the service life of the color steel press type equipment is longer than other's.

Specification

No. Item Description

1 Coil Galvalume, Galvanized, PPGI, Aluminum

2 Rolling thickness 0.2-0.8mm

3 Working Speed 20-25m/min ( not including the cutting time)

4 Roller Station 12 Raws

5
Dimension (L*W*H)
52000 mm*1500 mm*1100 mm

6
Electrical Control System

Delta PLC (can be customized)

7
Drive Motor Power
4KW

8
Hydraulic Station Power
4KW

9
Power Supply

380V, 60HZ, 3 PHASES(can be customized)

10
Cutting Accuracy

±2 mm

11
Driving Mode

Single Chain 1 inch

12
Material of Shaft

70 mm 45#steel forged

13 Material of Roller
45# Steel Finish Machining, Plated Hard

Details Advantages:

1. More beautiful outlook, and color of machine. The inner using 300H frame, which can make sure machine more favorable for the machine using for long time.

2.We can customized all your demands for you, such as voltage, color, logo, inner wheels, frame, Plc.....

3. We have been export machine to many countries, and familiar to many countries demands and market, which can give you more favorable suggestions. And more easy for you import the machine.
