Standing Seam Galvanized Sheet Roof Roll Forming Machine For 0.5mm Thickness

galvanized sheet roof roll forming machine

0.5mm thickness roof roll forming machine

galvanized standing seam roll former

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

610

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Standing Seam Roll Forming Mahine Untuk India

Bahan mentah:

Lembaran PPGI/Galvanis

Ketebalan:

0.5-0.8mm

Bahan poros:

bahannya adalah baja tempa 45#

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri

Menggunakan:

Jahitan Berdiri Panel Kunci Snap Strip Kuku

Kondisi:

Baru

Sistem Pengendalian:

PCL

Menyoroti:

galvanized sheet roof roll forming machine

0.5mm thickness roof roll forming machine

galvanized standing seam roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Standing Seam Roll Forming Mahine For India

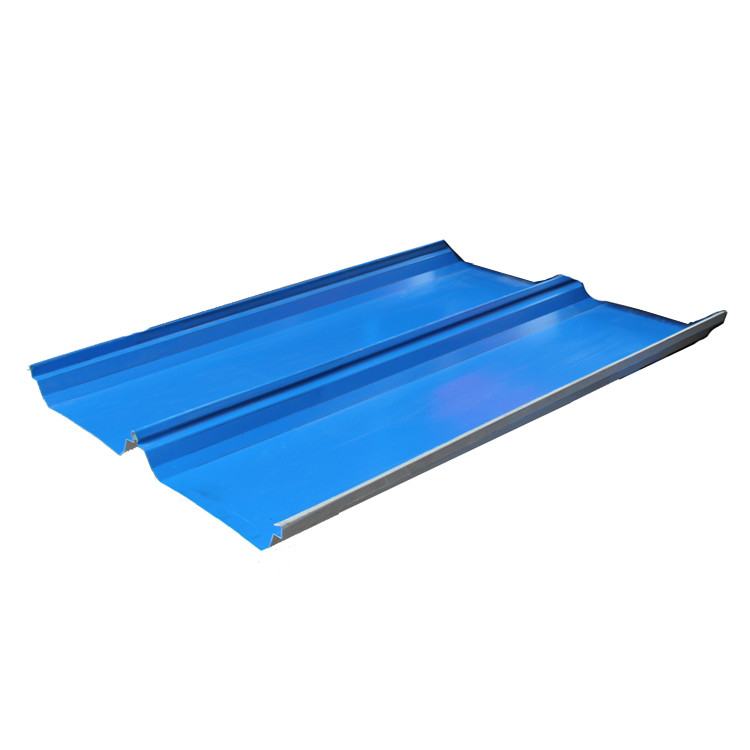

Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.

Equipment Detailed Parameters:

No.	Item	Description
1	Coil width	About 610mm
2	Working Speed	8-15m/min (not including cutting time)
3	Roller Stations	20 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Hardness of roller	HRC 58-62
6	Material of Main Shaft	45# steel finishing machining and then slack quench processed
7	Material of Shaft	70 mm 45#steel forged
8	Main Motor Power	5.5 KW
9	Electrical Hydraulic Station Power	4 KW
10	Hydraulic Station Pressure	12.0 Mpa
11	Electrical Control System	PLC Panasonic
11	Material of Cutter	Cr12 MOV
12	Hardness of cutter	HRC:58-62
13	Driving Mode	single chain 1 inch
14	Material Thickness	0.5-0.8mm
17	Power Supply	415V, 50HZ, 3 PHASES
18	Cutting accuracy	±2mm

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
