Rumah > Produk > Mesin Roll Forming Atap >

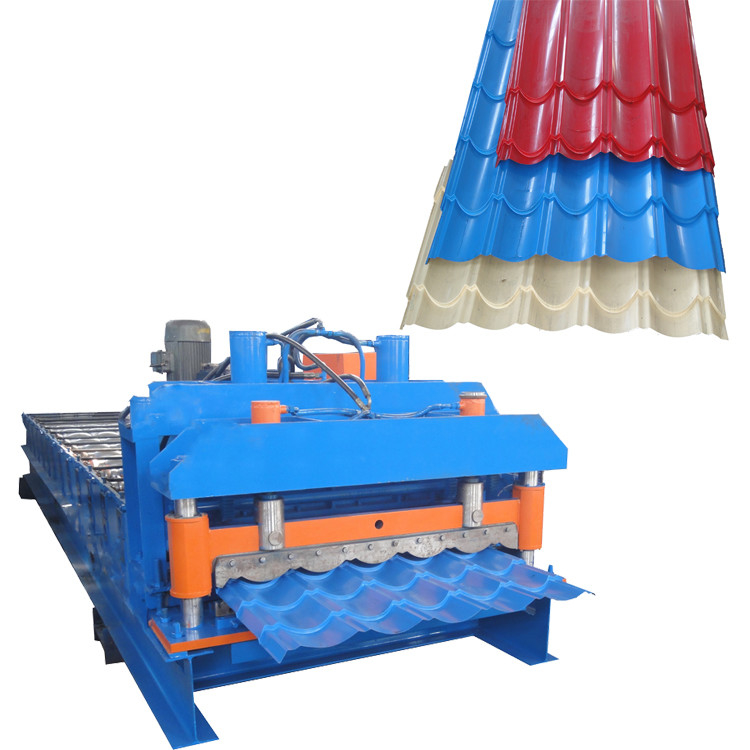

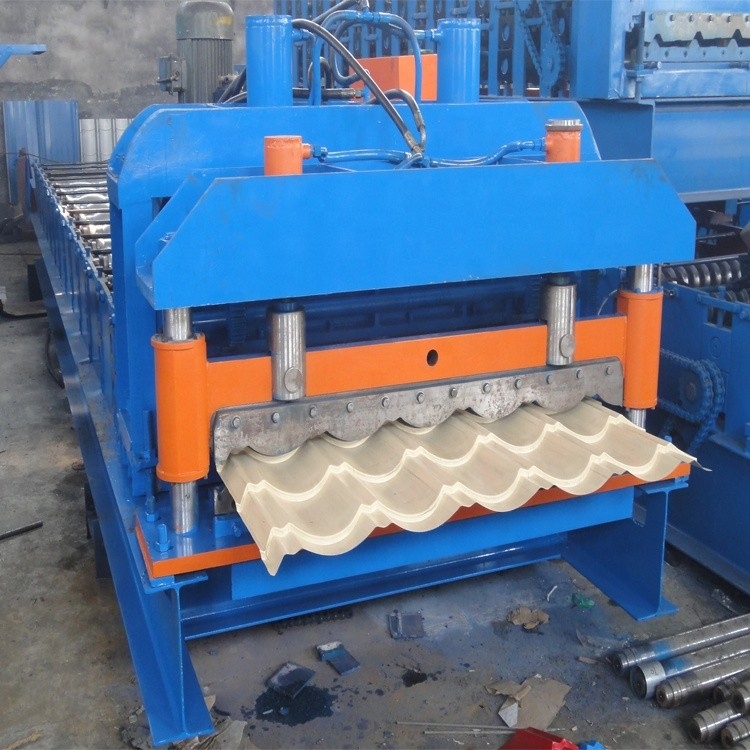

High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting

ppgi glazed tile cold roll forming machine

hydraulic glazed tile cold roll forming machine

hydraulic cutting glazed roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami
Minta Penawaran Harga
High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting
High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting
Detail Produk
Nama Produk:
Mesin Roll Forming Ubin Mengkilap Pemotongan Hidraulik Berkecepatan Tinggi
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium, Tembaga
Voltase:
380v
Menggunakan:
Panel atap
Jaminan:
1 tahun
Ketebalan Bahan:
0,25-0,8mm
Hidrolik Listrik:
4 kW
Akurasi pemotongan:
±2 mm
Menyoroti:

ppgi glazed tile cold roll forming machine

,

hydraulic glazed tile cold roll forming machine

,

hydraulic cutting glazed roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
35 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

Glazed Tile Roll Forming Machine High Speed Hydraulic Cutting



Roofing colored steel tile, also known as: colored pressing tile, is the use of color coating steel plate, cold bending through the roll into a variety of wave plate.

It is applicable to the industrial and civil buildings, warehouses, special buildings, large span steel structure of the roof, walls and interior and exterior decoration, with light, high strength, rich color, construction convenient and fast, seismic, fire, rain, long life, maintenance free and other characteristics, has been widely promoted and applied.





Profile



Specification



Material Thickness
0.25-0.8 mm
Working Speed
8-15m/min
Main servo
5.5kw
Hydraulic Station Power
4 kw
Electrical Control System
PLC
Suitable Material
PPGI (235Mpa)
Material of Cutter
Cr12
Driving Mode
single chain 1 inch
Cutting accuracy
±2 mm
Power Supply
380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure
12.0 Mpa





Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.



High Speed PPGI Glazed Tile Cold Roll Forming Machine Hydraulic Cutting 0
