Two Waves Beams Chaindrive Crash Barrier Roll Forming Machine

plc crash barrier roll forming machine

chaindrive crash barrier roll forming machine

chain drive guardrail roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Pagar Pembatas Jalan Raya Dua Gelombang Balok Penghalang Kecelakaan

Layanan purna jual disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Dukungan online, Dukungan teknis video, Suku

Pembentukan Stasiun:

Menurut Gambar Profil Anda

Bahan roller:

Perawatan pendinginan GCr15,Cr12,SKD11: HRC58-62（opsional）

Voltase:

380V.50HZ.3Phase

Kontrol:

PLC

Cara Berkendara:

Penggerak Rantai, Penggerak Gearbox (opsional)

Permintaan bahan baku:

baja canai dingin atau baja canai panas, baja galvanis, SS316L/Baja Ringan

Menyoroti:

plc crash barrier roll forming machine

chaindrive crash barrier roll forming machine

chain drive guardrail roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

50 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Dapatkan Harga Terbaik

Video

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Dapatkan Harga Terbaik

Video

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Dapatkan Harga Terbaik

Video

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

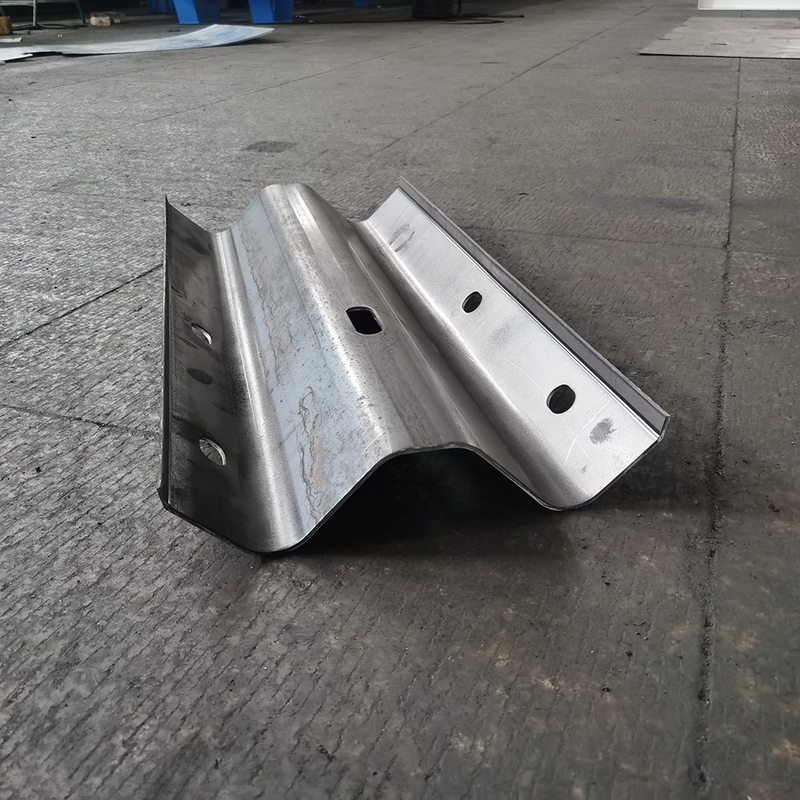

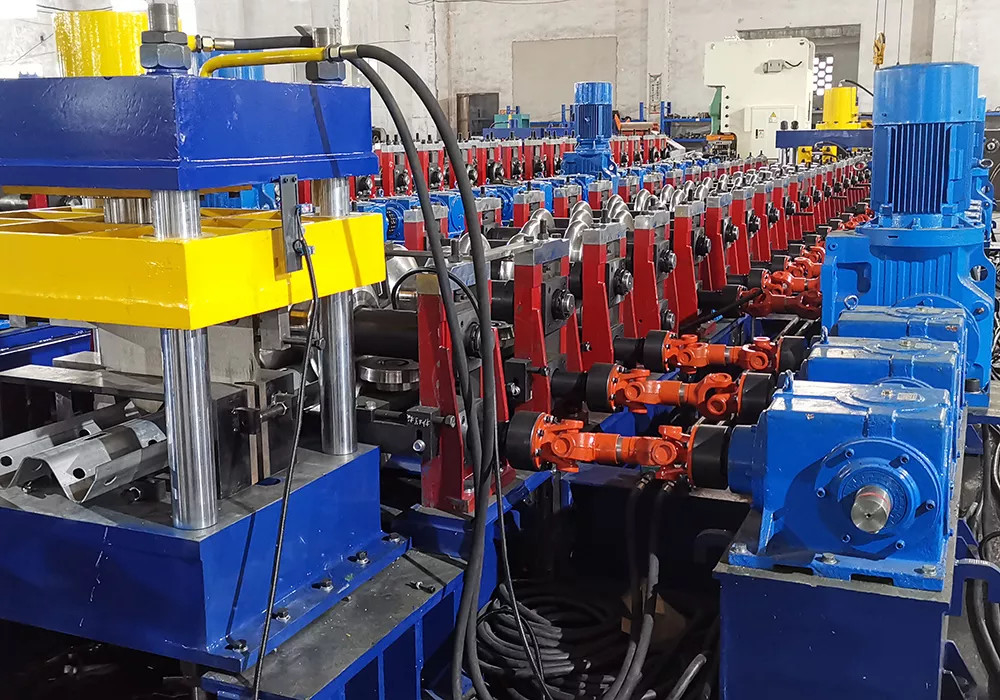

Two Waves Highway Guardrail Roll Forming Machine Beams Crash Barrier

Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.

Specification

No.	Item	Description
1	Coil	Q235MPA Steel
2	Material Thickness	3 mm
3	Working Speed	10- 15 m/min ( not including the cutting time)
4	Roller Station	13 Raws
5	PLC	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
6	Whole line working speed	0-25m/min
7	Length precision	±0.3mm/10m
8	Punching system	hydraulic punching ,punching press machine(option)
9	Cutting system	pre cutting,hydraulic post cutting,servo Tracking cutting
10	Inverter	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
