Name: U Gearbox Drive Post Roll Forming Machine High Impact Endurance
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Pagar Pembatas Jalan Raya
Price: 50,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Roll Highway Guardrail >

U Gearbox Drive Post Roll Forming Machine High Impact Endurance

gearbox drive post roll forming machine

u post roll forming machine

high impact endurance roll former

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Pagar Pembatas Jalan Raya

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Lini Produksi Mesin U Post Roll Forming Ketahanan Dampak Lebih Tinggi

Pembentukan Stasiun:

Menurut Gambar Profil Anda

Bahan roller:

Perawatan pendinginan GCr15,Cr12,SKD11: HRC58-62（opsional）

Cara Berkendara:

Penggerak Rantai, Penggerak Gearbox (opsional)

Permintaan bahan baku:

baja canai dingin atau baja canai panas, baja galvanis, SS316L/Baja Ringan

Kontrol:

PLC

Kecepatan kerja seluruh lini:

0-25 m/mnt

Presisi panjang:

±0,3mm/10m

Menyoroti:

gearbox drive post roll forming machine

u post roll forming machine

high impact endurance roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

50 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Dapatkan Harga Terbaik

Video

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Dapatkan Harga Terbaik

Video

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Dapatkan Harga Terbaik

Video

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

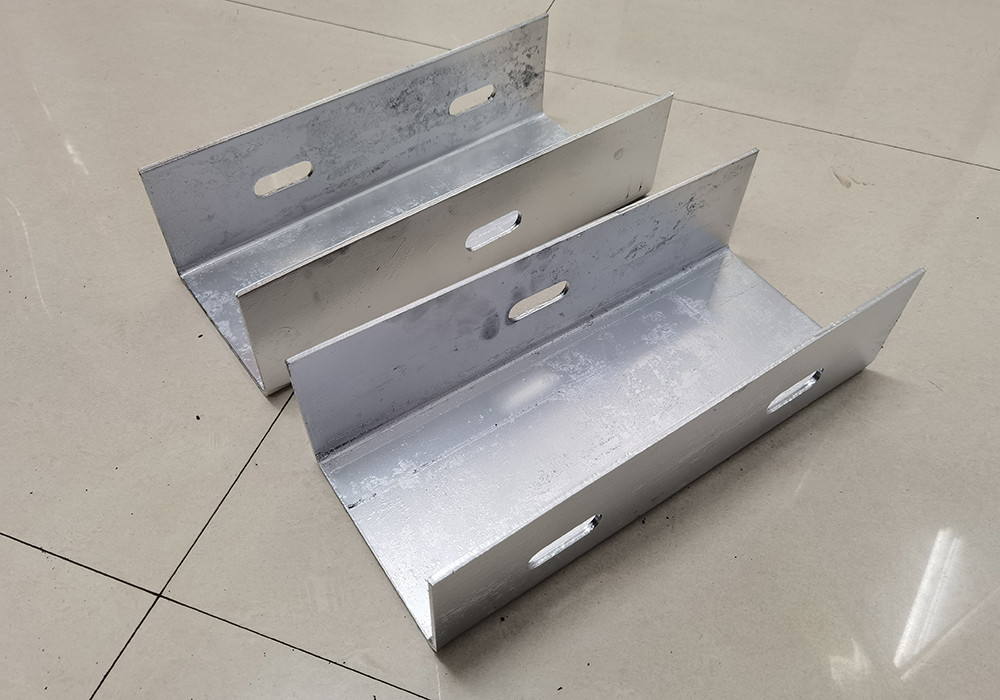

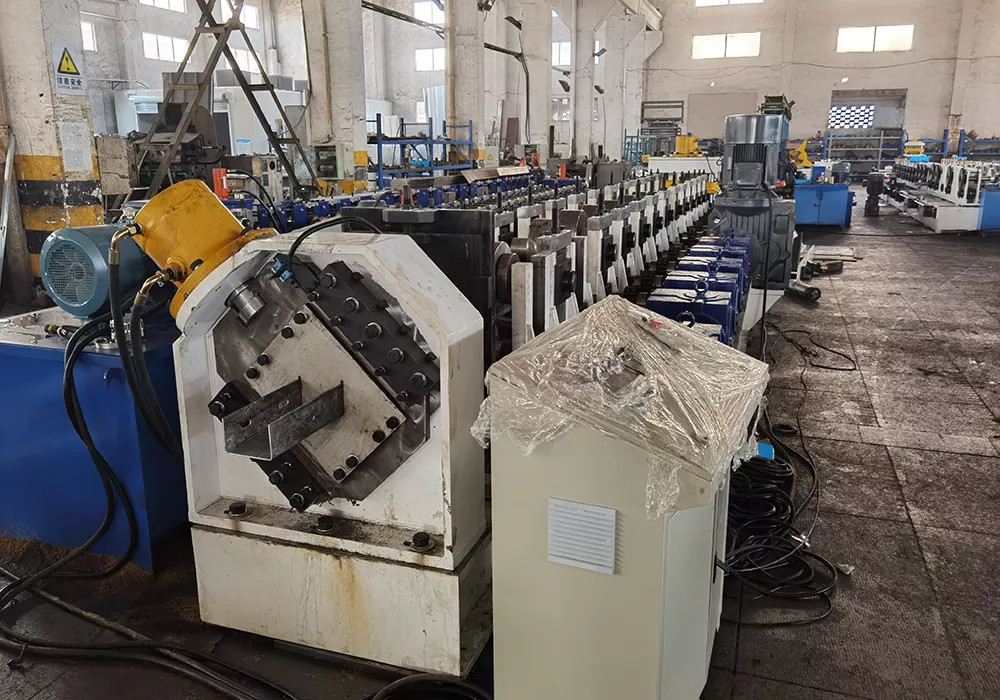

Production Line Of U Post Roll Forming Machine Higher Impact Endurance

Highway Guardrail plate is mainly used in national high-speed railway, highway road reconstruction projects and industrial hardware products and other industries. When subjected to external forces, the deformation of guardrail plate and column can absorb impact force to protect pedestrians and vehicles.Is a common road safety emergency protection facilities.

It is a perfect combination of high quality material (including Q235, Q345, etc.) and excellent anti-rust zinc or PVC coating. All of these make it outstanding at long-term corrosion and rust resistance. Meanwhile, it costs effectively and is widely used as a visual and physical barrier for protection against run-off road collision. Additionally, it is often used as a specific signs for a transition to high speed roadways, bridges, etc.

Specification

No.	Item	Description
1	Coil	Q235MPA Steel
2	Material Thickness	3 mm
3	Working Speed	10- 15 m/min ( not including the cutting time)
4	Roller Station	13 Raws
5	Coil Width	≤400-600 mm
6	Length precision	±0.3mm/10m
7	Punching system	hydraulic punching ,punching press machine(option)
8	Cutting system	pre cutting,hydraulic post cutting,servo Tracking cutting
9	Inverter	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
10	PLC	Yaskawa,Siemens,Mitsubishi, panasonic (option Brand)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Chain

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 60 working days after the down payment is received.
