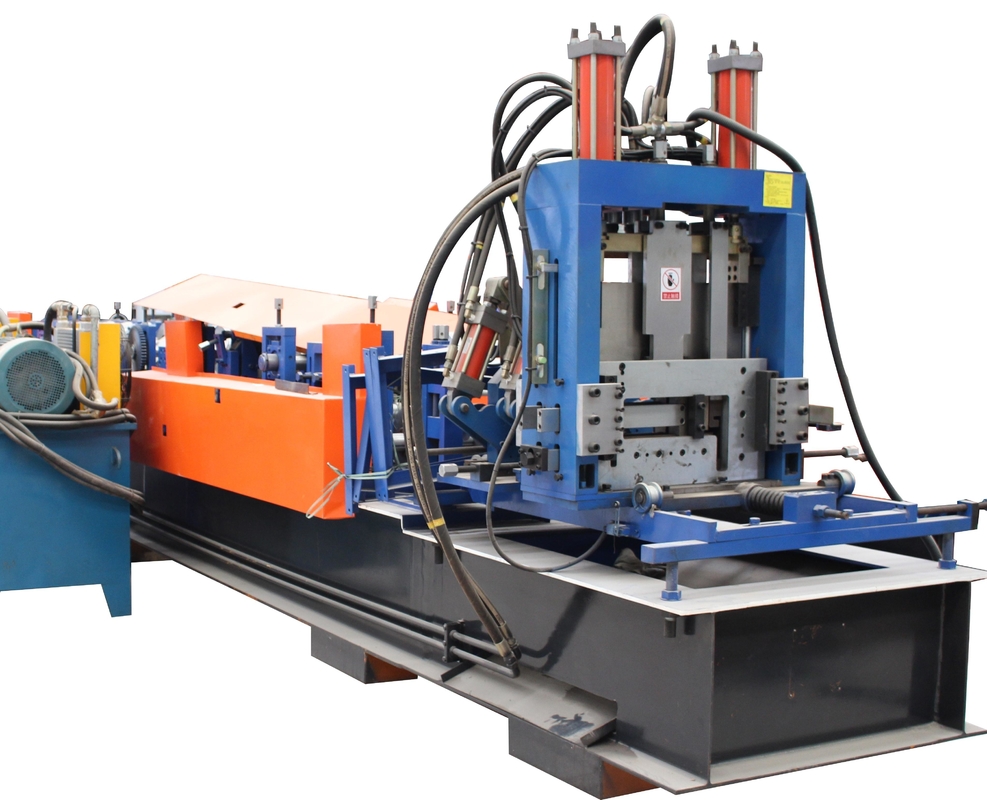

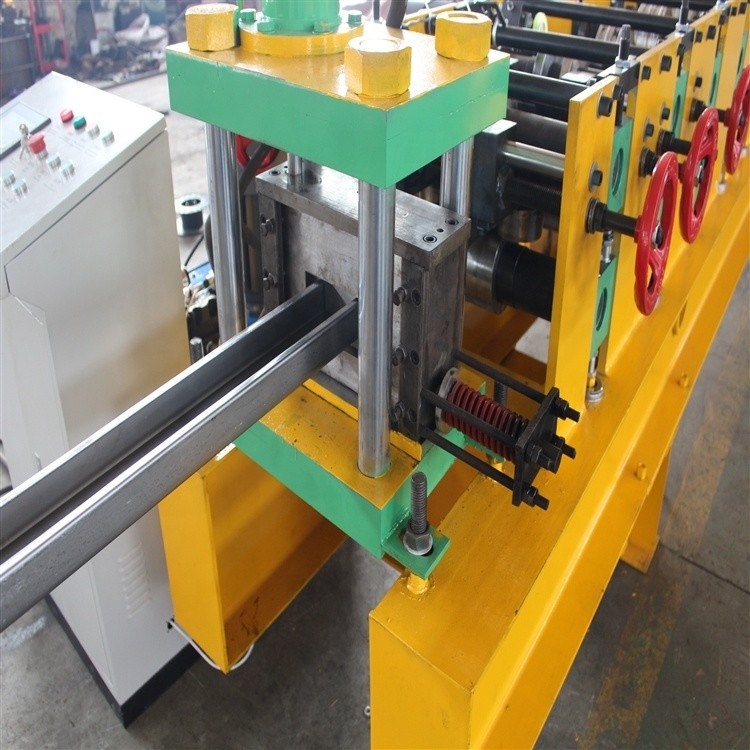

Lip Channel 1.5mm Galvalume Cz Purlin Roll Forming Machine

galvalume cz purlin roll forming machine

1.5mm cz purlin roll forming machine

lip channel purlin roll forming line

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Saluran C Liip Untuk Afrika Selatan

Bahan mentah:

Galvalum, Galvanis

Dimensi (P*L*T):

9500mm*1400mm* 1350mm

Ketebalan makan:

1.5-3.0mm

Berat:

Sekitar 5T

Pembentukan kecepatan:

12-24m/menit

Voltase:

380V/50Hz/3ph

Tenaga motor utama::

15kw

Menyoroti:

galvalume cz purlin roll forming machine

1.5mm cz purlin roll forming machine

lip channel purlin roll forming line

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

C Liip Channel Roll Forming Machine For South Africa

CZ channel changeable roll forming machine CAN produce two different type of shape purlin in one machine, C type purlin has good straightness and has good compression and bending resistance. Z type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased. with it high productive speed, it can help client save labor cost and save more space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Feeding Thickness	1.5-3.0mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	9500 mm1400 mm 1350mm
6	Machine Weight	About 5T
7	Electrical Control System	Panasonic PLC
8	Total Power	22 kw
9	Power Supply	380V/50HZ/3PH
10	Cutting Accuracy	±2 mm
11	Driving Mode	Single Chain 2 inch
12	Main Frame	400mm H-Beam

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
