Gearbox Driven 3mm Highway Guardrail Roll Forming Machine

3mm highway guardrail roll forming machine

gearbox highway guardrail roll forming machine

gearbox driven guardrail roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan pelanggan

Bahan roller:

Baja bermutu tinggi #45 dengan krom keras

Nama Produk:

2 Gelombang 3 Gelombang 3mm Pagar Pembatas Jalan Raya Mesin Roll Forming Cold Rolled Coil

Bahan mentah:

Kumparan canai dingin, koil canai panas, koil galvanis

Cutting Blade Material:

Cr12Mov dengan pendinginan HRC58-62°

Jaminan:

2 tahun

Jenis pemasaran:

Produk panas

Jenis ubin:

baja

Menyoroti:

3mm highway guardrail roll forming machine

gearbox highway guardrail roll forming machine

gearbox driven guardrail roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

50 hari

Syarat-syarat pembayaran

T/T, Serikat Barat, D/A, L/C

Menyediakan kemampuan

10 set per bulan

Produk terkait

Video

350Mpa Yield Strength Highway Guardrail Roll Forming Machine With 400H Beam Structure

Dapatkan Harga Terbaik

Video

Gcr15 Rollers Highway Guardrail Roll Forming Machine 350Mpa Yield Strength 380V 50Hz Power Supply

Dapatkan Harga Terbaik

Video

GI Highway Guardrail Roll Forming Machine With Cutting Blade Material Cr12Mov And Roller Diameter 80mm

Dapatkan Harga Terbaik

Video

GI Materials Highway Guardrail Roll Forming Machine With 380V 50Hz Power Supply And 350Mpa Yield Strength

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

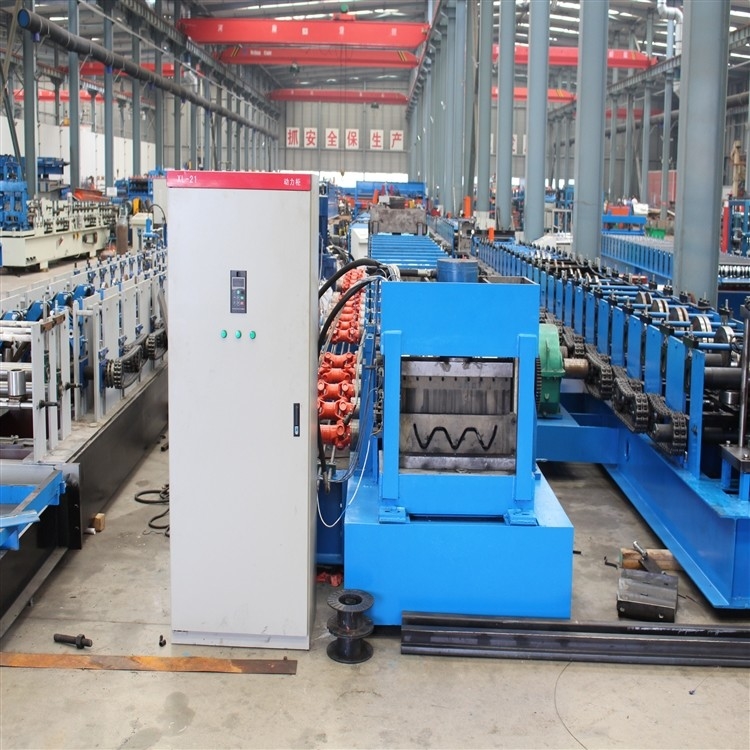

Highway Guardrail Roll Forming Machine With Gearbox Driven Highway Guard

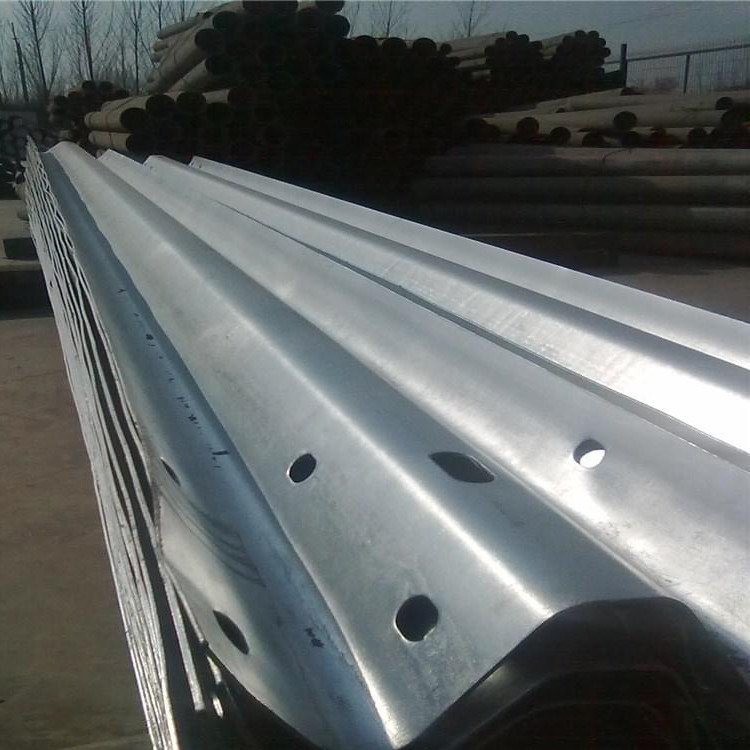

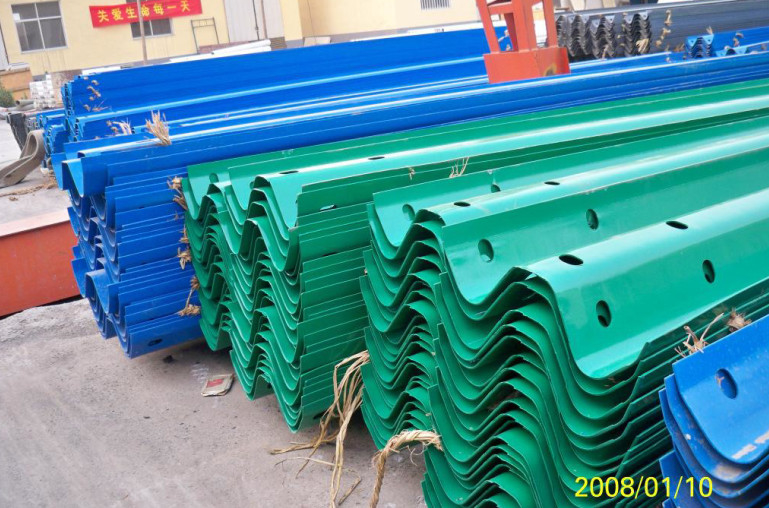

Highway guardrail forming machine is a guardrail machine used to produce highway industry, and the finished product is highway guardrail. It is mostly used in safety guardrails on highways, national roads, provincial roads, urban roads, rural roads and other motor vehicle lanes.

2.Equipment Detailed Parameters:

No
1	Suitable Material	Cold rolled coil, hot rolled coil, galvanized coil
2	Width of the raw material	480mm
3	Rows of rollers	15 rows
4	Total power	Main motor 22kwx2 Hydraulic station power 4kw
5	Thickness of raw material	2.5-3mm
6	Speed	10-12m/min
7	Diameter of shaft	￠116mm
8	Voltage	380V 50Hz 3phases
9	Big frame	400H steel
10	Middle plate	18mm

Gearbox Driven 3mm Highway Guardrail Roll Forming Machine 0

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
