Name: Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Bertemu Ubin / Ubin Mengkilap
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v

ppgi high speed roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Nomor model:

Bertemu Ubin / Ubin Mengkilap

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Rolling Molding Met / Glaze Tile USA Berkecepatan Tinggi

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium, Tembaga

Voltase:

380v

Menggunakan:

Panel atap

Jaminan:

1 tahun

Ketebalan Bahan:

0,25-0,8mm

Hidrolik Listrik:

4 kW

Akurasi pemotongan:

±2 mm

Menyoroti:

ppgi high speed roll forming machine

380v high speed roll forming machine

ppgi tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

35 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

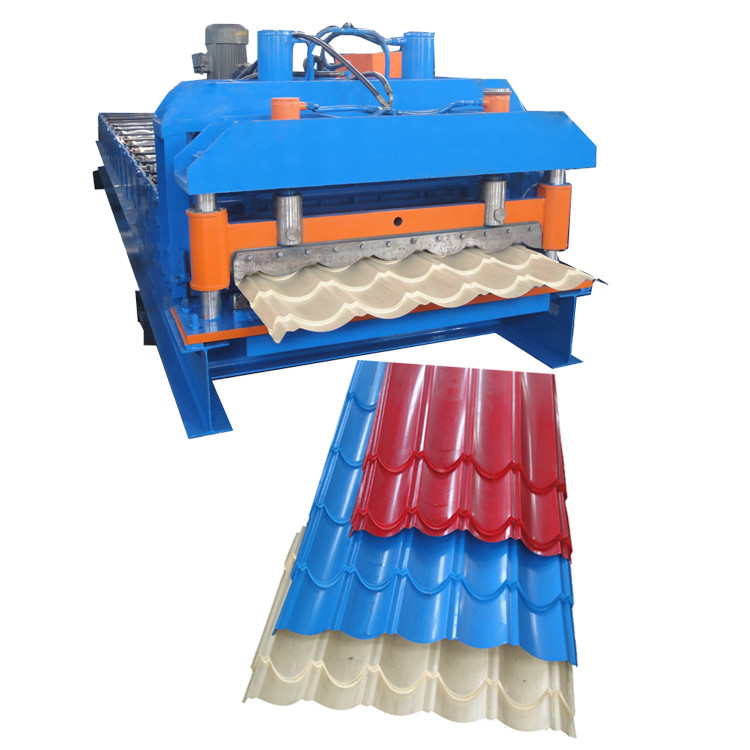

USA Met / Glaze Tile Rolling Molding Machine High Speed

Because Met-Tile is a panelized roofing system, installation requires a fraction of the time required by the installation of real ceramic tiles.

Met-Tile roofing panel provides the appearance of tile roofing with all the advantages and performance of metal. Met-Tile is lightweight, energy efficient and aesthetically attractive. A Met-Tile roof looks so much like tile, most people are surprised to learn that they are actually metal roof tiles.

Metal roof tiles with “steps” are rollformed using a rollforming machine from pre-painted steel and Galvanized steel. The Step Tile is formed using pre-painted steel and Galvanized steel.

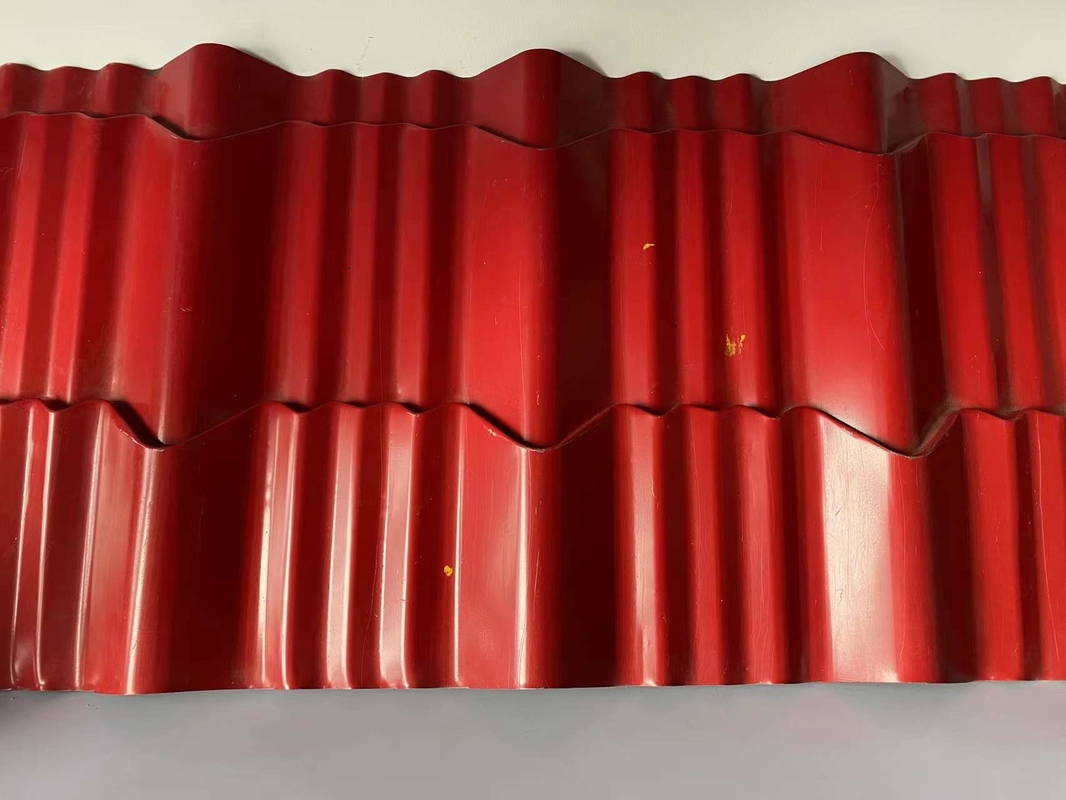

Profile

Glaze Tile Molding Ppgi High Speed Roll Forming Machine 380v 0

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15m/min
Main servo	5.5kw
Hydraulic Station Power	4 kw
Electrical Control System	PLC
Suitable Material	PPGI (235Mpa)
Material of Cutter	Cr12
Driving Mode	single chain 1 inch
Cutting accuracy	±2 mm
Power Supply	380 V, 60 HZ, 3 PHASES
Hydraulic Station Pressure	12.0 Mpa

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
