Rumah > Produk > Mesin Roll Forming Atap >

1.25'' Low Ribs Sheet Roof Roll Forming Machine Hydraulic System Plc

roof roll forming machine plc

1.25 inch roof roll forming machine

1.25" roofing sheet roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Sistem Hidraulik Mesin Roll Forming Lembar Atap Tulang Rusuk Rendah 1,25''

Menggunakan:

Panel Atap Dan Dinding

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Sistem Pengendalian:

PLC

Bahan mentah:

Lembaran PPGI/Galvanis

Bingkai utama:

baja 350 jam

Jenis pemotongan:

Pemotongan hidrolik

Akurasi pemotongan:

±2 mm

Menyoroti:

roof roll forming machine plc

1.25 inch roof roll forming machine

1.25" roofing sheet roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

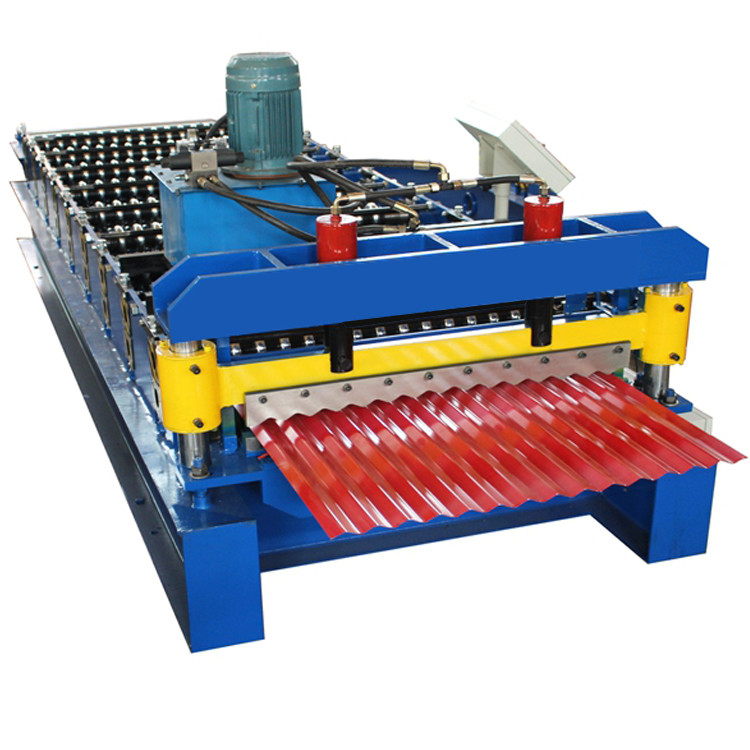

1.25'' Low Ribs Roofing Sheet Roll Forming Machine Hydraulic System

The lower corrugations of 1.25″ Corrugated make it primarily a wall panel – though it has been chosen on roofs with special consideration.

This machine is manufactured from high tensile steel and to the

strictest standards using high precision welding. The heavy duty,

high tensile steel, single columns are chromium plated for maximum life span.

1.25″ Corrugated is most popular in non-painted Galvalume or Galvanized finish, though painted finishes are available.

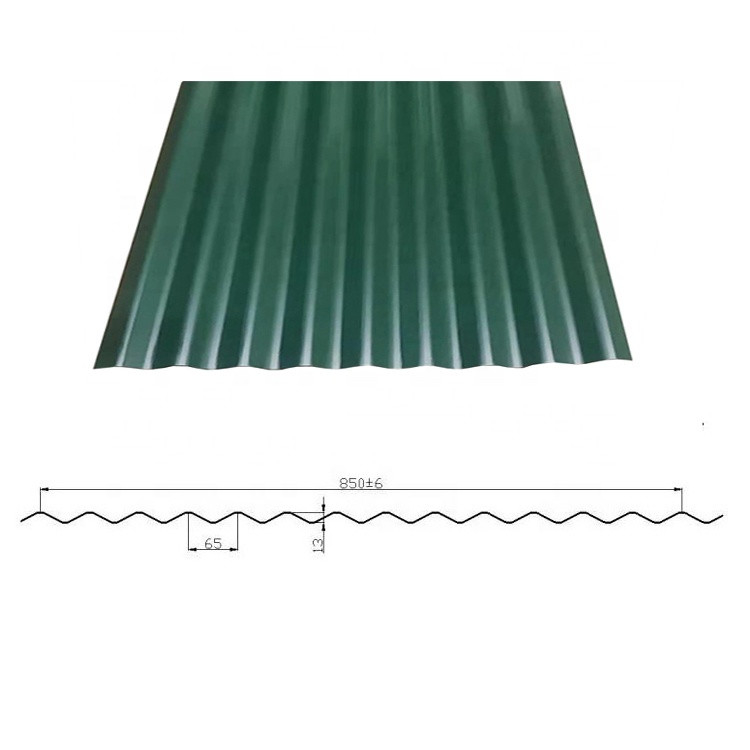

Profile
1.25'' Low Ribs Sheet Roof Roll Forming Machine Hydraulic System Plc 0

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15 m/min
Roller Stations	15 stations
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
