Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

0.3mm steel tile forming machine

galvalume steel tile forming machine

0.3mm roof tile roll former

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami
Minta Penawaran Harga
Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine
Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine
Detail Produk
Nama Produk:
Lini Produksi Mesin Roll Forming Lembaran Genteng Atap Logam
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium
Sistem kontrol:
PLC
Ketebalan bergulir::
0.3-0.8mm
Jenis ubin:
mesin roll forming / mesin bahan bangunan
Garansi komponen inti:
1 tahun
Warna:
Sesuai permintaan pelanggan
Kekuatan:
4KW
Lebar makan:
1220mm
Berat mesin:
4 T
Menyoroti:

0.3mm steel tile forming machine

,

galvalume steel tile forming machine

,

0.3mm roof tile roll former

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/C, T/T, D/A, D/P.
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

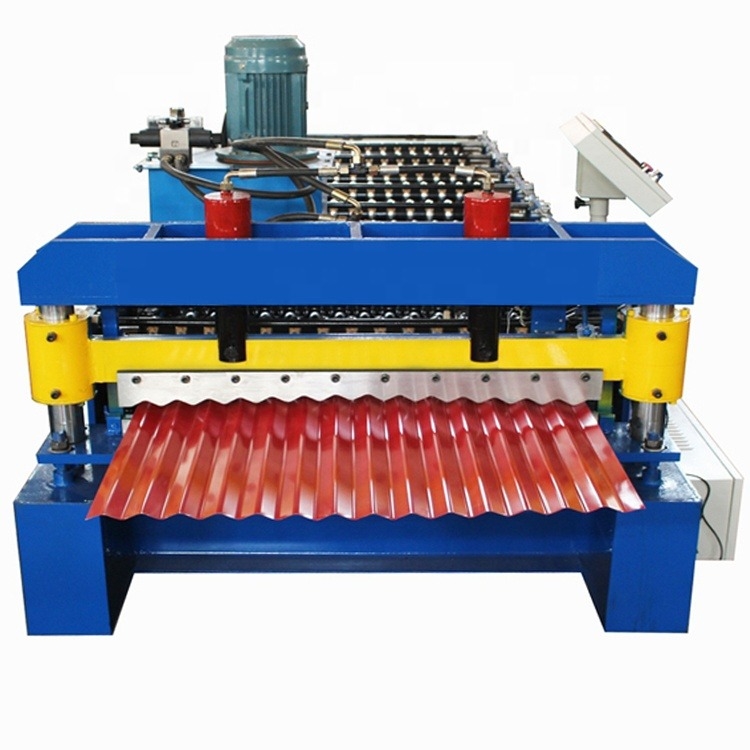

Corrugated Sheet Machine Corrugated Roofing Forming Machine

840 trapezoidal sheet roll forming machine popular sell in many countries. After rolling product width is 840mm, Material common is PPGI material, material thickness common between 0.2-0.8 mm

The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.

Specification
No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Rolling thickness 0.2-0.8mm
3 Working Speed 15-20m/min ( not including the cutting time)
4 Roller Station 12 Raws
5 Dimension (L*W*H) 58000 mm*1200 mm*1100 mm
6 Machine Weight 4500 KG
7 Electrical Control System Delta PLC (can be customized)
8 Drive Motor Power 4KW
9 Hydraulic Station Power 4KW
10 Power Supply 380V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 1 inch
13 Material of Shaft 70 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard
Details Advantages:
  • More beautiful outlook, and color of machine. The inner using 300H frame, which can make sure machine more favorable for the machine using for long time.
  • We can customized all your demands for you, such as voltage, color, logo, inner wheels, frame, Plc.....
  • We have been export machine to many countries, and familiar to many countries demands and market, which can give you more favorable suggestions. And more easy for you import the machine.
Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine 0
