Aluminum Plc Control 0.8mm Roof Roll Forming Machine

plc control roof roll forming machine

0.8mm roof roll forming machine

plc control tile roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Aluminum Plc Control 0.8mm Roof Roll Forming Machine

Detail Produk

Nama Produk:

Panel Lembaran Atap Aluminium Mesin Pembuat Roll Forming Kontrol Plc

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Jaminan:

1 tahun

Ketipisan bergulir:

0.3-0.8mm

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Tenaga Motorik:

4KW

Lebar makan:

1220mm

Ketebalan material:

0,25-0,8mm

Tekanan Stasiun Hidraulik:

12,0 Mpa

Menyoroti:

plc control roof roll forming machine

0.8mm roof roll forming machine

plc control tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

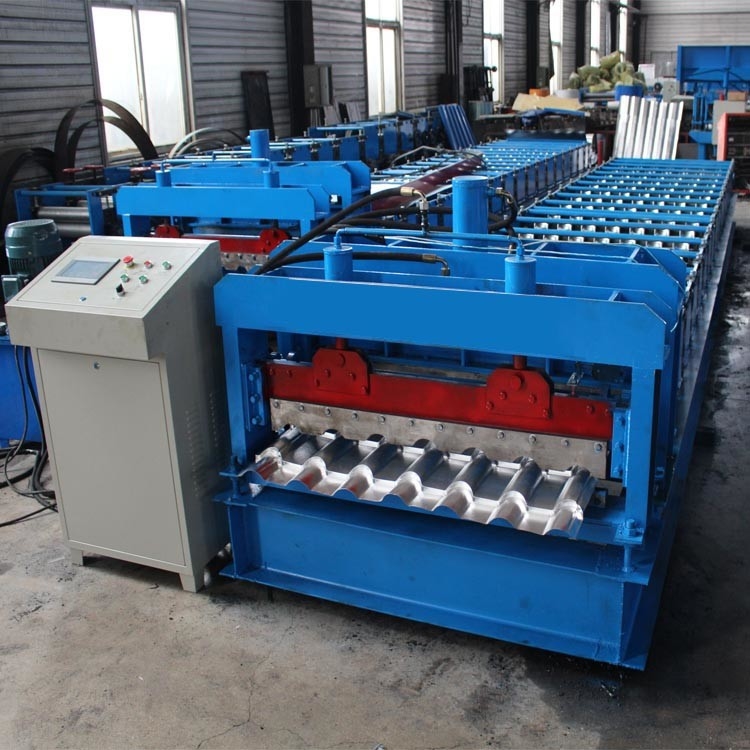

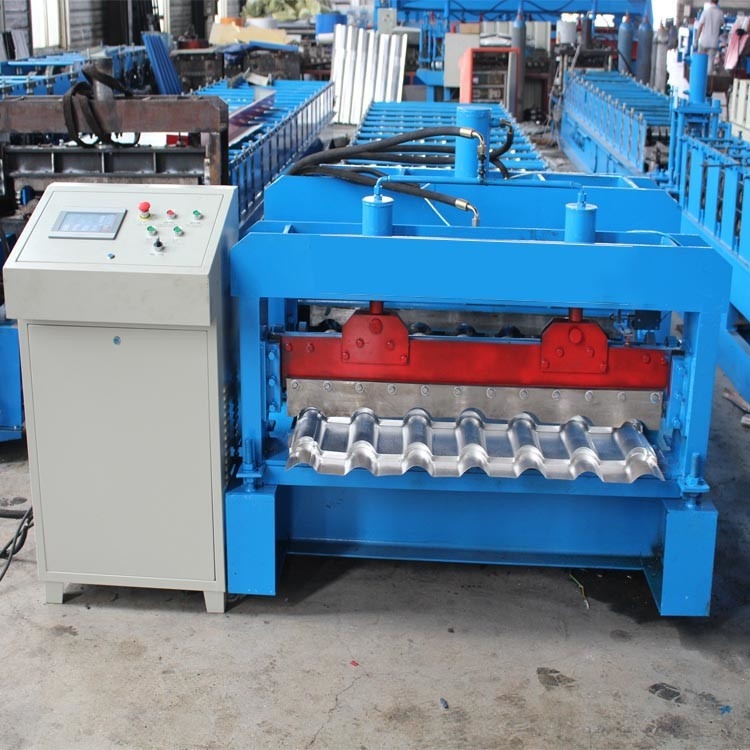

Aluminum Roofing Tile Sheet Panel Roll Forming Making Machine Plc Control

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability. This machine can be customized.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	8-30m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Electrical Control System	Delta PLC (can be customized)
6	Drive Motor Power	4KW
7	Hydraulic Station Power	4KW
8	Power Supply	380V, 50HZ, 3 PHASES(can be customized)
9	Cutting Accuracy	±2 mm
10	Driving Mode	Single Chain 1 inch
11	Material of Shaft	70 mm 45#steel forged
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Application
They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.

Packaging & Delivery

Important Components Wiped with Anti Rust Oil, Rollers and Shafters covered by foam film,Hydraulic station PLC control Box Spare parts and some small parts packed in plywood box,All Components Fixed by steel wire in Container.
