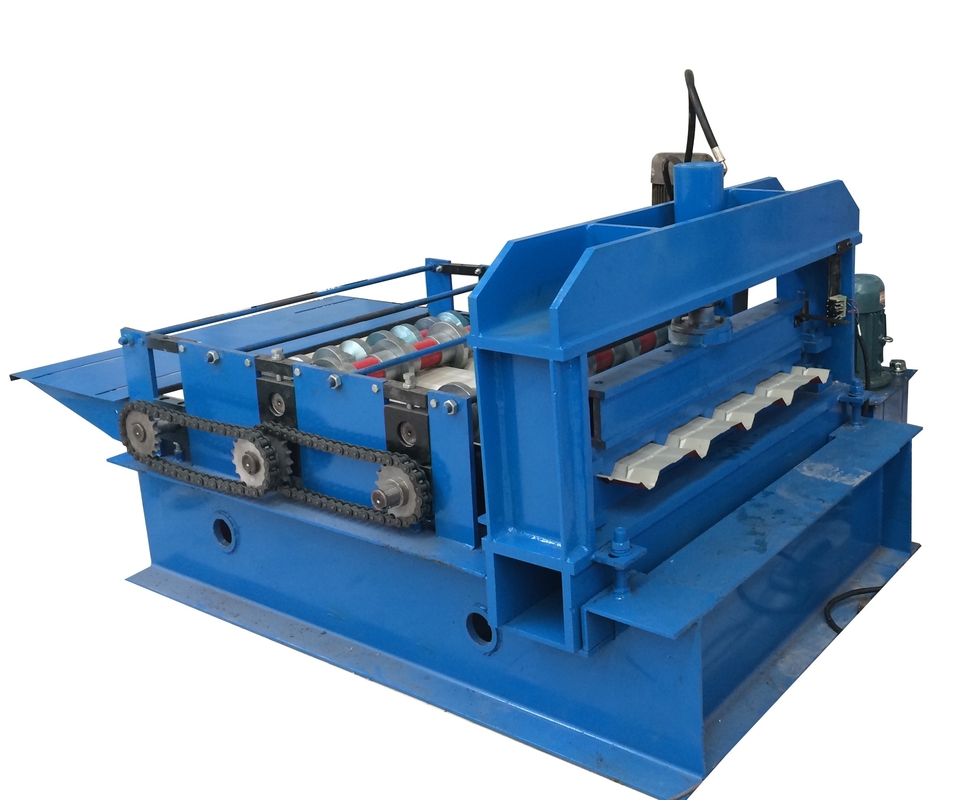

Hydraulic Crimping PPGI Roof Tile Roll Forming Machine For Curved Arch Sheet

ppgi roof tile roll forming machine

3ph roof tile roll forming machine

curved arch roof tile roll former

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Crimping Hidraulik Lembar Atap Lengkungan Melengkung

Bahan mentah:

Lembaran PPGI/Galvanis

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Dimensi (P*L*T):

1600*1200* 1350mm

Tenaga Motorik:

4KW

LEBAR BAHAN BAKU:

1000mm

Daya Stasiun Hidrolik:

4KW

Fitur:

Operasi yang mudah

Berat:

2500kg

Menyoroti:

ppgi roof tile roll forming machine

3ph roof tile roll forming machine

curved arch roof tile roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Hydraulic Crimping Roll Forming Machine Curved Arch Roof Sheet

This is a machine designed by our company to solve the water accumulation on the roof. This machine has changed the inefficiency of manual operation before adopting a modern high-efficiency fully automated PLC control system. Because its bending angle can be adjusted greatly and conveniently, the limitations of traditional production are changed.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	90deg per 4 min
4	Roller Station	3 Raws
5	Electrical Control System	Panasonic PLC
6	Motor power	4 KW
7	Hydraulic Station Power	4KW
8	Power Supply	380V/50HZ/3 PH
9	Cutting Accuracy	±2 mm
10	Driving Mode	Single Chain 1 inch
11	Material of Shaft	70 mm 45#steel forged
12	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The curved roofing sheet usually used in metal roof building system, when raining the curved roofing sheet can guiding the water from panel to floor.This kind of roof system can prevent hydrops effectively.

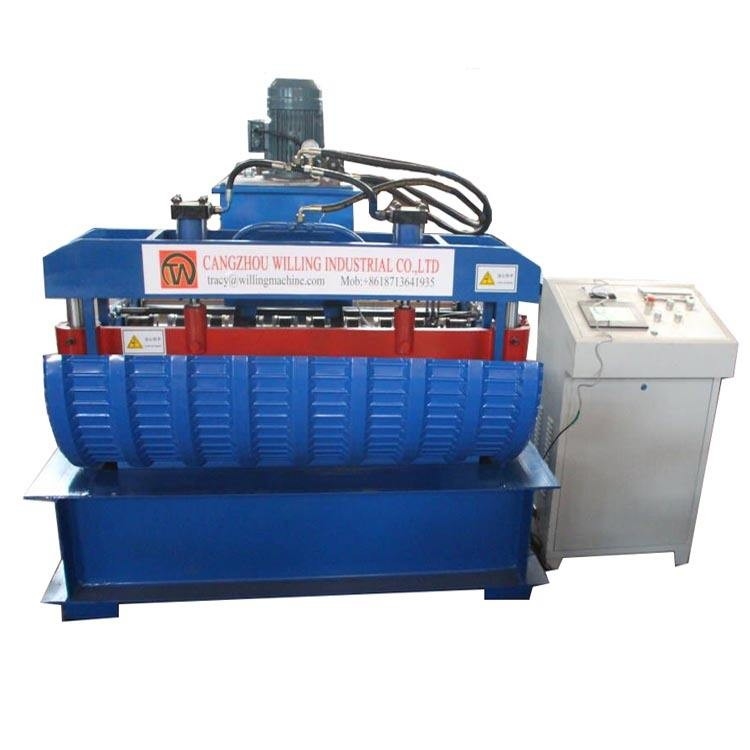

Main crimping machine

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Hydraulic Crimping PPGI Roof Tile Roll Forming Machine For Curved Arch Sheet 0
