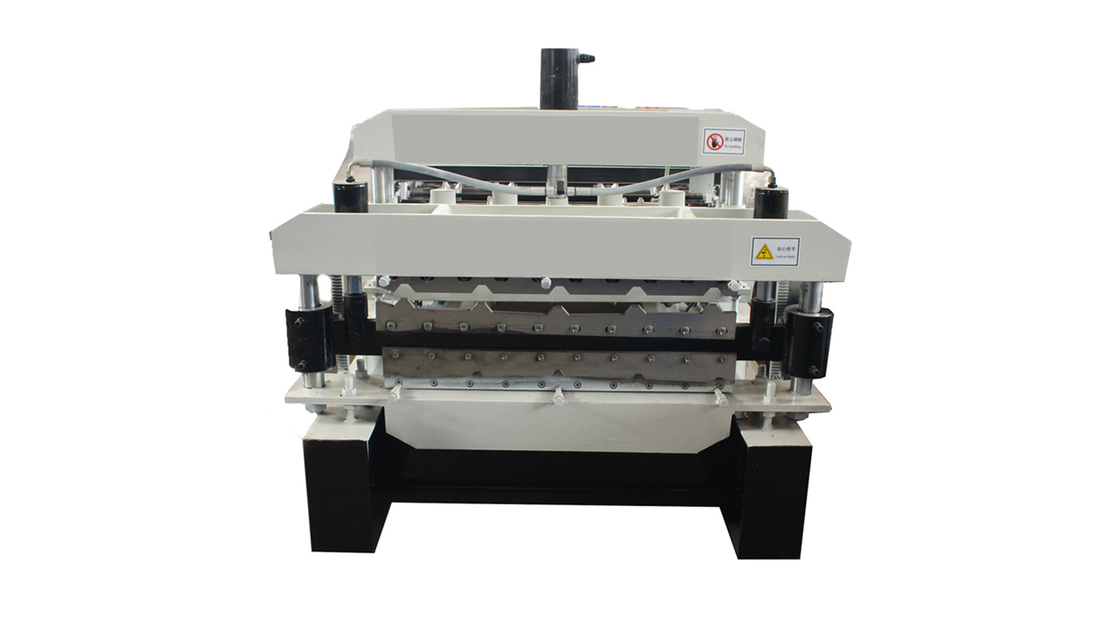

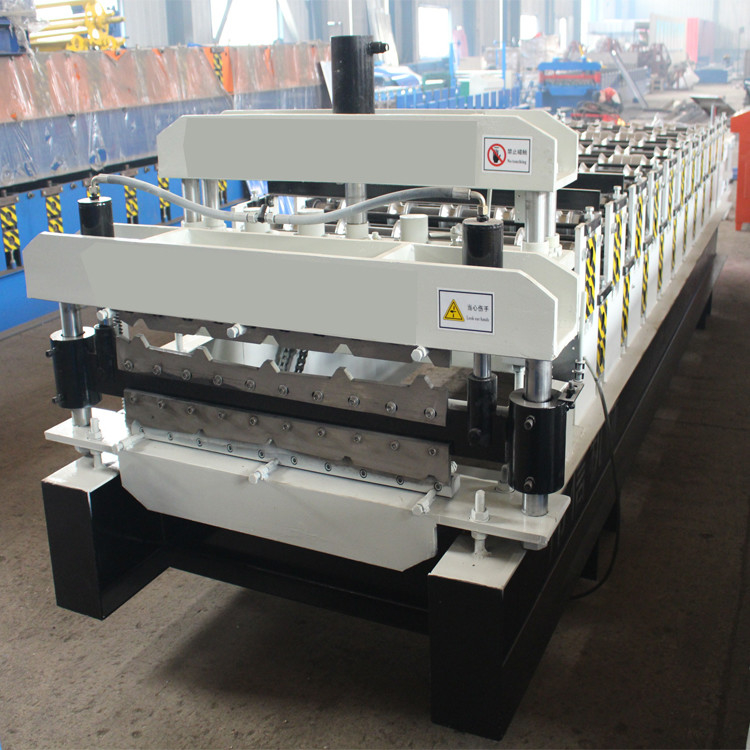

0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency

0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency

380v double layer roll forming machine

0.3mm double layer roll forming machine

corrugated double layer roofing sheet machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency
0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency 0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency
Detail Produk
Deskripsi produk:
Mesin Roll Forming Lembaran Atap Bergelombang Lapisan Ganda Efisiensi Tinggi
Ketebalan:
0.3-0.8mm
Bahan poros:
bahannya adalah baja tempa 45#
Dimensi (P*L*T):
6500*1200*1500mm
Sistem Pengendalian:
PLC
Kecepatan:
8-15m/mnt
Voltase:
380V 50HZ 3PH
Berat:
3500 kg
Menyoroti:

380v double layer roll forming machine

,

0.3mm double layer roll forming machine

,

corrugated double layer roofing sheet machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, L/C, D/A, D/P, T/T
Menyediakan kemampuan
35 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk
Double Layer Corrugated Roofing Sheet Metal Roll Forming Machine High Efficiency
This model machine can produce two different samples with fast speed and high quality,which can save more space and money than using two different machines.
These two samples also can be customized. Just send us your smaples, we will design and produce the double deck machine for you.Sincerely hope we can work with you to provide you with cost-effective products, and quality service.






Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Warranty of core components 1 Year
3 Rows of rollers 15 rows & 16 rows
4 Dimension 6500*1200*1500 mm
5
Cutting power

3kw
6
Main Motor Power
 3kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

 8-15m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
12 Middle plate 16mm



Application



The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The plate rolled by this machine has the characteristics of flatness, uniform corrugation and high utilization rate.



Advantage



Double-layer tile machine equipment adopts PLC control system. The operation is simple and easy to use. The double-layer laminated tile machine adopts advanced automatic control software.  In order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of maintenance, maintenance, mechanical debugging, and convenient mold replacement.



0.3mm Corrugated Roof 380v Double Layer Roll Forming Machine High Efficiency 0
