Name: Electric Shearing Ppgl Double Layer Forming Machine Trapezoid And Corrugated
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Electric Shearing Ppgl Double Layer Forming Machine Trapezoid And Corrugated

ppgl double layer forming machine

electric shearing double layer forming machine

ppgl corrugated roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Lapisan Ganda Geser Listrik Trapesium Dan Bergelombang

Layanan purna jual disediakan:

Insinyur tersedia untuk layanan

Bahan mentah:

GI, GL, PPGI, PPGL

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Kecepatan:

15-20m/mnt

Ketebalan:

0,25mm-0,8mm

Kekuatan:

3kw

Menyoroti:

ppgl double layer forming machine

electric shearing double layer forming machine

ppgl corrugated roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

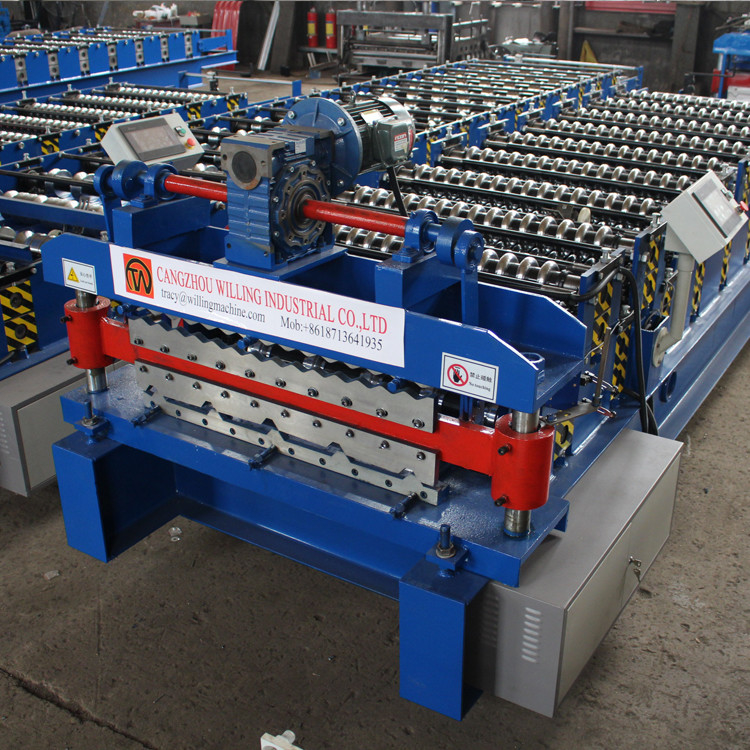

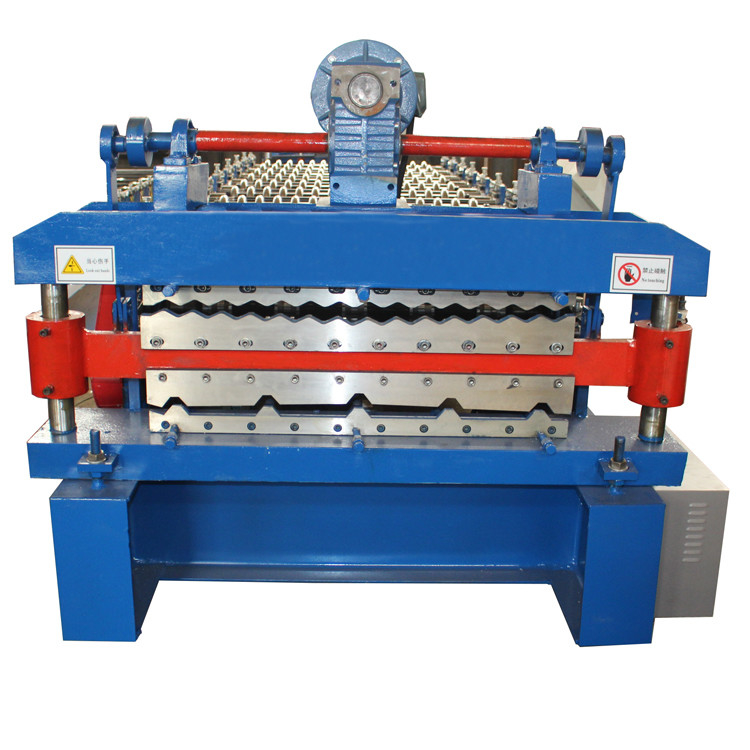

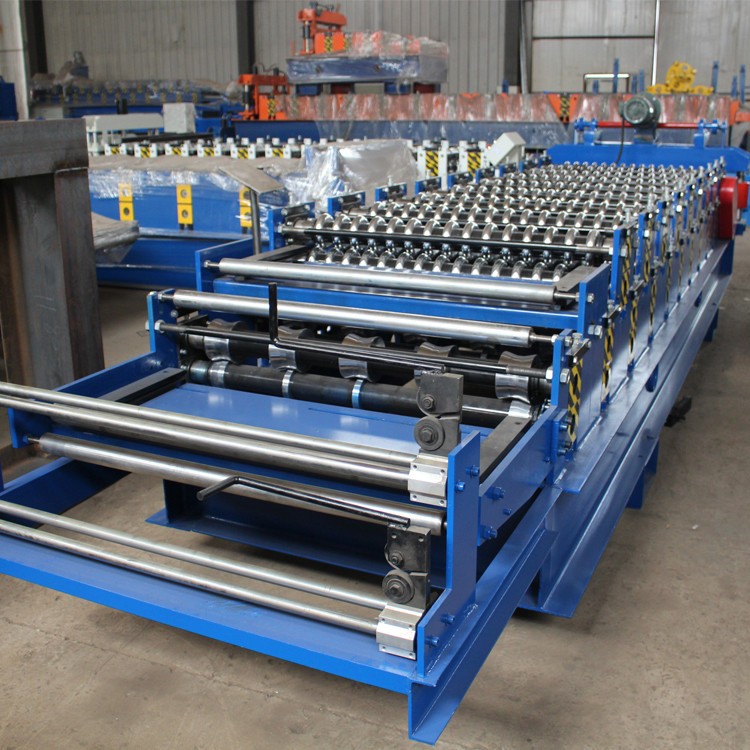

Electric Shearing Double Layer Roll Forming Machine Trapezoid And Corrugated

Electric Shearing Double Layer Roll Forming Machine can press two types of sheets. The advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two Single board computer.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.25-0.8mm
3	Working Speed	15-20/min
4	Roller Station	18/16 Raws
5	Dimension (LWH)	8500 mm1200 mm1200 mm
6	Machine Weight	4800 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Electric Shearing Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This two type sheet is the common used roof tiles, widely use in wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc.

Advantage

this mahcine suitable for many type raw materials like GI, GL, PPGI, PPGL, aluminum plate, etc. due to it have the function of anti-corrosion and acid resistance so the service life is 10-15 years , It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance , Fireproof, rainproof and long service life ect.
