0.9mm Trapezoidal Ppgi Ibr Roofing Sheet Making Machine Hydraulic

ppgi ibr roofing sheet making machine

0.9mm ibr roofing sheet making machine

ppgi ibr roof sheet forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Atap Trapesium IBR Hidrolik

Bahan mentah:

PL,GL,PPGL, PPGI

Kecepatan kerja:

16-20m per menit

Ketebalan material:

0,25 mm - 0,9 mm

Voltase:

380V 60Hz 3 fase

Kondisi:

Baru

Menggerakkan tenaga motor:

4KW

Tenaga Geser Listrik:

4KW

Bahan roller:

45 # Berlapis Baja

Komponen inti:

Motor, Bantalan, Roda Gigi, Pompa, Mesin, PLC

Menyoroti:

ppgi ibr roofing sheet making machine

0.9mm ibr roofing sheet making machine

ppgi ibr roof sheet forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

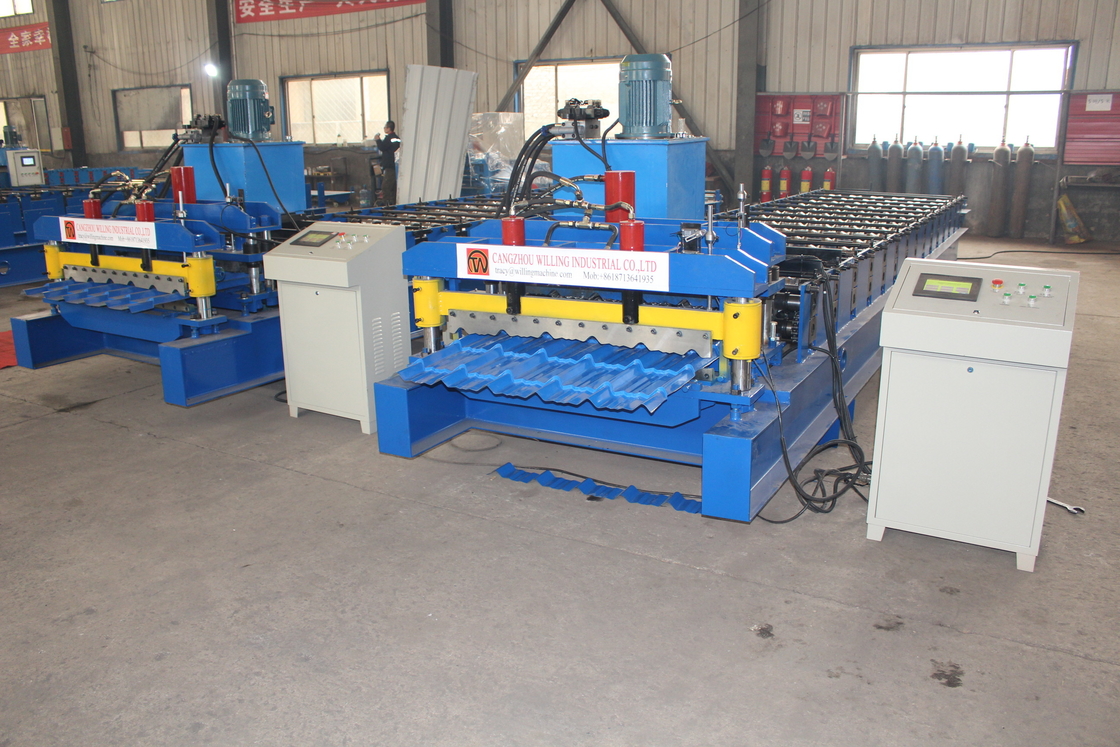

IBR Trapezoid Roofing Sheet Making Machine Hydraulic

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate.
The equipment automatically set in accordance with the computer data to produce different lengths of finished products.
For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.

Specification

No.	Item	Description
1	Coil	PL,GL,PPGI,PPGL
2	Raw Material Thickness	0.25 mm - 0.9 mm
3	Working Speed	15-20 m/min
4	Roller Station	15 Stations
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	4 KW
9	Electric Shear Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

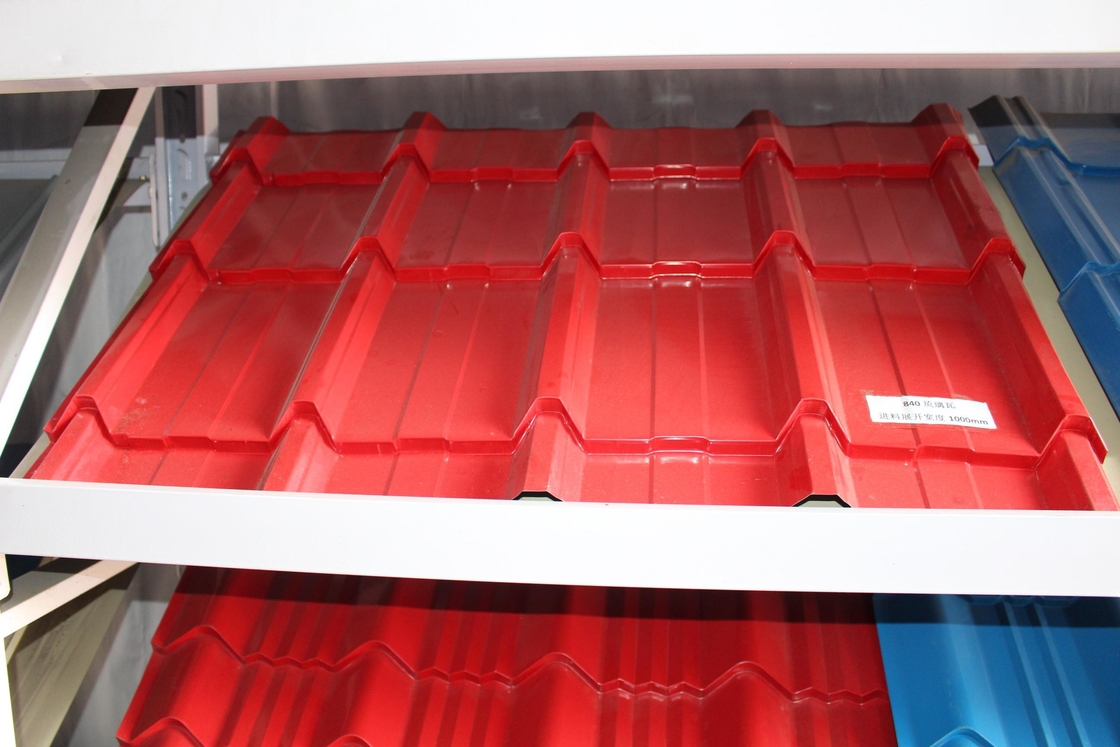

The machine is used to construct external roofing & wall panels of houses & interior panels or ceilings to enhance the appearance of the roof or walls,And durability.

Advantage
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers
