Rumah > Produk > Mesin Roll Forming Atap >
Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control

roof roll forming machine plc control

50hz roof roll forming machine

plc ibr roof sheet forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan tunggal

Hubungi Kami
Minta Penawaran Harga
Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control
Detail Produk
Nama Produk:
Mesin Roll Forming Ubin Atap IBR Geser Listrik Kontrol PLC
Bahan mentah:
PL,GL,PPGL, PPGI
Kecepatan kerja:
16-20m per menit
Ketebalan material:
0,25 mm - 0,9 mm
Voltase:
380V 50Hz 3Phase
Kondisi:
Baru
Menggerakkan tenaga motor:
4KW
Tenaga Geser Listrik:
4KW
Menyoroti:

roof roll forming machine plc control

,

50hz roof roll forming machine

,

plc ibr roof sheet forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

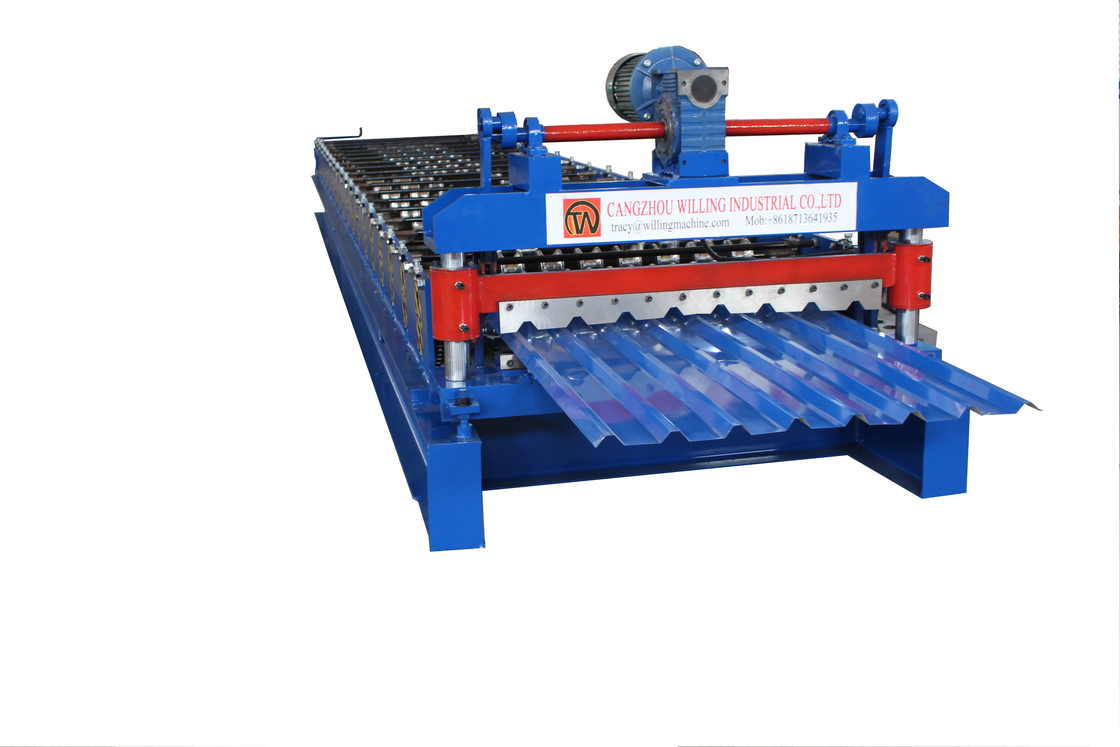

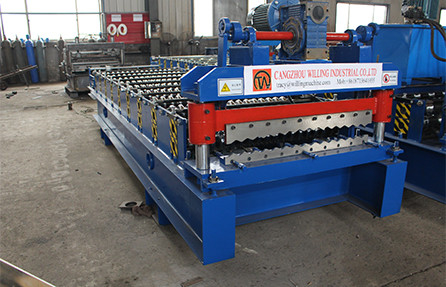

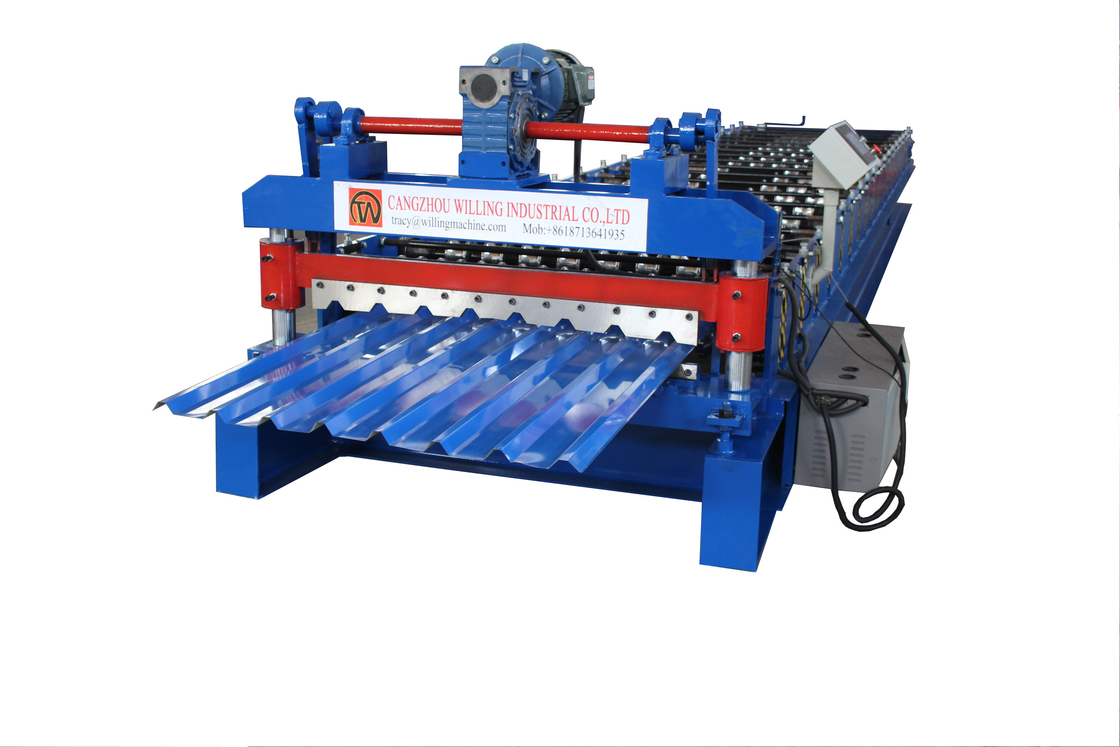

Electric Shear IBR Roof Tiles Roll Forming Machine PLC Control



The PLC control of the electric shearing machine IBR forming machine is a mechanical equipment that uses modern PLC control technology to realize programmed and automated production. The full-automatic tile press can be installed and used separately, or it can be equipped with automatic uncoiler, automatic packaging machine and other production lines.



Specification



No. Item Description
1 Coil PL,GL,PPGI,PPGL
2 Raw Material Thickness 0.25 mm - 0.9 mm
3 Working Speed 15-20 m/min
4 Roller Station 15 Stations
5

Dimension (L*W*H)

 4500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 4 KW
9

Electric Shear Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 1 mm
12

Driving Mode

Gear Wheel
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard


Application


This product is widely used in many fields. For example, in factories, warehouses, stadiums, exhibition halls, theaters, laboratories, and prefabricated houses, color steel plates have the advantages of simple installation, durability, long life, corrosion resistance, and good appearance, so they are also widely used in the chemical construction industry.

Advantage



Our roll forming machine consists of the following parts: decoiler, color steel tile press main body, PLC computer control system, automatic post-cutting system and receiving table.
The entire unit is automatically controlled, which can effectively save the need for manpower, thereby reducing production costs for customers





Electric Shear Ibr Tiles 50Hz Roof Roll Forming Machine Plc Control 0
