1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine

1mm roller shutter door roll forming machine

delta roller shutter door roll forming machine

delta roller shutter machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Roll Forming Pintu Rana Rol Baja Galvanis

Bahan mentah:

Galvalum, Galvanis, PPGI

Bertenaga motor:

4KW

Daya Stasiun Hidrolik:

4KW

Voltase:

380V 50Hz 3Phase

Bahan poros utama:

Pemesinan finishing baja 45# dan kemudian kendur

Tekanan stasiun hidrolik:

12,0 Mpa

Sistem Kontrol Listrik:

PLC DELTA

Menyoroti:

1mm roller shutter door roll forming machine

delta roller shutter door roll forming machine

delta roller shutter machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

Steel Roller Shutter Door Roll Forming Making Machine Galvanized

Rolling shutter door forming machine is made by cold bending forming process.It uses less steel to complete the specified load that needs to be achieved. It does not rely on increasing the use of plates or improving materials. Mechanical properties to meet load requirements.

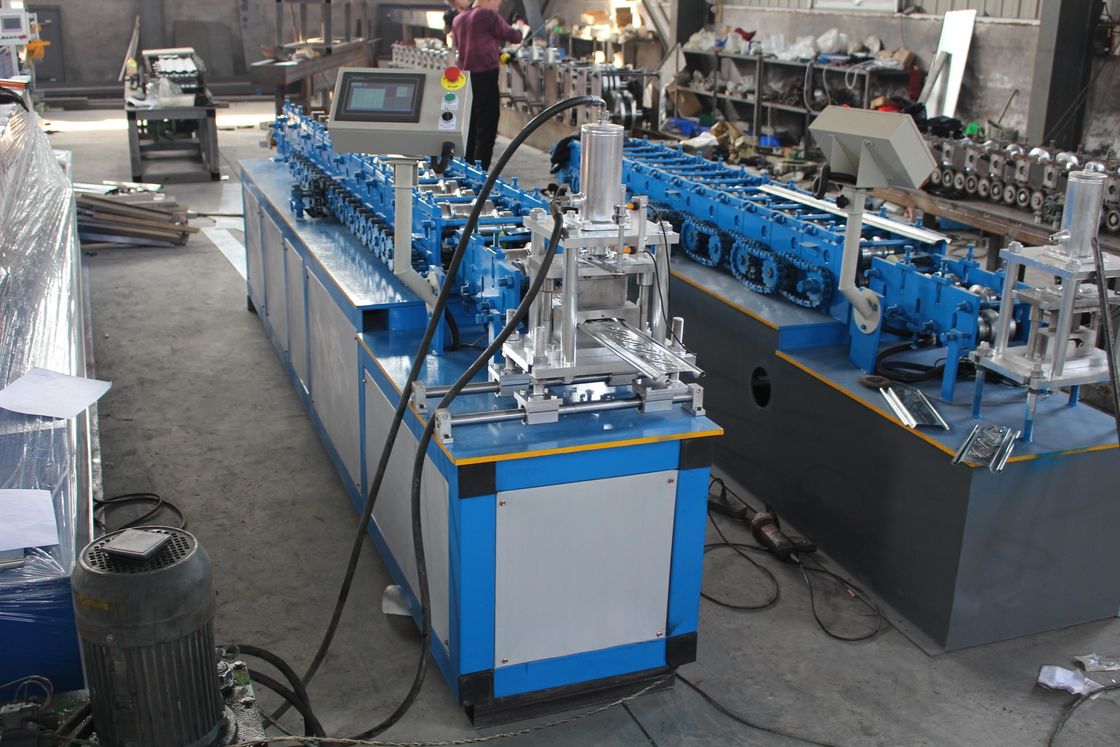

This perforated steel rolling shutter slat roll forming machine consists a manual decoiler, a roll fomer, transmission system, a punching tool is optional for punching slots on some types of steel roller shutter slats, a cutting tool (both a hydraulic cutter and a fly-saw cutter is available), a PLC control cabinet, a hydraulic oil pump will be equipment for hydraulic cutting tool and runout tables.

The shutter door is a series of multi-joint movable doors, in a fixed slideway, the door is rotated up and down with the reel above the door as the center. It is generally installed at a location where it is inconvenient to use wall separation. Rolling shutter doors are suitable for commercial facades, garages, factories and mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the ground door has a convenient and quick opening effect.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.8mm - 1.0 mm
3	Working Speed	20-30 m/min
4	Roller Station	12 Stations
6	Machine Weight	4 tons
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4 KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2 mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

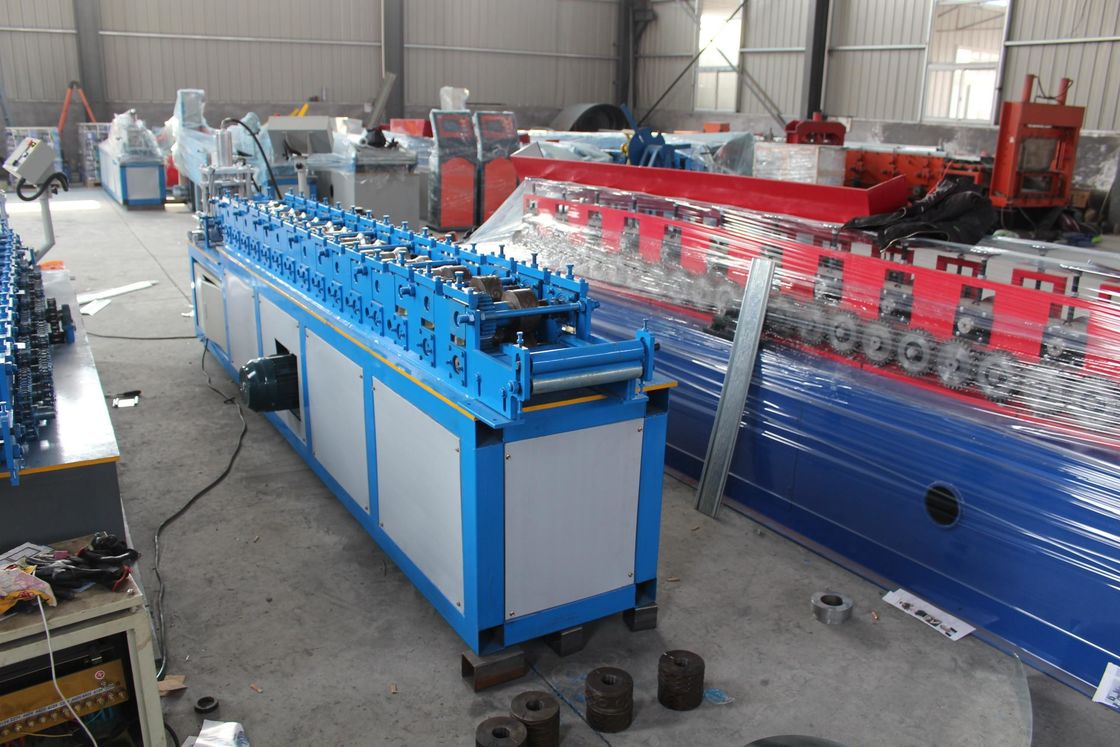

1mm Steel Galvanized Delta Roller Shutter Door Roll Forming Machine 0
