High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears

High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears

high accuracy automatic rolling shutter machine

automatic rolling shutter machine hydraulic shears

ppgi shutter door machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

pintu bawah

Hubungi Kami
Minta Penawaran Harga
High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears
High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears
Detail Produk
Nama Produk:
Mesin Roll Forming Bawah Pintu Rana Akurasi Tinggi Gunting Hidraulik
Bahan mentah:
PPGI,GI,PPGL GL
Kecepatan kerja:
10-15m/mnt
Ketebalan material:
0,3 mm - 0,8 mm
Voltase:
380V 50Hz 3Phase
Akurasi pemotongan:
± 1 mm
Menggerakkan tenaga motor:
5 kW
Daya Stasiun Hidrolik:
5 kW
Menyoroti:

high accuracy automatic rolling shutter machine

,

automatic rolling shutter machine hydraulic shears

,

ppgi shutter door machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

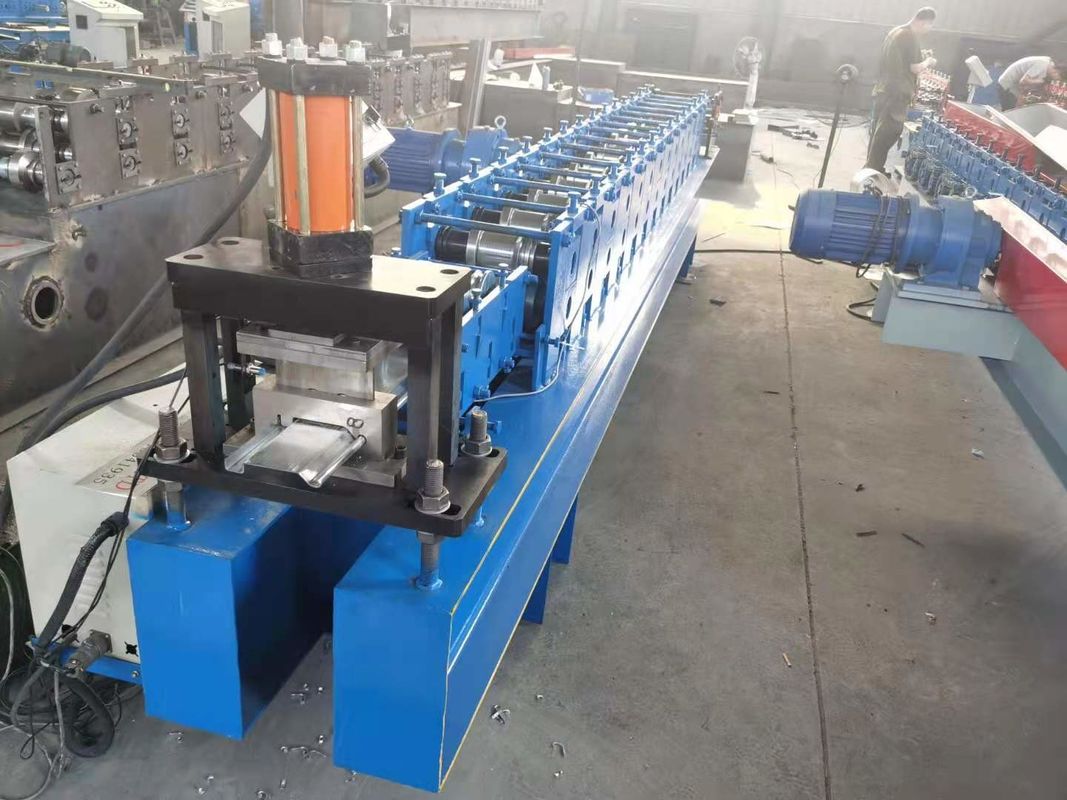

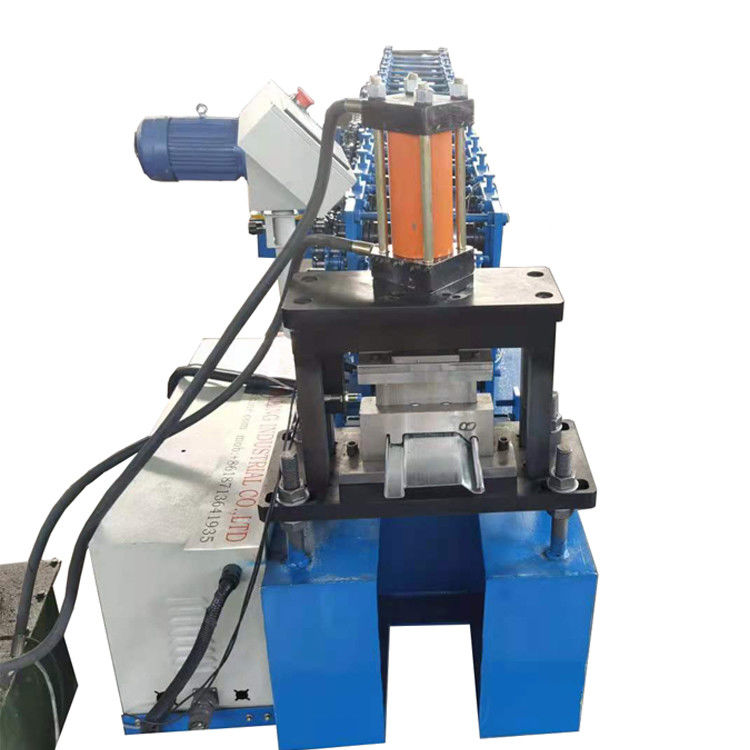

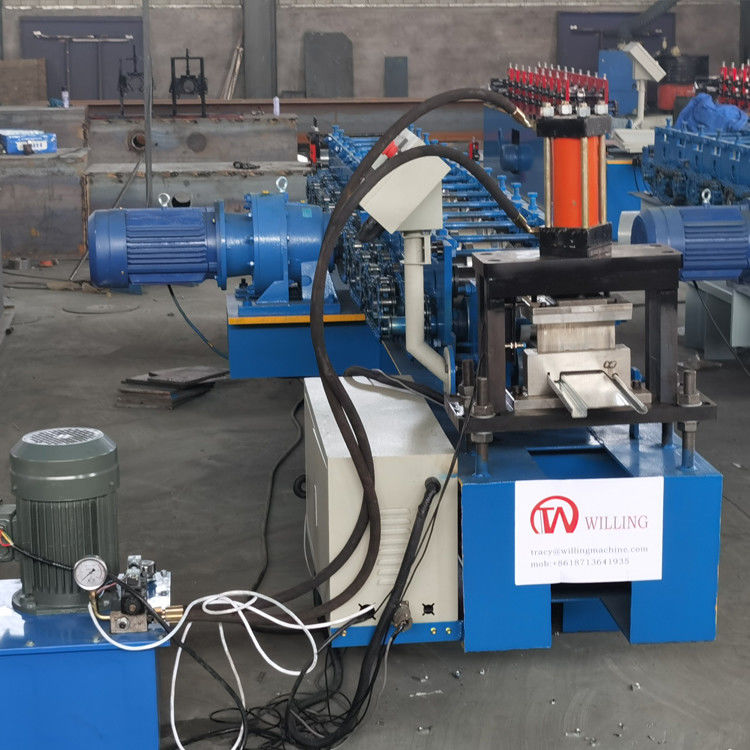

High Accuracy Shutter Door Bottom Roll Forming Machine Hydraulic Shears



The steel door bottom forming machine is controlled by the PLC control system to realize fully automatic operation. The machine language can be customized according to customer requirements. the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.





Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.25 mm - 0.9 mm
3 Working Speed 10-15 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

 5500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 5 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 1 mm
12

Driving Mode

Gear Wheel
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



The rolling shutter door bottom forming machine is used in conjunction with the rolling shutter door strip forming machine. The finished product is widely used in the production of various doors, such as garage doors, fire-proof rolling shutter doors and the area isolation of medicine, food, electronics, clean plants, cigarettes, printing, textiles, supermarkets and other light industrial plants.


Advantage



The rolling door produced by this equipment can effectively isolate temperature, heat, insects, noise, and odor, and play a blocking role in the room, reduce energy consumption, and keep the indoor working environment clean. At the same time, the size of the door can be adjusted according to the installation size on site. Windows can be added to increase indoor lighting and transparency.






 High Accuracy PPGI Automatic Rolling Shutter Machine Hydraulic Shears 0
