3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated

3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated

0.25mm double layer roll forming machine

3ph glazed tile roll forming machine

glazed double layer roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated
3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated 3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated 3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated
Detail Produk
Deskripsi produk:
Mesin Roll Forming Baja Warna Lapisan Ganda Ubin Mengkilap Dan Bergelombang
Ketebalan:
0,25-0,8mm
Bahan poros:
bahannya adalah baja tempa 45#
Dimensi (P*L*T):
9500*1550*1500mm
Sistem Pengendalian:
PLC
Kecepatan:
8-15m/mnt
Voltase:
380V 50HZ 3PH
Berat:
6.5T
Menyoroti:

0.25mm double layer roll forming machine

,

3ph glazed tile roll forming machine

,

glazed double layer roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
35 set per bulan
Produk terkait
Harga bagus 2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine on line Video

2025 factory best price Trapezoidal and glazed Double Layer Roof sheet Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory priceDouble Layer Roof sheetForming Machine on line Video

2025 factory priceDouble Layer Roof sheetForming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 factory price Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

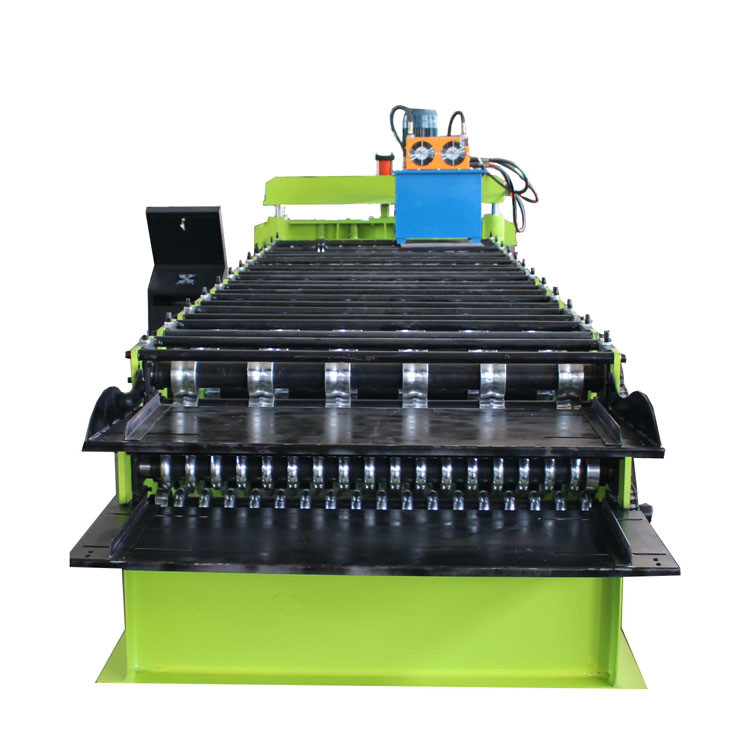

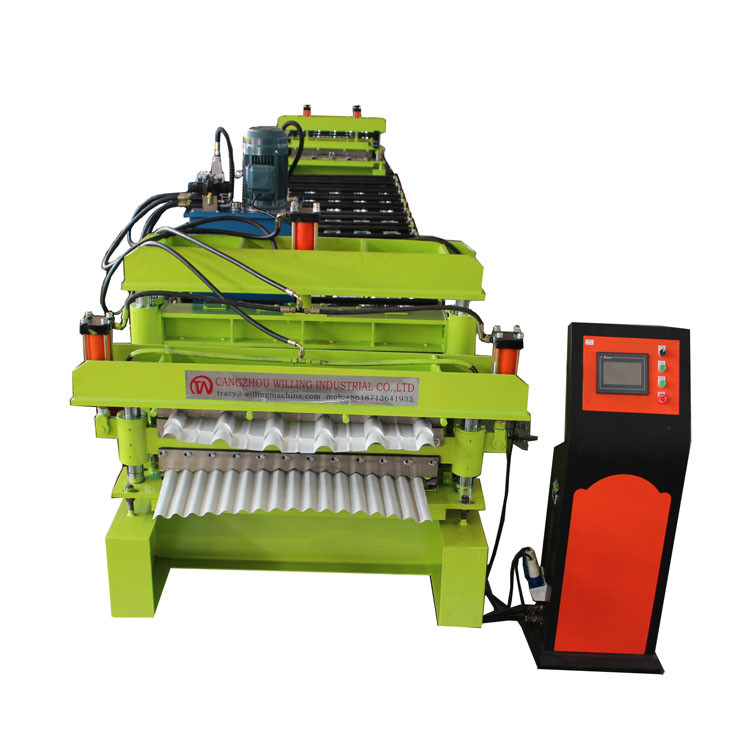

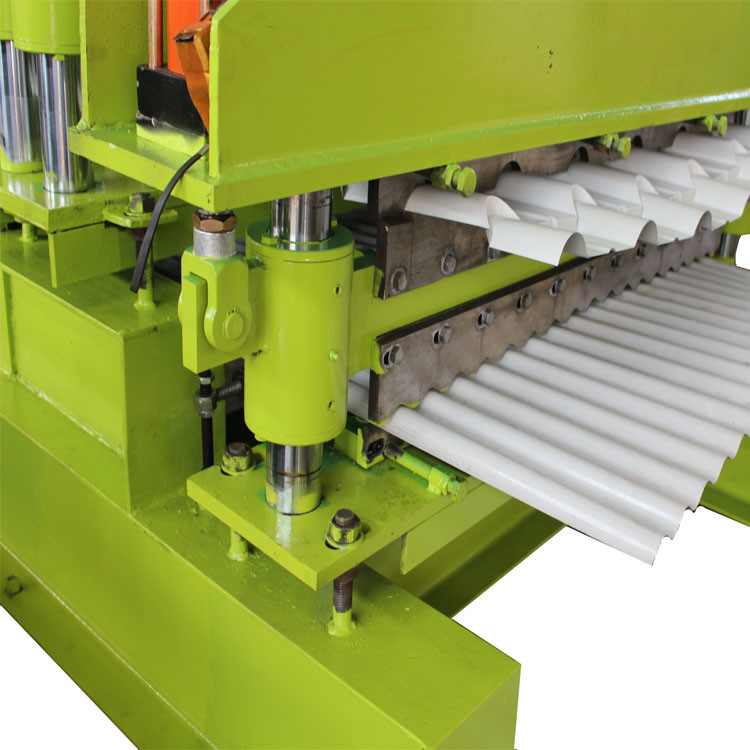

Double Layer Color Steel Roll Forming Machine Glazed Tile And Corrugated


 The double-layer roof roll forming machine can make glazed and corrugated type in one machine, which can save more space and money than using two different machines.




Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Width of the raw material 1250mm
3 Rows of rollers 15 rows & 16 rows
4 Dimension 7300*1550*1200mm
5

Main servo

7.5kw
6 Hydraulic station power 11kw
7 Thickness of raw material 0.25-0.8mm

8

Productivity

 8-15m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The plate rolled by this machine has the characteristics of flatness, uniform corrugation and high utilization rate.



Advantage



Double-layer tile machine equipment adopts PLC control system. The operation is simple and easy to use. The double-layer laminated tile machine adopts advanced automatic control software. Realize production information management. In order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of maintenance, maintenance, mechanical debugging, and convenient mold replacement.



3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated 0
