Ibr Roof 0.8mm Sheet Roll Forming Machine Double Deck Full Automatic

0.8mm sheet roll forming machine

ibr sheet roll forming machine

0.8mm double layer roll forming machine

Tempat asal:

CINA

Nama merek:

FMS

Sertifikasi:

CE,ISO

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin roll forming terpal atap IBR otomatis penuh dengan dek ganda

Voltase:

380V 50Hz 3Phase

Berat:

5.5kg

Nilai jual utama:

Mudah dioperasikan

Ketebalan material:

0,25-0,8mm

Sistem Pengendalian:

PCL

Bahan poros utama:

45 baja ditempa

Daya Motor Utama:

5.5kw

Menyoroti:

0.8mm sheet roll forming machine

ibr sheet roll forming machine

0.8mm double layer roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

Negoiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik

Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

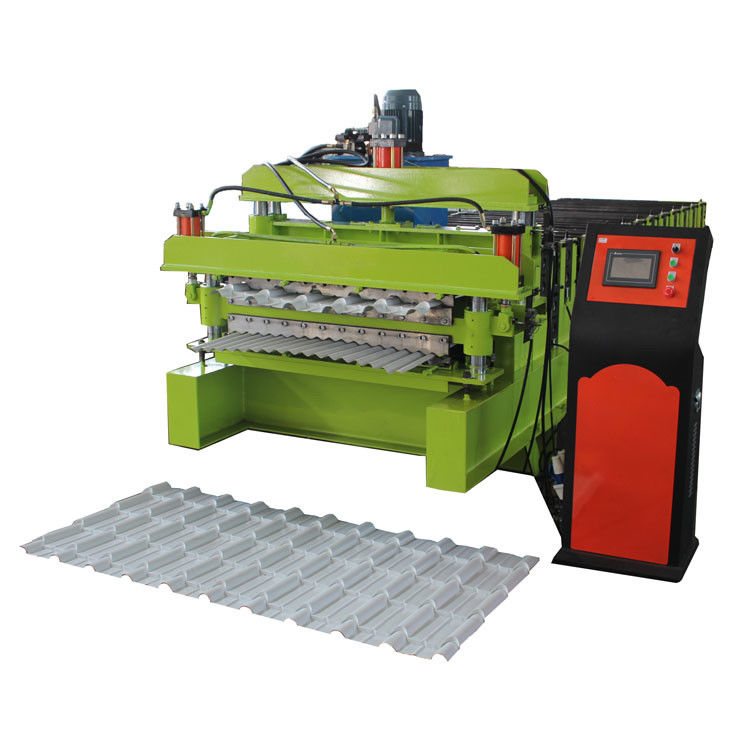

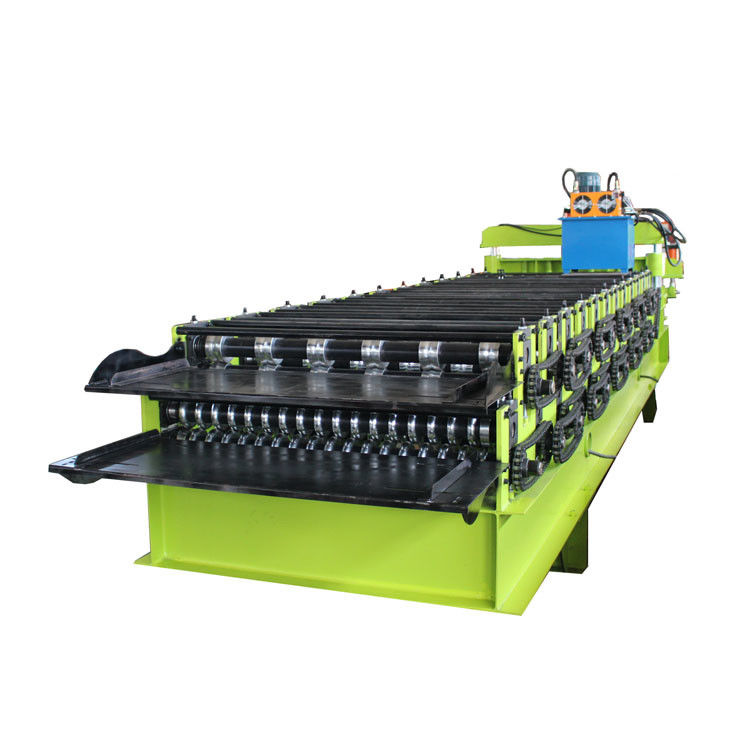

Full automatic IBR roof sheeting roll forming machine with double deck

One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.

We can design the machine according to your specification and profile drawing.

This roll forming machine can rollform metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. This type of roof sheet has advantage including beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

Specification

Material Thickness	0.25-0.8 mm
Working Speed	8-15 m/min
Roller Stations	13/15
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	5.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch
