Double Rows PLC Door Frame Roll Forming Machine Safe Reliable

plc door frame roll forming machine

3phases door frame roll forming machine

double rows door frame making machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

mesin roll forming kusen pintu baris ganda aman dan andal

Bahan rol::

3kw

Kecepatan kerja:

10 m/mnt - 15 m/mnt Kecepatan Tinggi

Tenaga Motorik:

3kw

Catu daya:

380V 60Hz 3 fase

Garansi komponen inti:

1 tahun

Sistem Kontrol Listrik:

PLC DELTA

Tekanan stasiun hidrolik:

12,0 Mpa

Akurasi pemotongan:

±2 mm

Metode mengemudi:

Transmisi gigi & rantai

Menyoroti:

plc door frame roll forming machine

3phases door frame roll forming machine

double rows door frame making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 20'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik

Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik

Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m0.95m1.2m Size

Dapatkan Harga Terbaik

Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Double rows door frame roll forming machine safe and reliable

In Door Frame Roll Forming Machine, we have many types like drywall interlock type, welded type with corner v bending and others. For the door frame machine, we could make fully automatic like punching holes and bending, all could be done fully automatic.

The machine version can be customized according to customer requirements.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized
2	Raw Material Thickness	0.3 mm - 0.8 mm
3	Working Speed	10-15 m/min
4	Roller Station	12 Stations
5	Dimension (LWH)	5500 mm800 mm1200 mm
7	Electrical Control System	PLC
8	Drive Motor Power	5 KW
9	Hydraulic Station Power	5 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	± 2mm
12	Driving Mode	Gear Wheel
13	Material of Shaft	60 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground.

Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.

Advantage

The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. The surface is treated with special electrophoresis, which has unlimited luster, is not easy to stick to dust, is not corroded by polluted gases, and is never rusted.

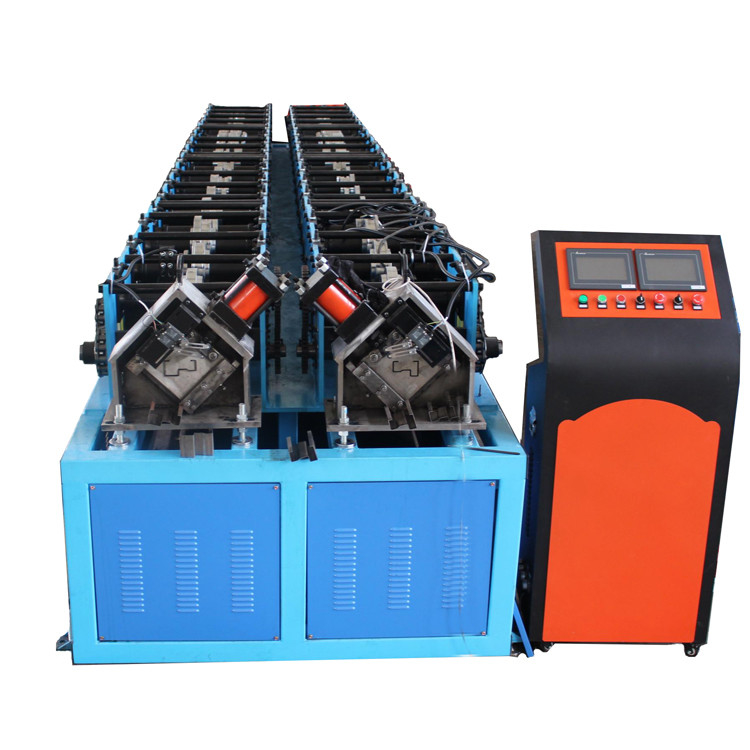

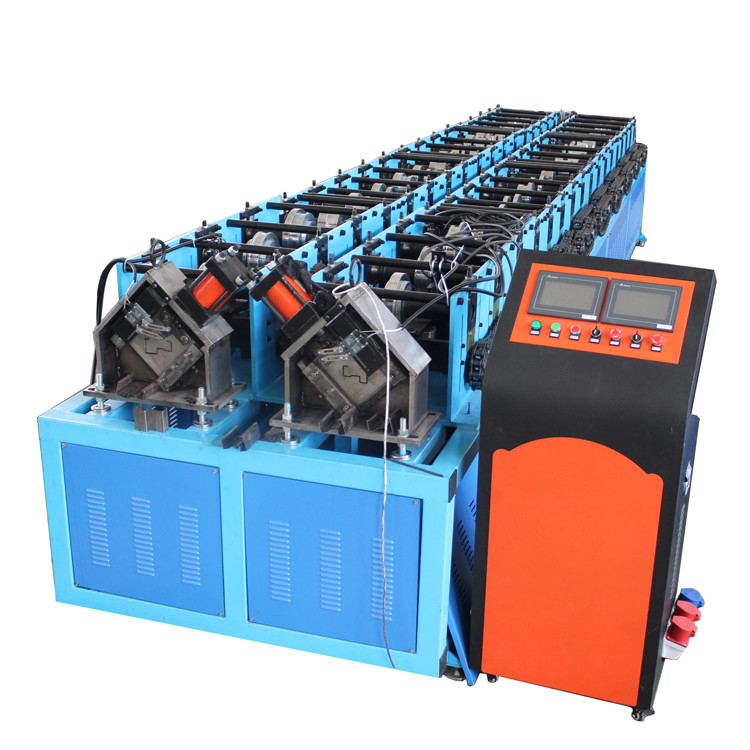

Double Rows PLC Door Frame Roll Forming Machine Safe Reliable 0
