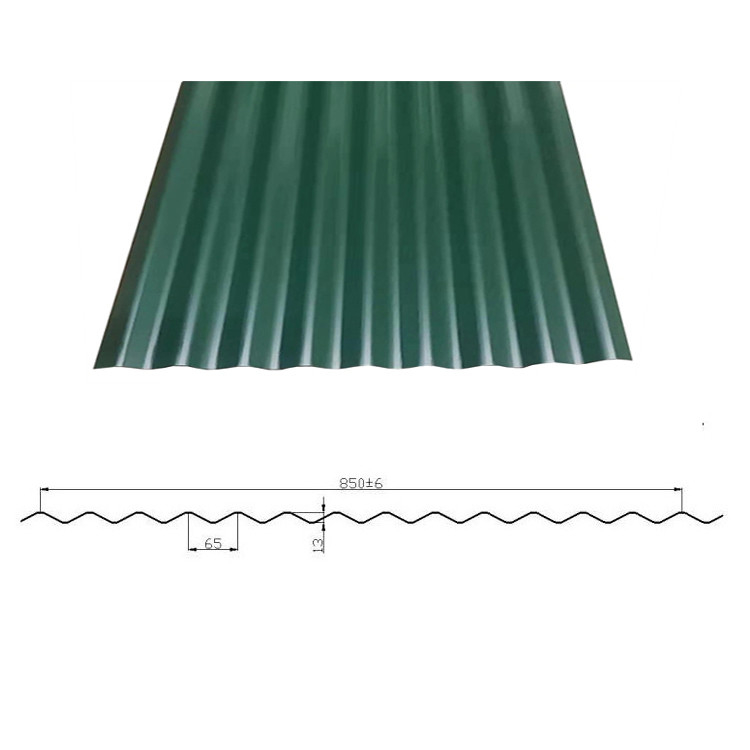

Colored Steel Wall 850mm Corrugated Steel Sheet Making Machine 15m/Min

850mm corrugated steel sheet making machine

15m/min corrugated steel sheet making machine

chain driving roof sheet making machine

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

850

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Ketebalan:

0.3-0.8mm

Bingkai utama:

baja 350 jam

Nama Produk:

Lembaran Baja Bergelombang Membuat Mesin Roll Forming Atap Dinding Baja Berwarna

Pembentukan kecepatan:

8-15m/mnt

Akurasi pemotongan:

±2 mm

Bahan roller:

45# baja

Jenis pemotongan:

Pemotongan hidrolik

Bahan poros:

Kelas Tinggi No.45 Ditempa

Menyoroti:

850mm corrugated steel sheet making machine

15m/min corrugated steel sheet making machine

chain driving roof sheet making machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

Negoiable

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

L/c, d/a, d/p, t/t

Menyediakan kemampuan

30 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

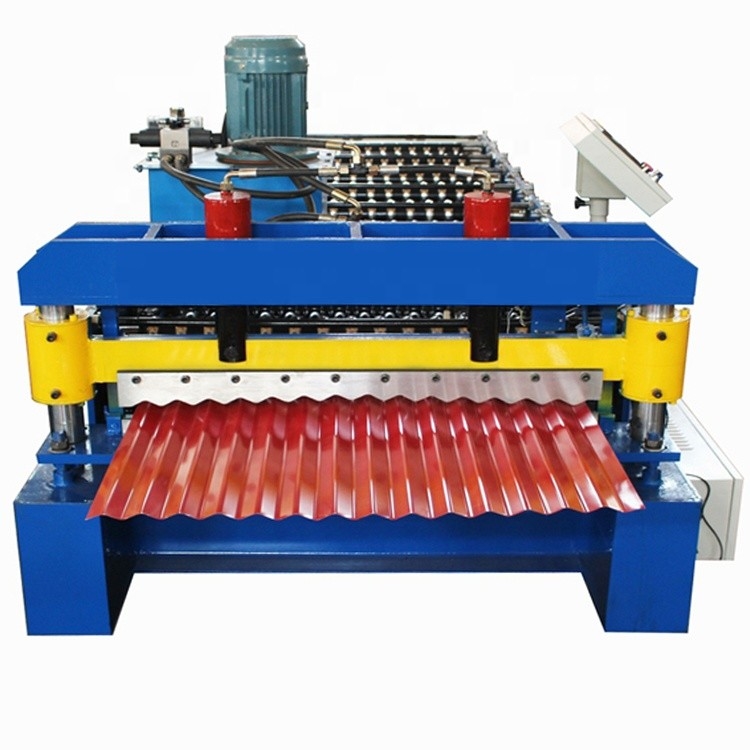

Corrugated Steel Sheet Making Colored Steel Wall Roof Roll Forming Machine

The corrugated roll forming machine is a production-type machine composed of several parts such as discharging, forming, post-forming and cutting. The colored panels produced by it have smooth and beautiful appearance, uniform paint pattern, high strength, and durability.

It has advantage of pretty appearance, durable using and so on

Equipment Detailed Parameters:

No.	Item	Description
1	Coil	Width:1000mm
2	Forming speed	8-15 m/min (not including cutting time)
3	Roller Stations	9 stations
4	Material of Roller	45# steel finish machining, plated hard chromium surface
5	Material of Main Shaft	45# steel finishing machining and then slack quench processed
6	Material of Shaft	70 mm 45#steel forged
7	Hydraulic Station Power	3 KW
8	Hydraulic Station Pressure	12.0 Mpa
9	Electrical Control System	DELTA PLC
10	Material of Cutter	GCr12
11	Driving Mode	single chain 0.6 inch
12	Material Thickness	0.3-0.8mm
13	Power Supply	380V, 60HZ, 3 PHASES
14	Cutting accuracy	±2 mm

Application

They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, walls and roofs.
