Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Ppgi Din Rail Roll Forming Machine Omega Profile Stud Making

ppgi din rail roll forming machine

omega din rail roll forming machine

ppgi omega roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin pembuat gulungan rel Din Mesin pembuat tiang profil Omega

Bahan mentah:

PPGI, Galvanis

Kecepatan:

8-15m / mnt

Ketebalan material:

1 mm - 3 mm

Berat:

9 ton

Jaminan:

1 tahun

Kekuatan:

15kw

Sistem Pengendalian:

PLC

Menyoroti:

ppgi din rail roll forming machine

omega din rail roll forming machine

ppgi omega roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

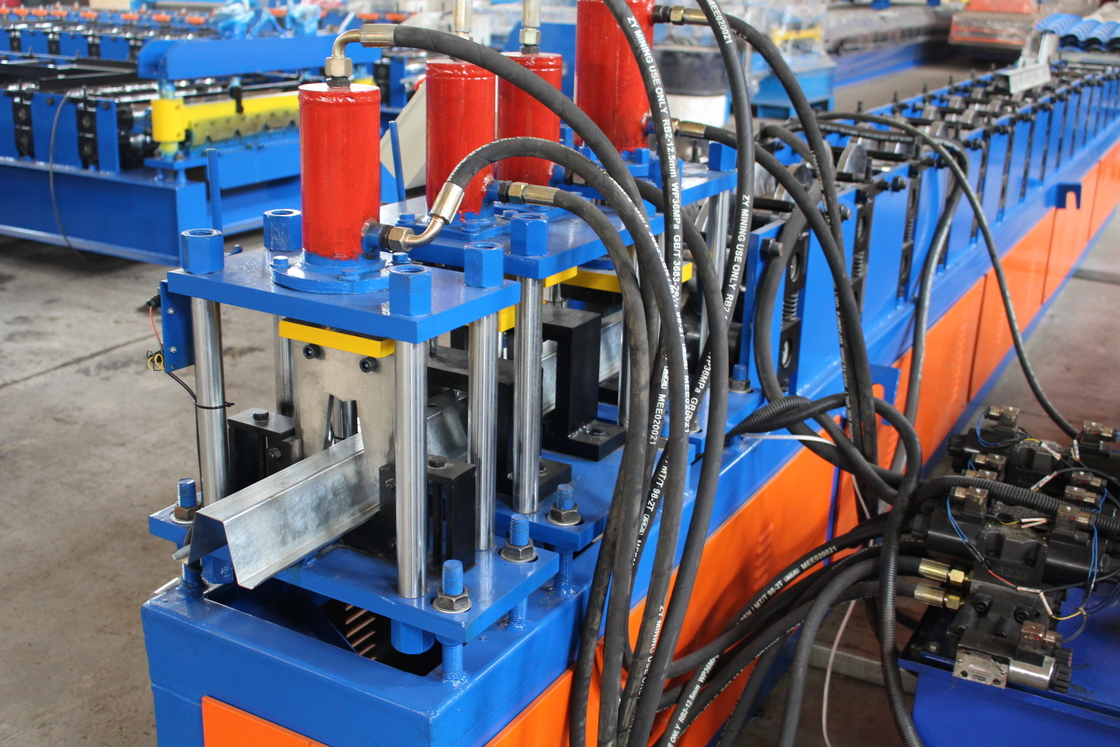

Din rail roll forming machine Omega profile stud making machine

Omega hat-shaped steel purlin forming machine is mainly composed of passive unwinding rack, unwinding rack base, feed introduction platform, leveling device, forming host, punching device, forming and cutting device, hydraulic station, computer control cabinet and other parts.
The finished product of hat-shaped purlin has good bending and compression resistance, good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, and quick and convenient installation.

Specification

No.	Item	Description
1	Coil	Galvanized
	Material Thickness	1 mm- 3 mm
3	Working Speed	8-15m/min ( not including the cutting time)
4	Roller Station	16 Raws
5	Dimension	650013001200
6	Machine Weight	8000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The hat-shaped steel purlin forming machine can be used as the main stress structure of large and medium-sized industrial and civil buildings,

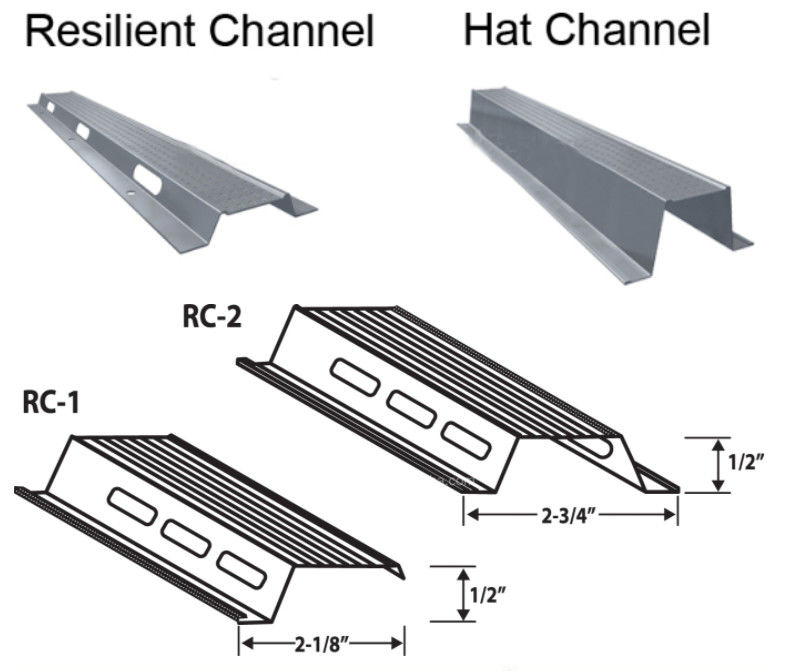

hat channel machine is used to plaster board, gypsum board and other decorative finishes lightweight board made of non-load-bearing walls and roof of the building style decoration, a variety of decorative building roof shape, inside and outside the building wall and ceiling scaffolding base material.Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.

Advantage

The hat-shaped purlin forming machine adopts automatic control software to realize production information management.

The sink equipment also has the advantages of simple operation, easy maintenance, maintenance, mechanical debugging, and easy mold replacement. The entire equipment automation control system uses a highly integrated network to make the automation system perform well.

Ppgi Din Rail Roll Forming Machine Omega Profile Stud Making 0
