0.25mm Semicircle Ridge Cap Metal Tile Forming Machine Automatic Plc Control

0.25mm metal tile forming machine

plc control metal tile forming machine

semicircle ridge cap tile forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembentuk Ubin Logam Ridge Cap

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Ketebalan:

0,25-0,8mm

Jenis ubin:

Tutup Punggung Bukit

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4KW

Akurasi pemotongan:

±2 mm

Bahan Pemotong:

Cr12 Bergerak HRC 58-62

Nilai Otomasi:

Otomatis

Voltase:

380V 50Hz 3fase atau sesuai kebutuhan Anda

Menyoroti:

0.25mm metal tile forming machine

plc control metal tile forming machine

semicircle ridge cap tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

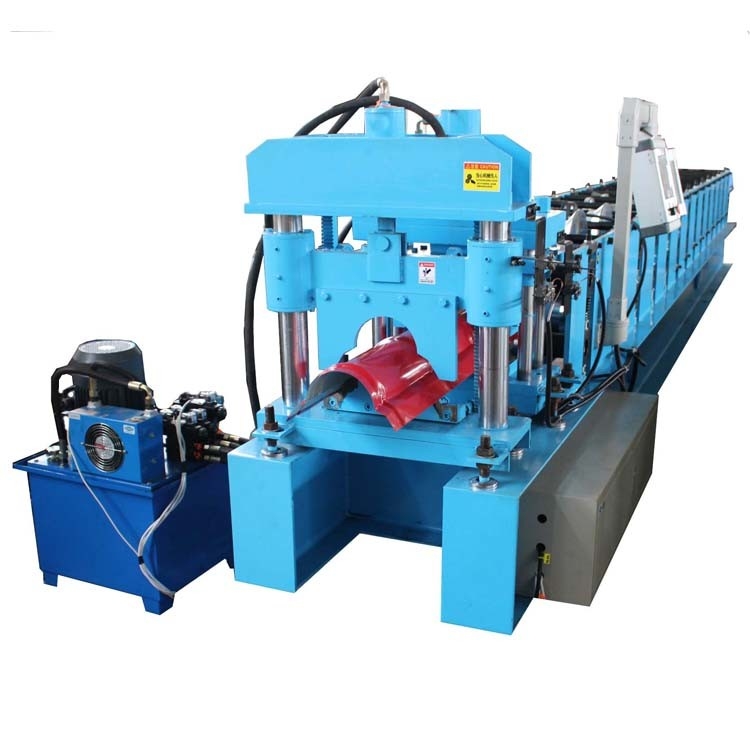

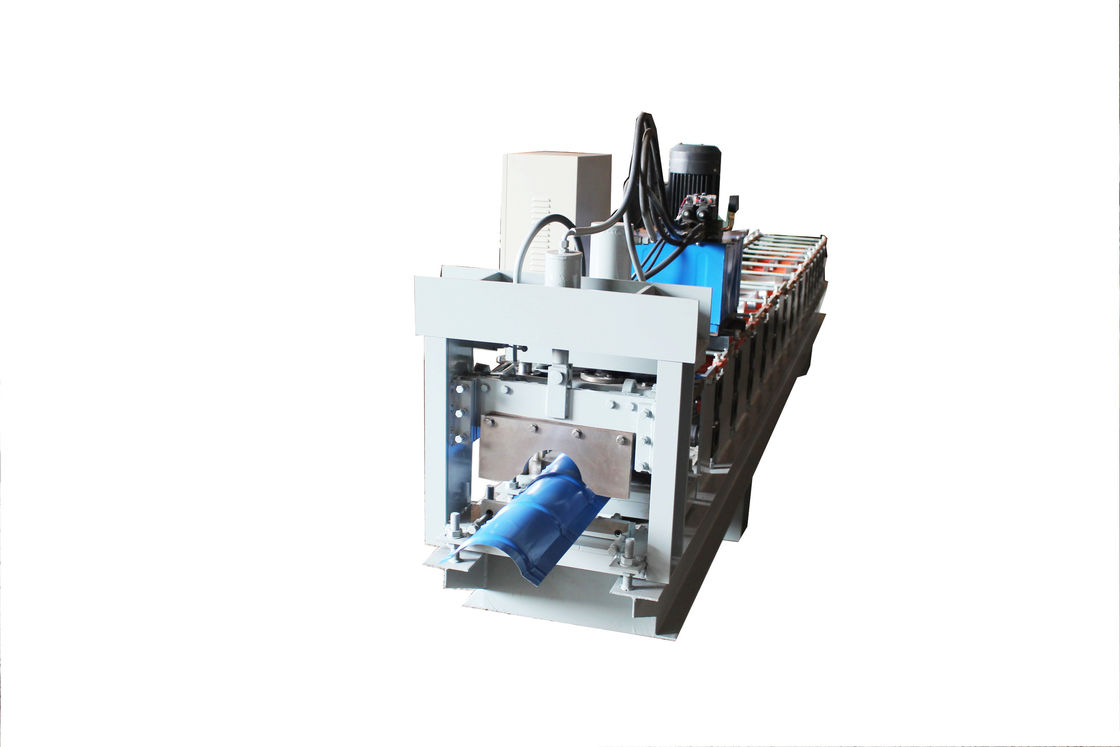

Semicircle Ridge Cap Metal Tile Forming Machine Automatic

The ridge cap roll forming machine can roll metal ridges and is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.

Specification

Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Frame	welded with 350H section steel
Material of Roller	45# steel quenching process and chrome coated
Material of Main Shaft	45 steel forged
Main Motor Power	4 KW
Electrical Hydraulic Station Power	3 KW
Hydraulic Station Pressure	12.0 Mpa
Material of Cutter	Cr12 Mov HRC 58-62
Driving Mode	Single chain 1 inch

Application

The finished products of metal roof cover forming machine roof tile building materials machinery are widely used in various industrial plants, garages, warehouses, apartments, home construction, etc.

Advantage

ridge cap steel tiles has light weight, good waterproofness, easy and quick installation,cost effective.highly durable.

the surface will be very smooth and beautiful without any scratch on surface.and can be widely used in roofs of villas, urban flat-to-slope, and tourist attractions. it can maintain the beauty of the roof without and repairing. The arc-shaped color steel roof ridge tile is more complete on the basis of the hand-made roof ridge tile.

0.25mm Semicircle Ridge Cap Metal Tile Forming Machine Automatic Plc Control 0
