Semicircle Indentation Ridge Shape Roof Roll Forming Machine

Semicircle Indentation Ridge Shape Roof Roll Forming Machine

ridge shape roof roll forming machine

semicircle indentation roof roll forming machine

ppgi roof sheet forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Tutup Punggung Bukit

Hubungi Kami
Minta Penawaran Harga
Semicircle Indentation Ridge Shape Roof Roll Forming Machine
Semicircle Indentation Ridge Shape Roof Roll Forming Machine Semicircle Indentation Ridge Shape Roof Roll Forming Machine Semicircle Indentation Ridge Shape Roof Roll Forming Machine Semicircle Indentation Ridge Shape Roof Roll Forming Machine Semicircle Indentation Ridge Shape Roof Roll Forming Machine
Detail Produk
Nama Produk:
Mesin Roll Forming Atap Ridge Cap
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium
Sistem kontrol:
PLC
Ketebalan:
0,25-0,8mm
Jenis ubin:
Tutup Punggung Bukit
Kondisi:
Baru
Warna:
Sesuai permintaan pelanggan
Tenaga Motorik:
4KW
Akurasi pemotongan:
±2 mm
Bahan Pemotong:
Cr12 Bergerak HRC 58-62
Menyoroti:

ridge shape roof roll forming machine

,

semicircle indentation roof roll forming machine

,

ppgi roof sheet forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus 6m Automatic Stacker for Roof Sheet Roll Forming Machine on line

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine on line Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows on line Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik
Harga bagus 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows on line Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

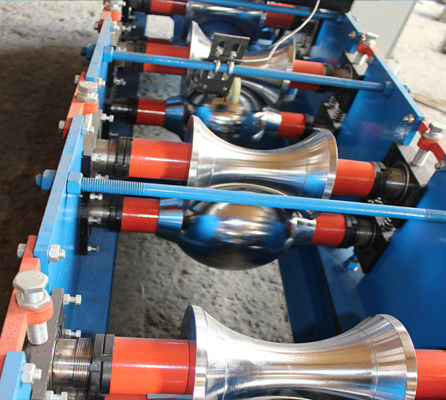

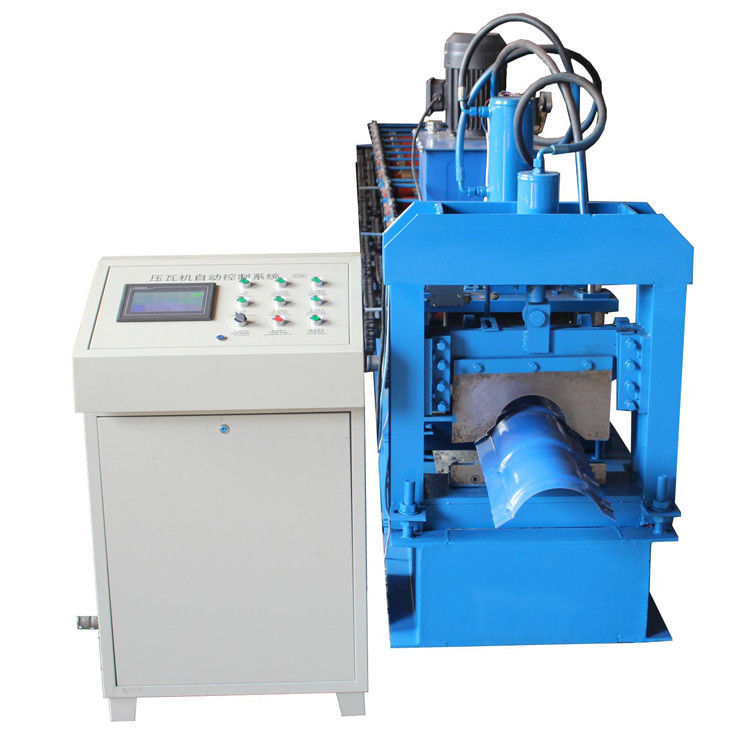

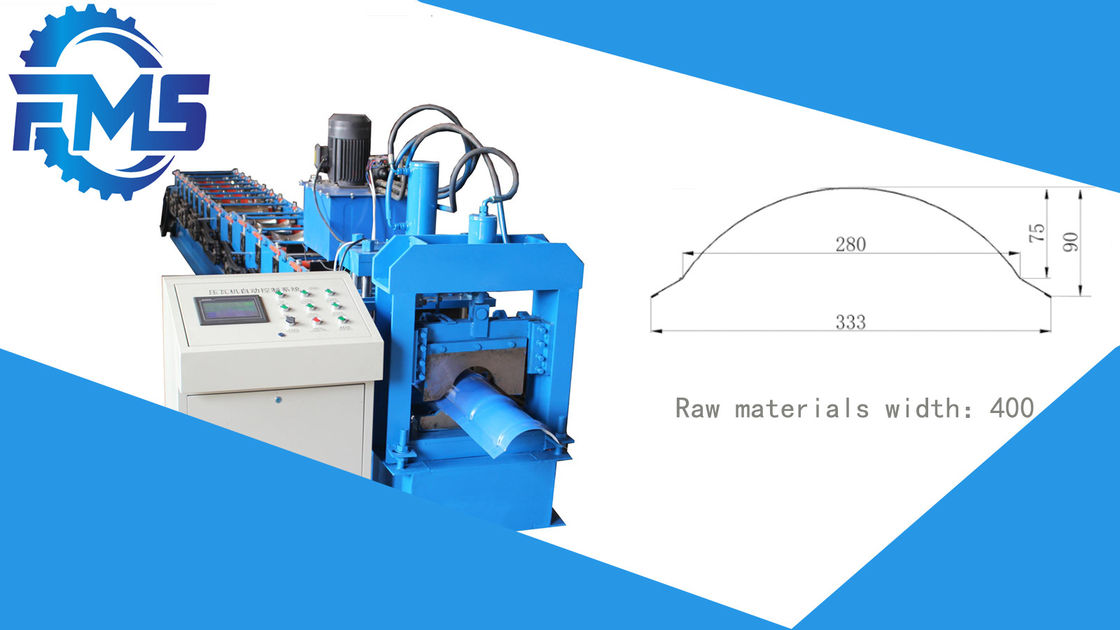

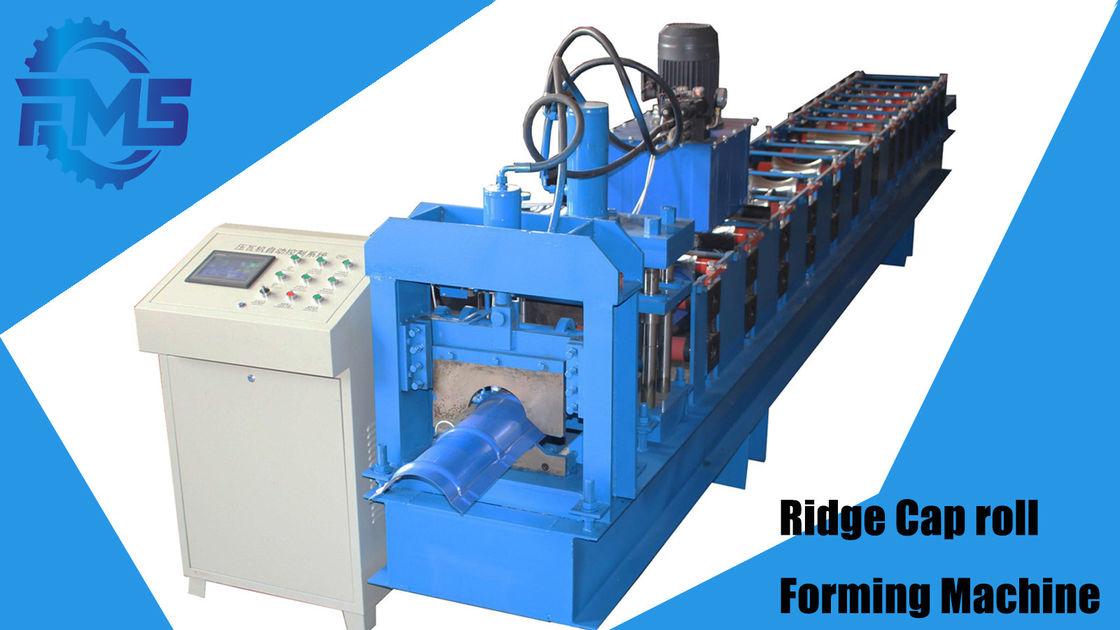

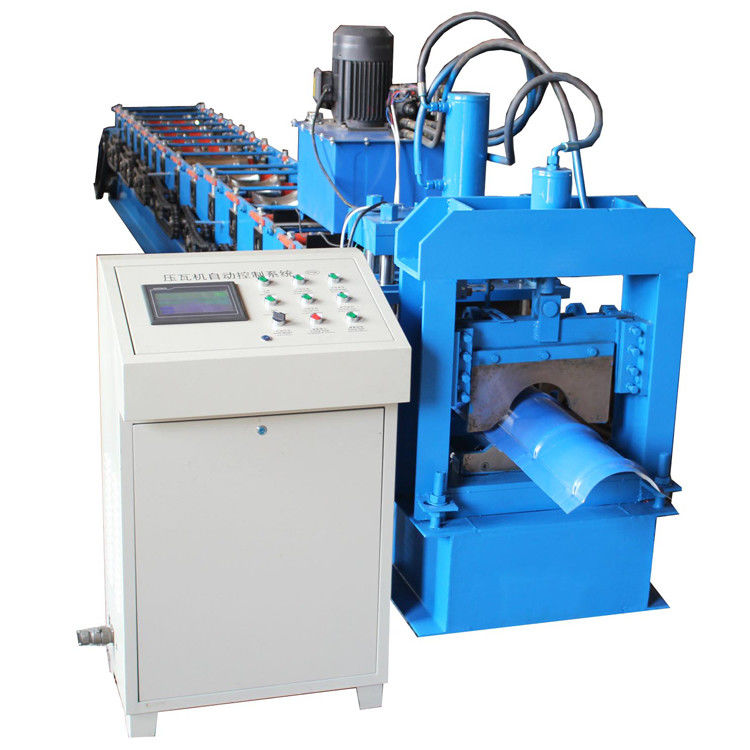

semicircle Indentation roof ridge shape roll forming machine



The ridge cap roll forming machine can roll metal ridges and is mainly used for colored roof tiles. The entire roll forming production line is composed of uncoiler (mainly composed of uncoiler and its base), gear rigging, rolling mill stand and main machine, pressurizing system, cutting equipment, hydraulic system, control system, and product support.

Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 4KW
9

Hydraulic Station Power

 4 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The finished products of metal roof cover forming machine roof tile building materials machinery are widely used in various industrial plants, garages, warehouses, apartments, exhibitions, home construction, shopping malls, etc.



Advantage



ridge cap steel tiles has light weight, high strength, good waterproofness, easy and quick installation, and can be widely used in roofs of villas, urban flat-to-slope, and tourist attractions. it can maintain the beauty of the roof without editing and repairing. The arc-shaped color steel roof ridge tile is more complete on the basis of the hand-made roof ridge tile. It is a better partner for the color steel glazed tile or color steel plate.
