Name: 686/762 Corrugated Profile Double Layer Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Lapisan ganda
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

686/762 Corrugated Profile Double Layer Roll Forming Machine

versatile double layer roll forming machine

686mm double layer roll forming machine

profile corrugated roll former

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Lapisan ganda

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

686/762 Mesin Roll Forming Profil Bergelombang Lapisan Ganda

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Bahan mentah:

Lembaran PPGI/Galvanis

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Kecepatan:

15-20m/mnt

Ketebalan:

0,3mm-0,8mm

Kekuatan:

3kw

LEBAR BAHAN BAKU:

925mm

Daya Stasiun Hidrolik:

3kw

Menyoroti:

versatile double layer roll forming machine

686mm double layer roll forming machine

profile corrugated roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

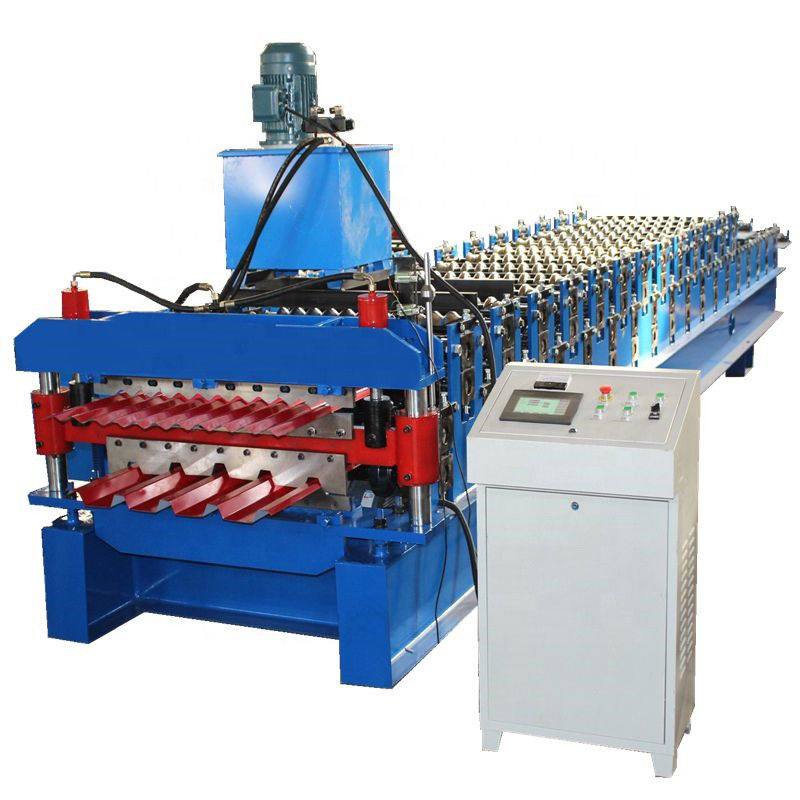

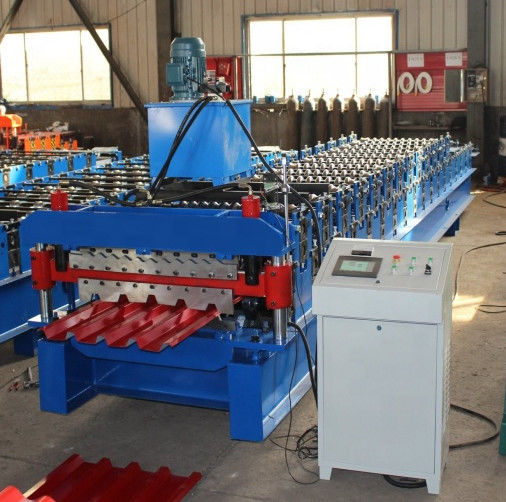

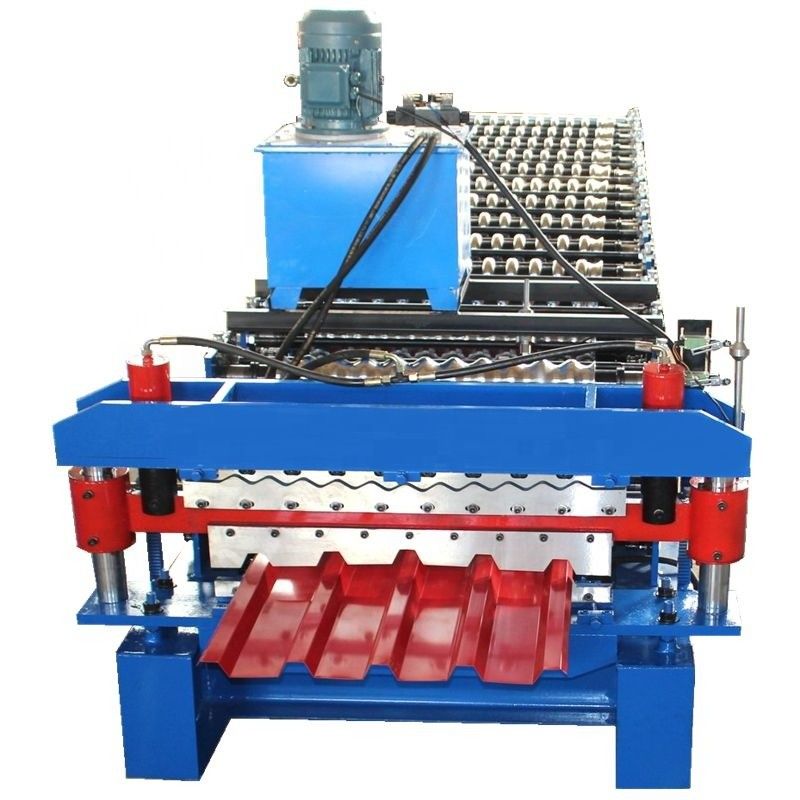

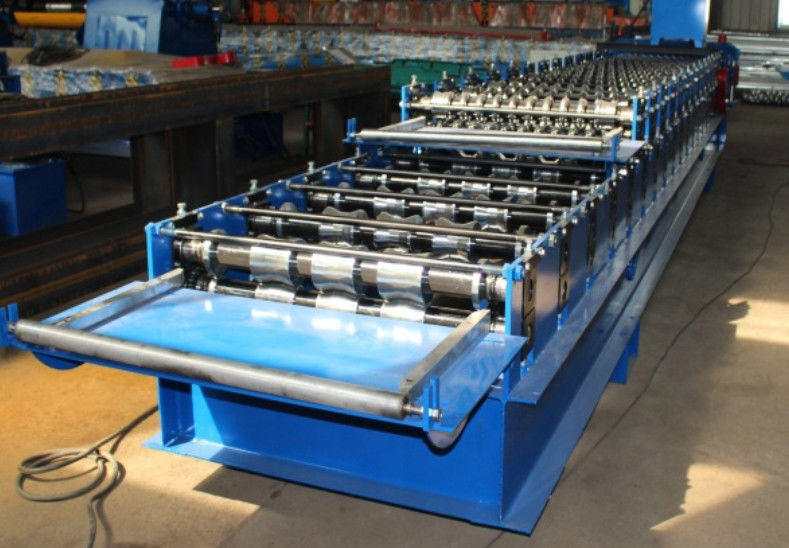

686/762 Double Layer Corrugated Profile Roll Forming Machine

One piece of double-laminated tile machine can press two types of tiles. The biggest advantage is that it has a small footprint, saves space, and is automatically controlled by a computer. However, only one type of plate can be produced during the operation, which is equivalent to two. Single board computer.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-20/min
4	Roller Station	18/16 Raws
5	Dimension (LWH)	8500 mm1200 mm1200 mm
6	Machine Weight	4800 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

This type of tile is suitable for interior and exterior wall decoration of industrial and civil buildings, warehouses, special buildings, roofs, walls and large-span steel structure houses. The raw material can be GI, GL, PPGI, PPGL, aluminum plate, etc., which has the function of anti-corrosion and acid resistance, and the service life is 10-15 years

Advantage

This version is mainly used for roof, wall and internal and external wall decoration of buildings, warehouses, special buildings, long-span steel structure houses, etc. It has the characteristics of light weight, high strength, rich colors, convenient and fast construction, earthquake resistance and so on Fireproof, rainproof and long service life. Functions such as protection free have been widely used.
