Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic

Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic

0.3mm steel door frame roll forming machine

ppgi steel door frame roll forming machine

ppgi door frame roll forming machine

Tempat asal:

China daratan

Nama merek:

FMS

Sertifikasi:

ISO CE

Nomor model:

Bingkai pintu

Hubungi Kami
Minta Penawaran Harga
Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic
Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic Hydraulic Shears Ppgi Steel Door Frame Roll Forming Machine Automatic
Detail Produk
Nama Produk:
Mesin Roll Forming Kusen Pintu Baja Otomatis Gunting Hidraulik
Bahan mentah:
PPGI,GI,PPGL GL
Kecepatan kerja:
10 m/mnt - 15 m/mnt Kecepatan Tinggi
Ketebalan material:
0,3 mm - 0,8 mm
Voltase:
380V 50Hz 3Phase
Kondisi:
Baru
Menyoroti:

0.3mm steel door frame roll forming machine

,

ppgi steel door frame roll forming machine

,

ppgi door frame roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

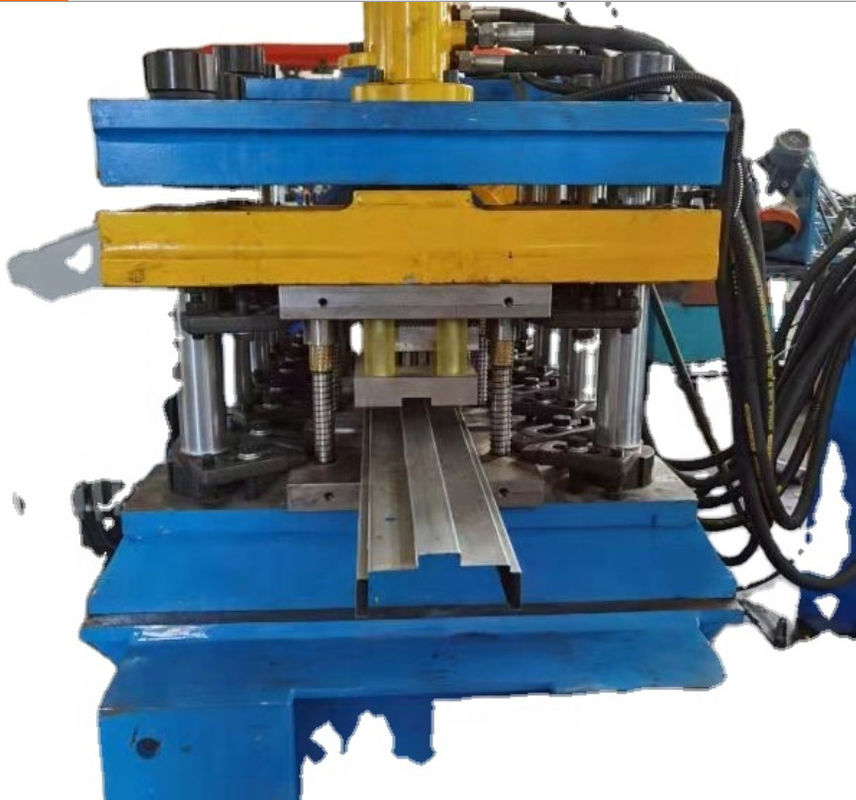

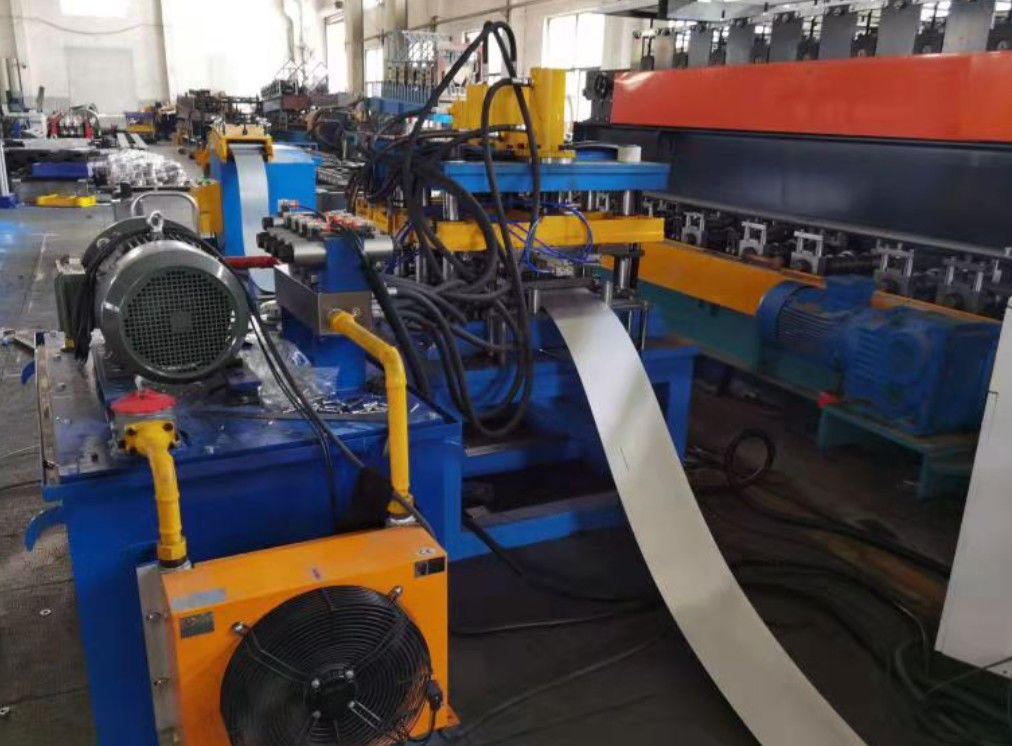

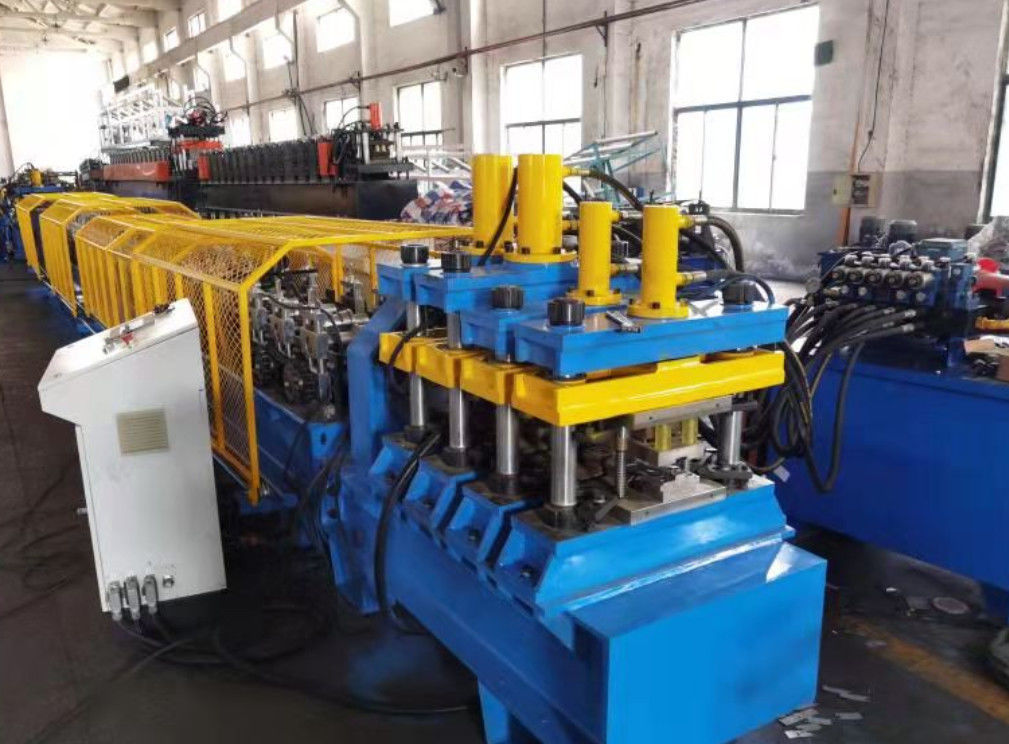

Hydraulic Shears Automatic Steel Door Frame Roll Forming Machine

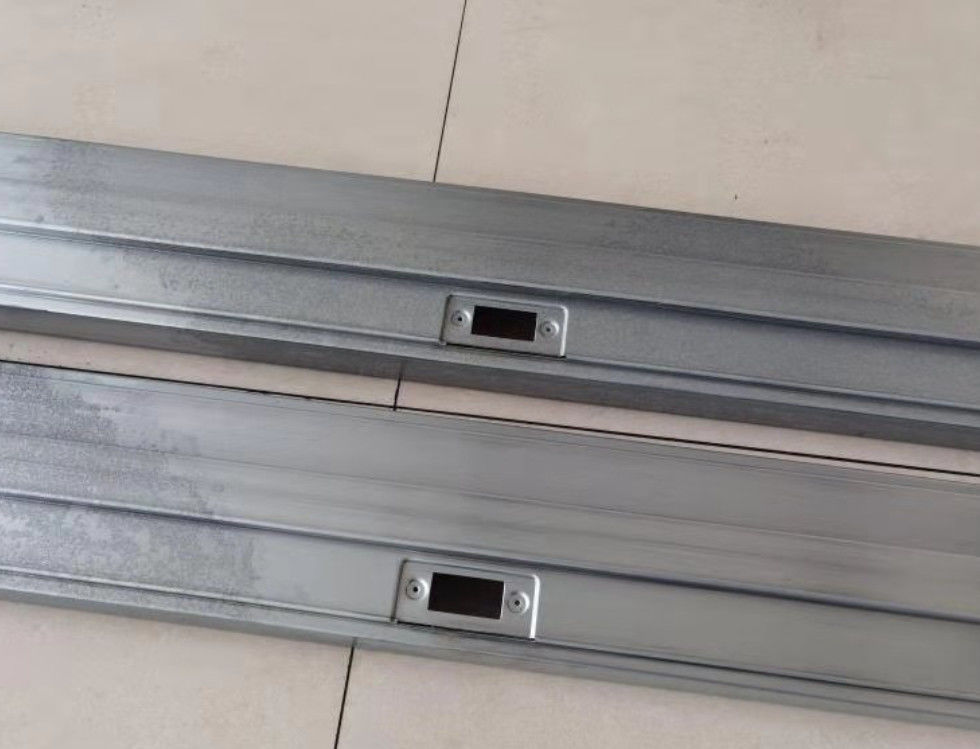

The steel door frame forming machine is controlled by the PLC control system to realize fully automatic operation. The machine version can be customized according to customer requirements. Because the products produced by this machine have high hardness, are not easily deformed, are corrosion-resistant, anti-oxidation, easy to maintain, and have a long service life, they are applicable to door frames, window frames, and slide rails of various products.





Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.3 mm - 0.9 mm
3 Working Speed 10-15 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

 5500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 5 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 1 mm
12

Driving Mode

Gear Wheel
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



The door frame forming machine is used in conjunction with the rolling shutter door strip forming machine, which is suitable for commercial exterior walls, garages, shopping malls, factories, mining enterprises and other public places or residences. Especially in places with large door openings, where it is not convenient to install the door body on the ground, it plays a role of convenient and quick opening of the door. For example, it is used for garage doors, fireproof rolling shutter doors of shopping malls, hangar doors, etc.


Advantage



The door frame forming machine adds different geometrical ribs to the high-hardness zinc-aluminum alloy profile to greatly enhance its strength. The surface is treated with special electrophoresis, which has unlimited luster, is not easy to stick to dust, is not corroded by polluted gases, and is never rusted. long.
