Name: Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Mesin C&Z Purlin
Price: 32,500.00 USD
Availability: InStock

Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >

Adjustable Plc Control 3ph Cz Purlin Roll Forming Machine Automatic

3ph cz purlin roll forming machine

plc cz purlin roll forming machine

adjustable cz purlin machine

Tempat asal:

China daratan

Nama merek:

WILLING

Sertifikasi:

ISO CE

Nomor model:

Mesin C&Z Purlin

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Simi - Mesin Roll Forming Purlin Atap Logam Otomatis Kaki C Purlin

Bahan mentah:

Galvalum, Galvanis

Dimensi (P*L*T):

7000 mm*1500 mm* 1500

Ketebalan material:

1 mm - 3 mm

Berat:

4.5t

Kapasitas Produksi:

10-25m/mnt

Voltase:

380V/50Hz/3ph

Tenaga motor utama::

15kw

Menyoroti:

3ph cz purlin roll forming machine

plc cz purlin roll forming machine

adjustable cz purlin machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

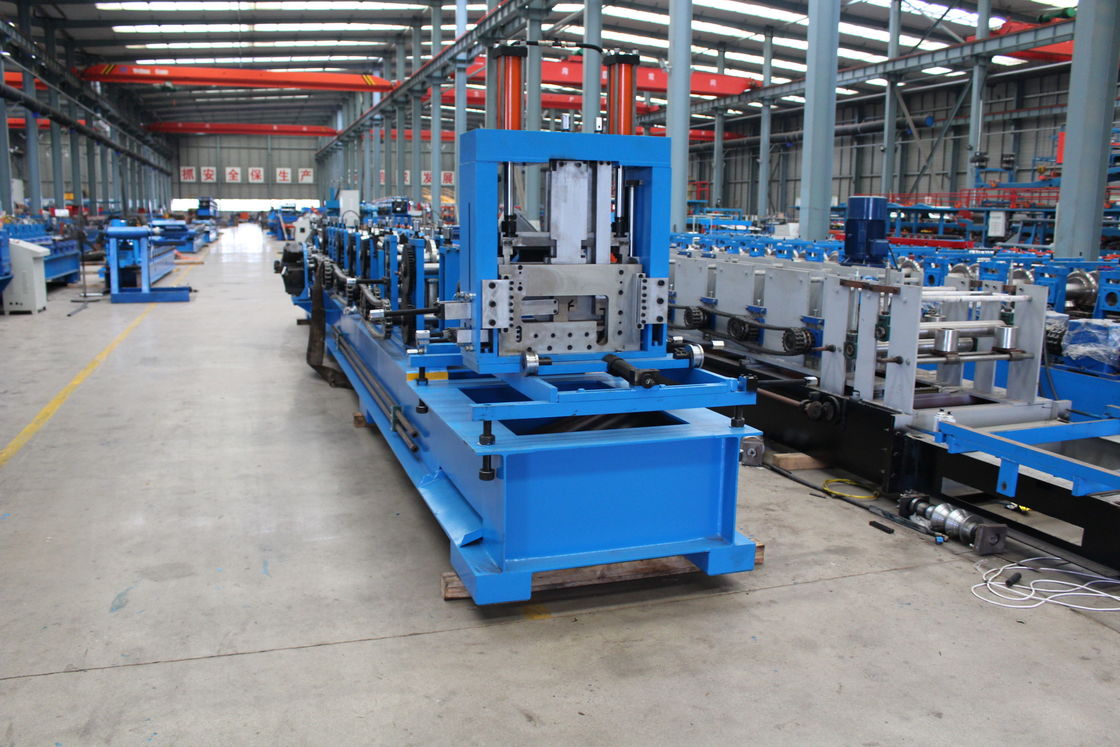

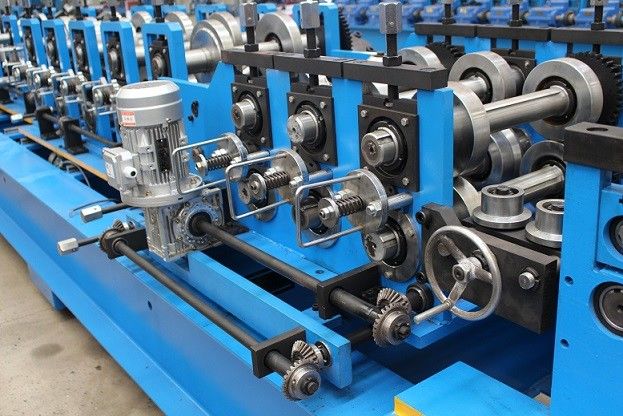

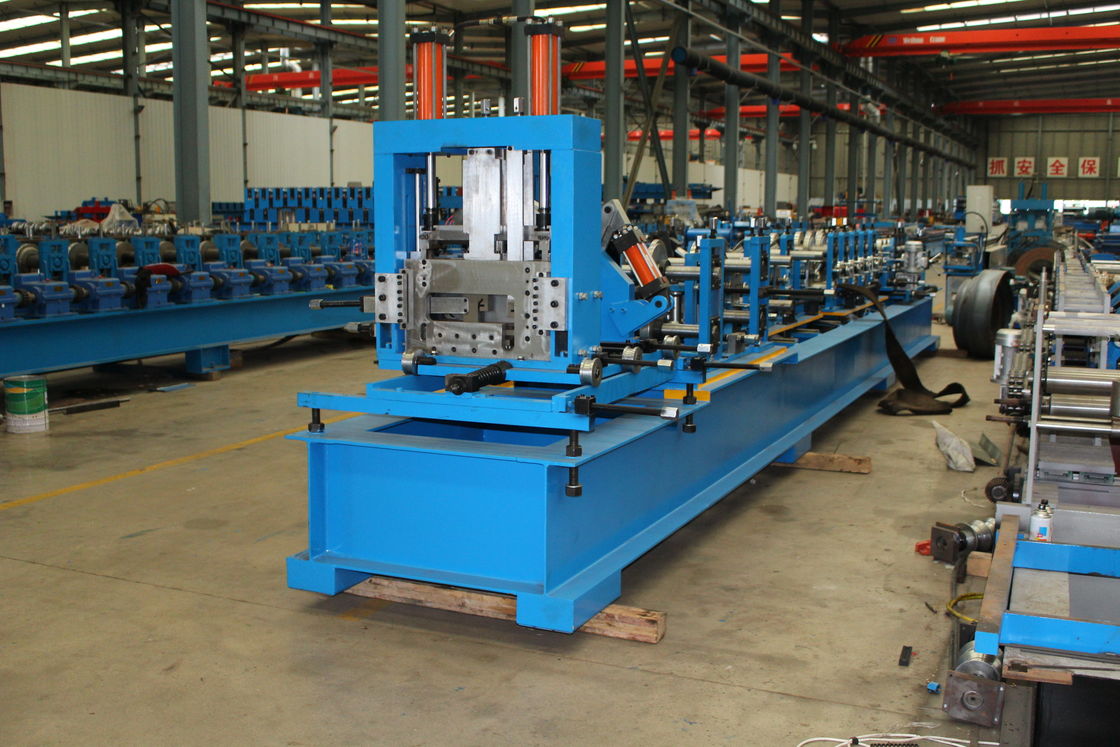

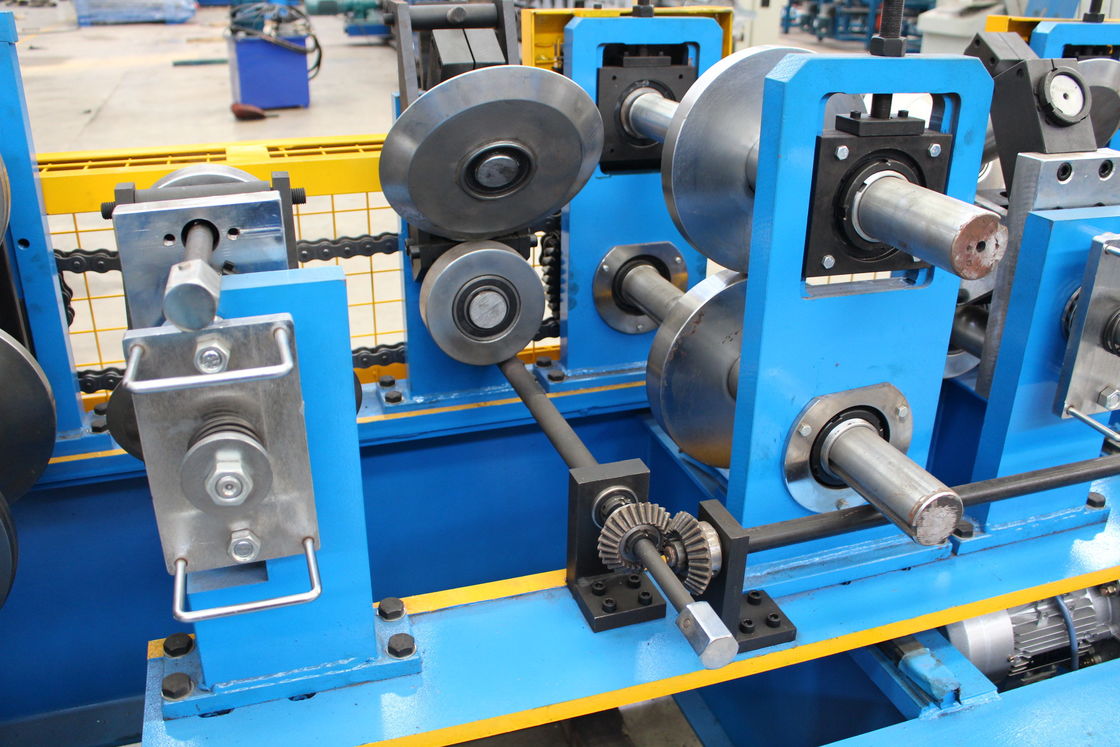

Automatic Adjustable PLC Control CZ Purlin Roll Forming Machine

The CZ automatic purlin interchange production line is faster and more time-saving than the single purlin method. Purlins of various shapes and sizes can be customized according to customer requirements. In terms of price, it is cheaper than other production lines and durable. The machine has the characteristics of high degree of automation and high production efficiency. It is controlled by the CNC system. It has the functions of multi-task programming, simulated device display, storage and data upload. Download function; It can automatically complete specification adjustment and C-type/Z-type conversion according to input parameters; It can realize features such as automatic speed regulation and accurate positioning and cutting.

The finished purlin produced by it has a smooth surface, strong bending resistance, and an exquisite appearance.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1.5 mm- 3 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

the product of C and Z roll forming machine produce widely used in purlins and wall beams in structure buildings, and can also be combined into lightweight roof trusses, brackets and other building components.
The sprayed C and Zshaped steel is used as beams, supports and ties. Due to Its safety factor is quite high, and its load-bearing capacity can also be satisfied. It can also be widely used in the roof to support roof panels and wall panels.

Advantage

The CZ-type purlin automatic interchange production line does not require a lot of operators to operate, which can save a certain amount of labor for the factory. The CZ-type purlin machine can also manufacture purlins of different materials. If the customer has such a demand, it can be produced. During the production process, the noise generated is very small and it is also environmentally friendly. Workers operating in such an environment will not suffer from health problems. Because they can work for a long time, they are not affected by climatic conditions.
