Name: Arc Sheet Aluminium Step GL Roof Tile Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Ubin Langkah
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Arc Sheet Aluminium Step GL Roof Tile Forming Machine

gl roof tile forming machine

arc sheet roof tile forming machine

aluminium step roof tile forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Ubin Langkah

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Ubin Langkah Aluminium Lembaran Busur

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Bahan mentah:

PL,GL,PPGI,PPGL

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Kecepatan:

8-15m/mnt

Ketebalan:

0.3mm-0.8mm

Kekuatan:

3kw

LEBAR BAHAN BAKU:

1000 mm

Daya Stasiun Hidrolik:

3kw

Menyoroti:

gl roof tile forming machine

arc sheet roof tile forming machine

aluminium step roof tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine

Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine adopts a fully automatic hydraulic creasing and hydraulic shearing system, which has fast production speed and stable operation, which can effectively save customers' time and labor costs.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3mm-0.8mm
3	Working Speed	8-15/min
4	Roller Station	16 Raws
5	Dimension (LWH)	5000 mm1200 mm1200 mm
6	Machine Weight	4000 KG
7	Electrical Control System	PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Due to its good appearance, anti-corrosion and acid resistance, such tiles are mostly used in daily buildings such as warehouses, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.

Advantage

This version is generally used in many types of buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses, etc. It has light texture, rich color, convenient and fast construction, good seismic effect, and long service life. , Maintenance-free and other advantages, has now been widely promoted.

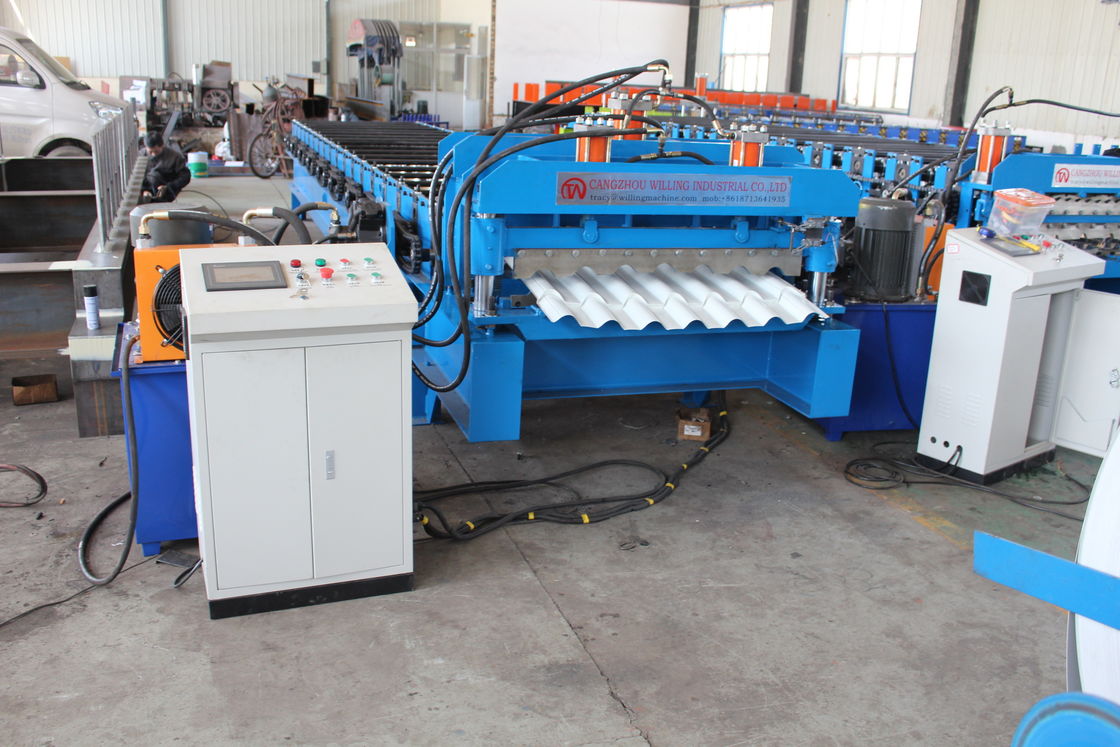

Arc Sheet Aluminium Step GL Roof Tile Forming Machine 0
