Cz Channel Manual Adjustable 1mm Purlin Forming Machine

versatile purlin forming machine

1mm purlin forming machine

c&z purlin forming machine

Tempat asal:

China daratan

Nama merek:

CZ Channel Manual Adjustable Purlin Roll Forming Machine

Sertifikasi:

ISO CE

Nomor model:

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Saluran Dapat Disesuaikan

Bahan mentah:

Galvalum, Galvanis

Dimensi (P*L*T):

7000 mm*1500 mm* 1500

Ketebalan material:

1 mm - 3,5 mm

Berat:

4.5t

Kapasitas Produksi:

10-25m/mnt

Voltase:

380V/50Hz/3ph

Tenaga motor utama::

15kw

Menyoroti:

versatile purlin forming machine

1mm purlin forming machine

c&z purlin forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik

Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik

Video

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

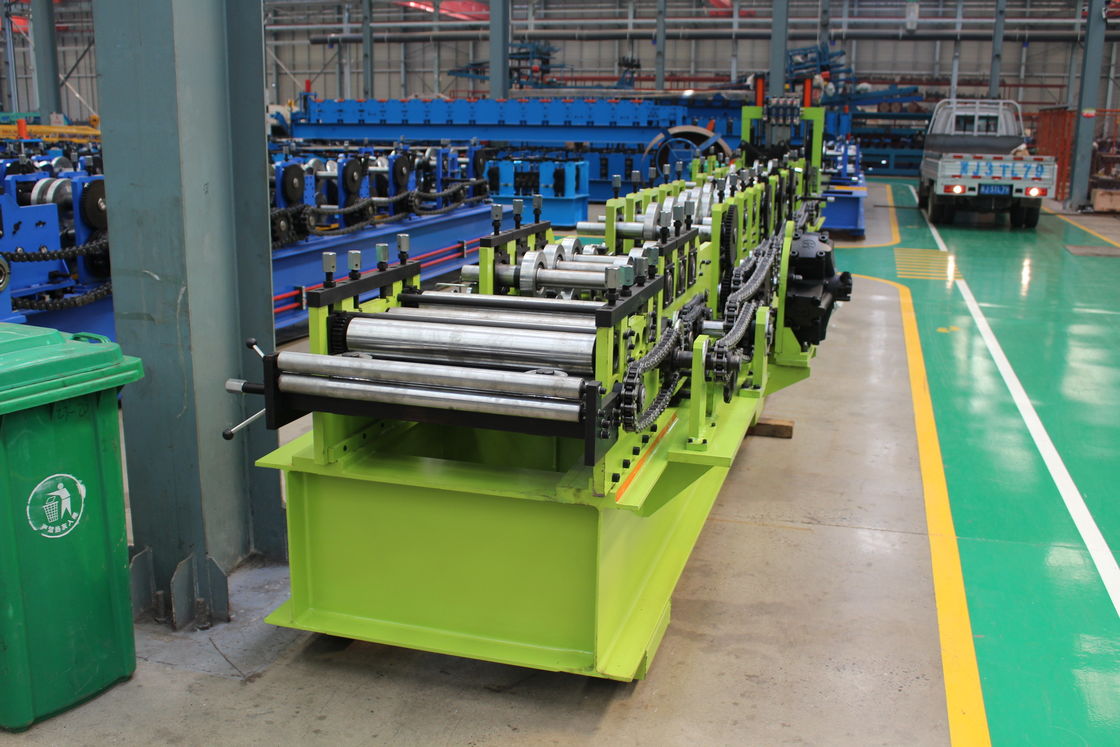

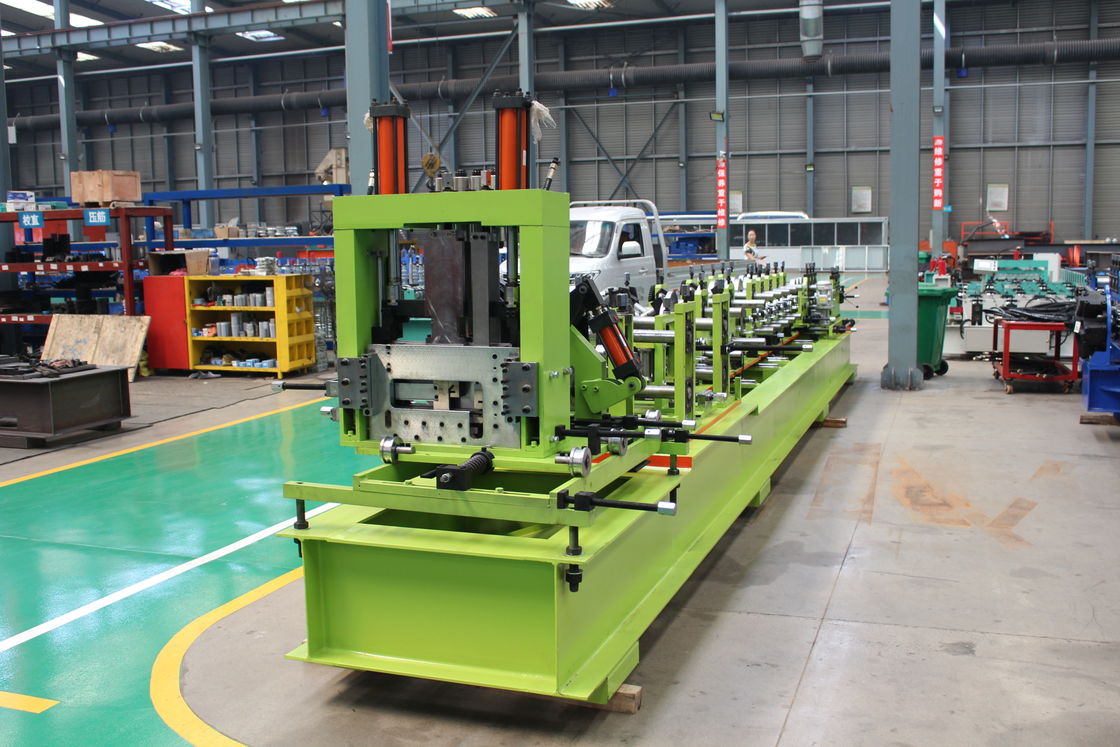

CZ Channel Manual Adjustable Purlin Roll Forming Machine

CZ channel changeable roll forming machine CAN produce two different type of shape purlin in one machine, C type purlin has good straightness and has good compression and bending resistance. Z type purlin can be installed in reverse lap, and the installation strength of the connection point will be increased. with it high productive speed, it can help client save labor cost and save more space.

Specification

No.	Item	Description
1	Coil	Galvanized
2	Material Thickness	1 mm- 3.5 mm
3	Working Speed	15- 20 m/min ( not including the cutting time)
4	Roller Station	12-16 Raws
5	Dimension (LWH)	7000 mm1000 mm1300 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	15KW
9	Hydraulic Station Power	15 KW
10	Power Supply	360V/60HZ/3PH
11	Cutting Accuracy	±2 mm

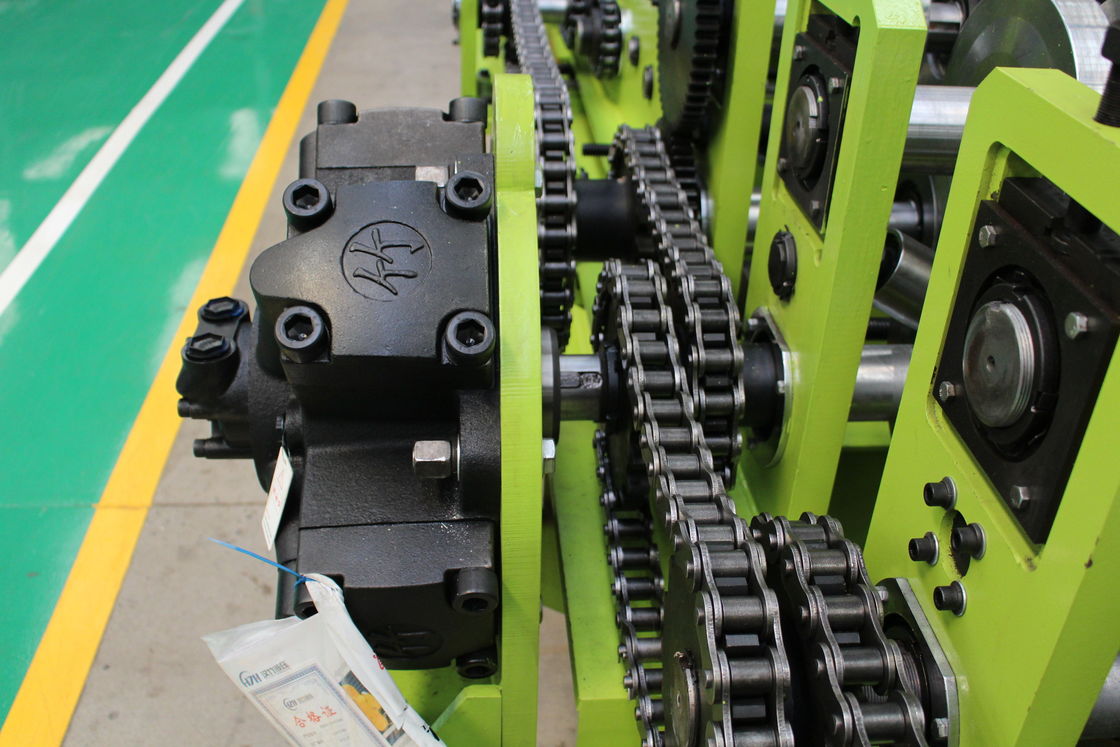

12	Driving Mode	Single Chain 2 inch
13	Material of Shaft	80 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The finished product of Purlin Making Machine Non-polar Cutting Z Purlin Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family
construction, shopping malls shutter doors and etc. lt has the advantage of beautiful, classical appearance and grace taste.

Advantage

The CZ interchange purlin machine has a fully automatic electrical control system and error reporting device, which can effectively ensure the safety and stability of the production line. The equipment is driven by a geared motor, with frequency conversion speed regulation, speed regulation, and fixed-length positioning. It has also become more accurate and reliable. And the conversion of the two profiles can be realized without changing the forming roller. The speed is very fast and the efficiency is very high.
