Name: Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Tutup Punggung Bukit
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine

ppgi fully automatic roll forming machine

ppgi ridge cap roll forming machine

versatile ridge cap roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Tutup Punggung Bukit

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Pembuat Roll Forming Tile Fix Ridge Cap Sepenuhnya Otomatis

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Ketebalan:

0,3-0,9 mm

Jenis ubin:

Tutup Punggung Bukit

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4KW

Menyoroti:

ppgi fully automatic roll forming machine

ppgi ridge cap roll forming machine

versatile ridge cap roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi produk

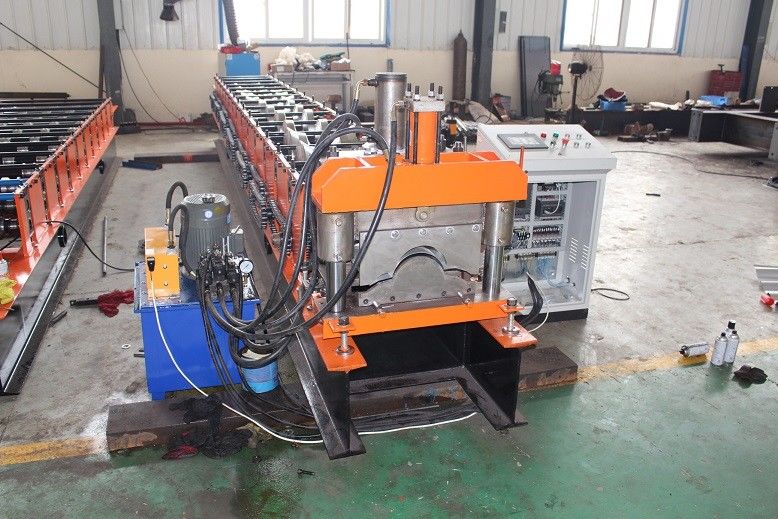

Fully Automatic Tile Fix Ridge Cap Roll Forming Making Machine

The roof tile forming machine adopts imported computer motherboards, relays, and frequency converters. It has high production efficiency and high yield. It has the ability to replace the ridge pad tiles in the past roof ridge tiles and the base part for laying on the corrugated tiles. A structure composed of a crown that covers the ridge tile and forms an appearance on the outer side of the roof tile

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	10-15 m/min ( not including the cutting time)

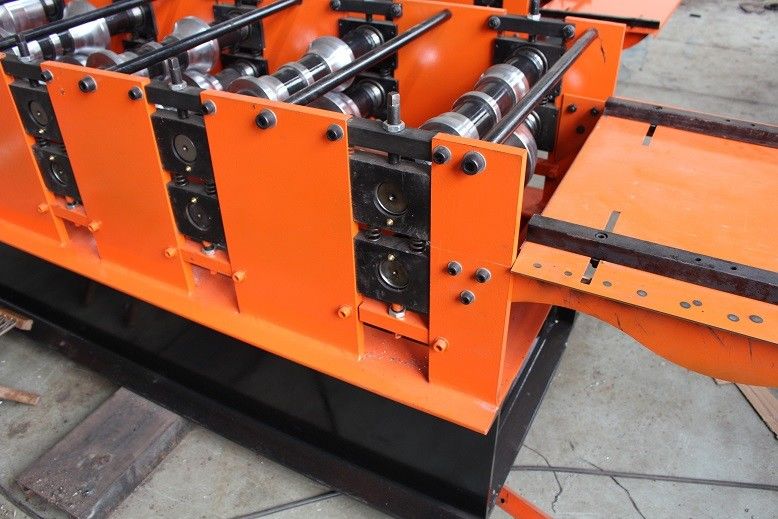

4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged

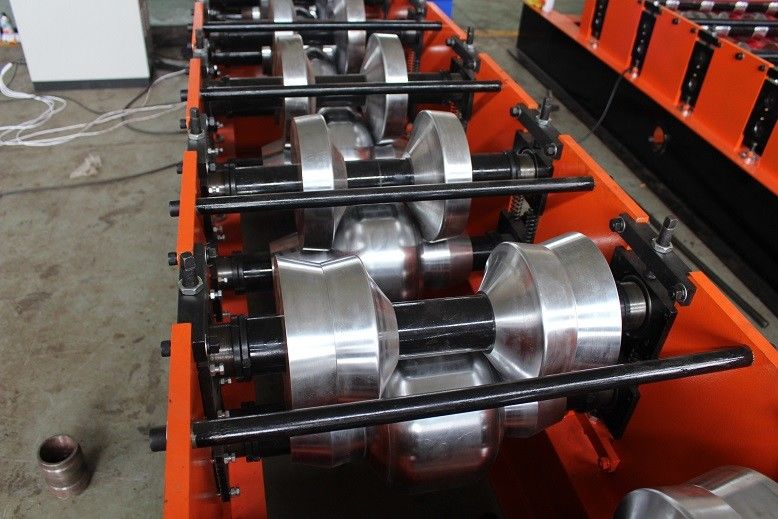

14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

The ridge cap tile forming machine adopts roll forming technology and stamping die hydraulic forming. Products are widely used in building color steel roof connections, such as new rural construction, leveling projects, resorts, villa roofs, etc.

Advantage

The ridge cap tile roof tile forming machine has a reasonable structure and is easy to operate. It is fed, pressed, and cut into plates. Using low-speed metering pump, frequency conversion speed regulation or stepless speed regulation, computer control, accurate measurement. The entire unit automation control system adopts a highly integrated network, which makes the automation system superior in performance.

Fully Automatic Tile Fix PPGI Ridge Cap Roll Forming Machine 0
