Name: Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Tutup Punggung Bukit
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine

waterproof roof roll forming machine

anti corrosion roof roll forming machine

ppgi tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Tutup Punggung Bukit

Hubungi Kami

Minta Penawaran Harga

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine

Detail Produk

Nama Produk:

Mesin Roll Forming Atap Genteng Anti Korosi Dan Tahan Air

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Ketebalan:

0,3-0,9 mm

Jenis ubin:

Tutup Punggung Bukit

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

4KW

Menyoroti:

waterproof roof roll forming machine

anti corrosion roof roll forming machine

ppgi tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

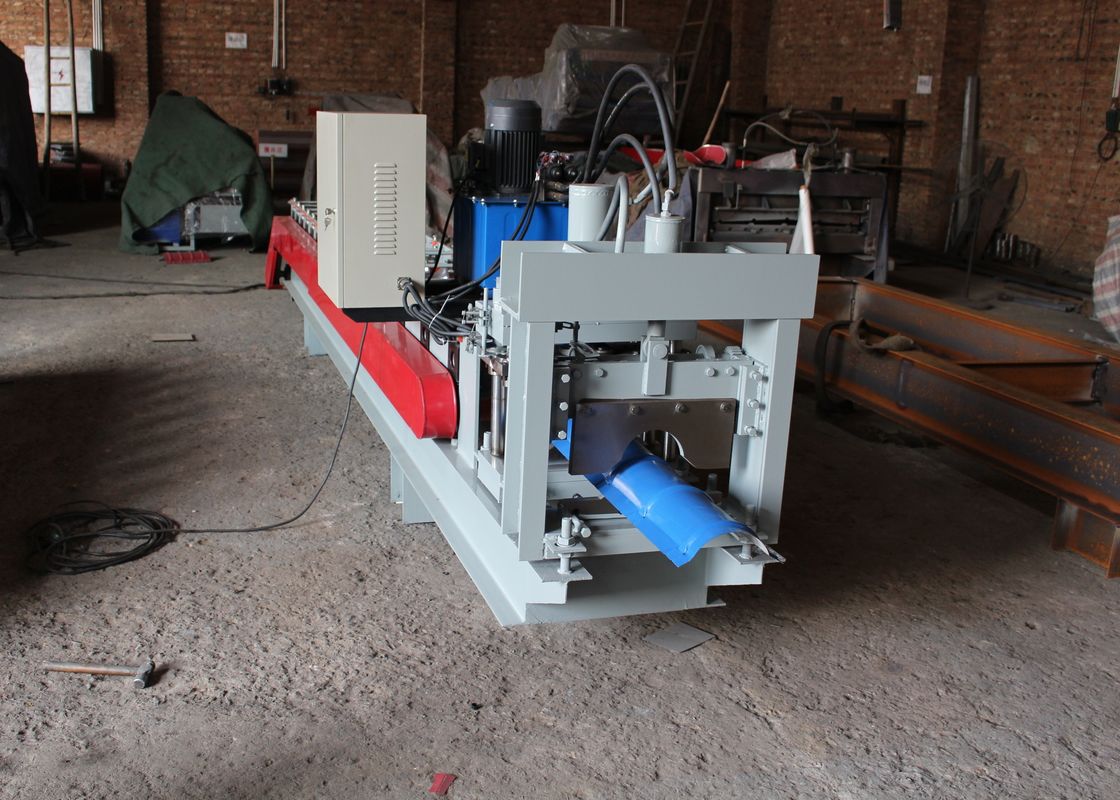

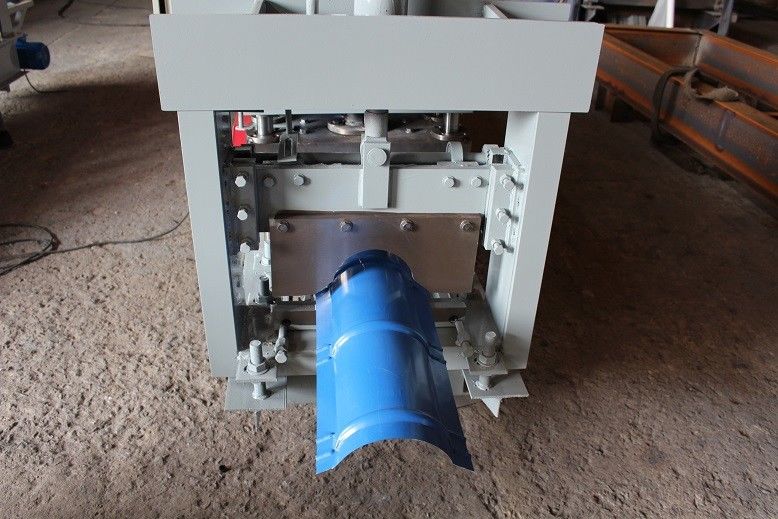

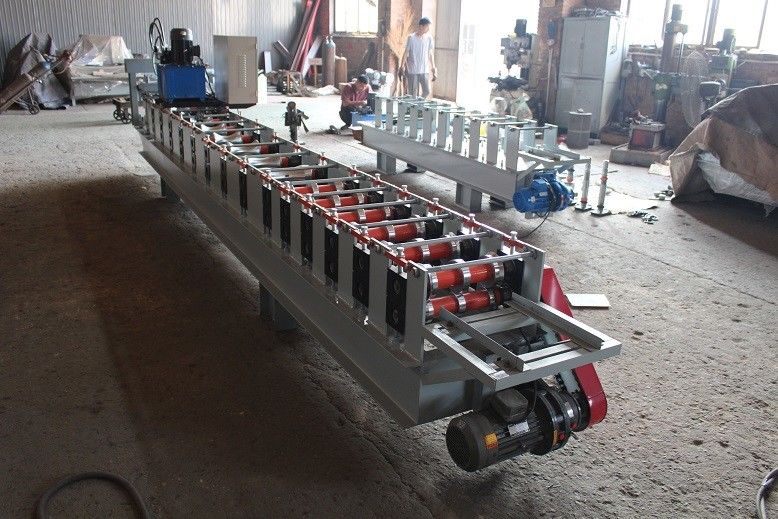

Anti Corrosion And Waterproof Roof Tile Ridge Roof Roll Forming Machine

The ridge tile forming equipment adopts roller forming technology and is used for hydraulic forming with a die. Products are widely used in the roof connection of building color steel plates. The host adopts programmable controller and touch screen control, and the speed is continuously adjustable. Fully automatic length setting and cutting, easy to operate. This machine can be customized according to customer requirements

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.9mm
3	Working Speed	15-20 m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4 KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

It is widely used in the production of various industrial plants, houses, warehouses and simple steel shed roof ridge tiles, and is beautiful and durable.

Advantage

The ridge tile forming machine can be produced continuously like other roll forming machines, replacing the tedious process of making ridge tiles with a bending machine, saving human resources and greatly reducing labor costs.

Ppgi Anti Corrosion Waterproof Roof Roll Forming Machine 0
