Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm

Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm

0.8mm shutter door roll forming machine

ppgl shutter door roll forming machine

rolling shutter door slats roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Bilah Rana

Hubungi Kami
Minta Penawaran Harga
Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm
Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm
Detail Produk
Nama Produk:
Mesin Roll Forming Pintu Rana Slat Berongga Punching
Bahan mentah:
PPGI,GI,PPGL GL
Kecepatan kerja:
10 m/mnt - 20 m/mnt Kecepatan Tinggi
Ketebalan material:
0,3 mm - 0,8 mm
Voltase:
380V 50Hz 3Phase
Kondisi:
Baru
Menyoroti:

0.8mm shutter door roll forming machine

,

ppgl shutter door roll forming machine

,

rolling shutter door slats roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 20'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min on line Video

Metal Chain Driving Shutter Door Roll Forming Machine Speed 20-30m/Min

Dapatkan Harga Terbaik
Harga bagus Customized High Speed PU Door Roller Shutter Roll Forming Machine on line Video

Customized High Speed PU Door Roller Shutter Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus 3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size on line Video

3T Shutter Door Roll Forming Machine For 0.8-1.2mm Thickness And 6.5m*0.95m*1.2m Size

Dapatkan Harga Terbaik
Harga bagus 45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System on line Video

45 Steel Roller Material Shutter Door Roll Forming Machine with 7.5KW PLC Control System

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

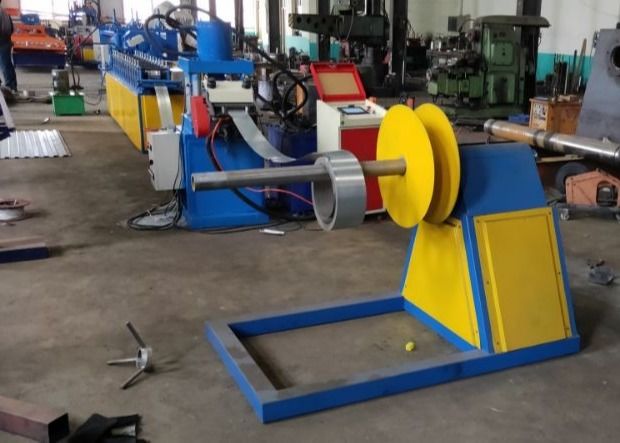

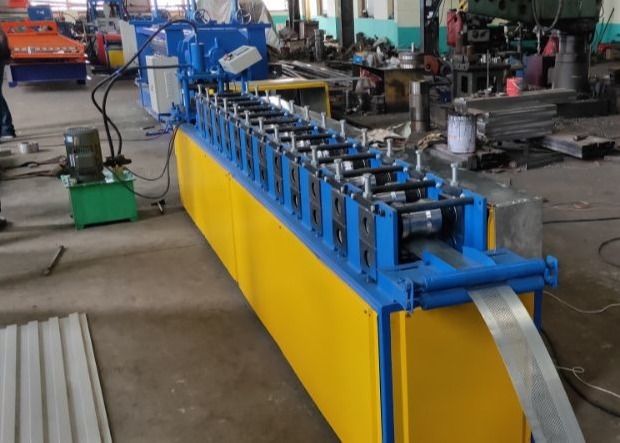

Punching Hollow Shutter Slat Shutter Door Roll Forming Machine



Controlled by the PLC control system, it is composed of an unwinding system, a punching system, a forming system, and a cutting system. It realizes a fully automatic operation mode and an automatic roll forming machine for roller blinds.



Specification



No. Item Description
1 Coil Galvalume, Galvanized
2 Raw Material Thickness 0.6 mm - 0.9 mm
3 Working Speed 10-20 m/min
4 Roller Station 12 Stations
5

Dimension (L*W*H)

 6500 mm*800 mm*1200 mm
6 Machine Weight 4000 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 5 KW
9

Hydraulic Station Power

 5 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

± 1 mm
12

Driving Mode

Gear Wheel
13

Material of Shaft

60 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



Rolling shutters are suitable for commercial facades,shopping malls,garage doors, fireproof rolling shutter doors of shopping malls, and hangar doors, factories, mining enterprises and other public places or residences. Especially where the door opening is large, the place where it is inconvenient to install the door body on the ground plays a role of convenient and quick opening.


Advantage



The rolling shutter door has beautiful appearance, compact and advanced structure, convenient installation, sturdy and durable, ventilated and breathable, does not occupy the ground, is flexible and convenient to open and close, and has a good anti-theft function.





Punching Hollow Slat PPGL Shutter Door Roll Forming Machine For 0.8mm 0
