Name: 640mm Glazed Steptile Ppgl Roof Tile Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: tangga
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

640mm Glazed Steptile Ppgl Roof Tile Roll Forming Machine

640mm roof tile roll forming machine

ppgl roof tile roll forming machine

ppgl glazed tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

tangga

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Model 640 Mesin Roll Forming Genteng Steptile Mengkilap

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Bahan mentah:

PL,GL,PPGI,PPGL

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Kecepatan:

18-20m/menit

Ketebalan:

0.3mm-0.8mm

Kekuatan:

3kw

LEBAR BAHAN BAKU:

1000 mm

Daya Stasiun Hidrolik:

3kw

Menyoroti:

640mm roof tile roll forming machine

ppgl roof tile roll forming machine

ppgl glazed tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

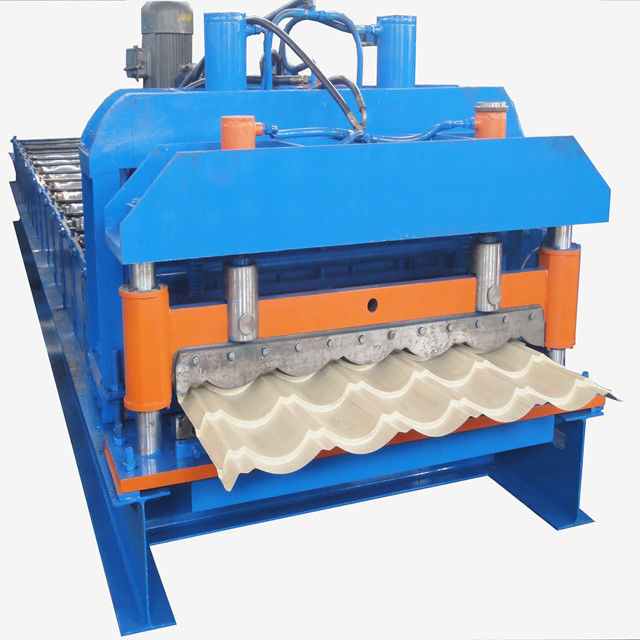

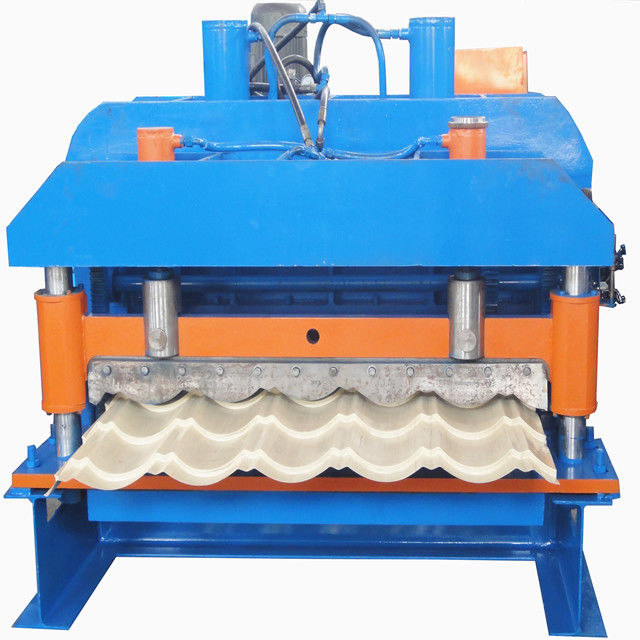

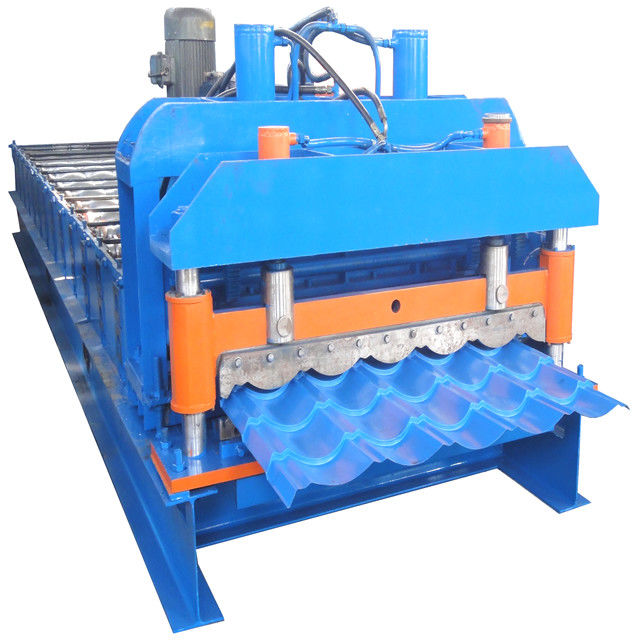

Model 640 Glazed Steptile Roof Tile Roll Forming Machine

Model 640 Glazed Steptile Roof Tile Roll Forming Machine adopts hydraulic creasing and hydraulic shearing has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3mm-0.8mm
3	Working Speed	15-20/min
4	Roller Station	16 Raws
5	Dimension (LWH)	4500 mm1200 mm1200 mm
6	Machine Weight	3800 KG
7	Electrical Control System	PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

Such tiles are suitable for daily buildings such as warehouses, special buildings, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.

Advantage

Ceramic tiles have anti-corrosion, acid resistance and other functions. It has the advantages of light weight, high strength, beautiful appearance, convenient and quick construction, earthquake resistance, fire resistance, rain and moisture resistance. Long life and other characteristics, so it is widely used in civil and industrial buildings
