6 Rib 840 Model Ibr Roof Tile Roll Forming Machine

ibr roof tile roll forming machine

ppgi roof tile roll forming machine

6 rib tile forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

IBR

Hubungi Kami

Minta Penawaran Harga

6 Rib 840 Model Ibr Roof Tile Roll Forming Machine

Detail Produk

Nama Produk:

Mesin Roll Forming Atap IBR Model 6 Rib 840

Bahan mentah:

Galvalum, Galvanis, PPGI, Aluminium

Sistem kontrol:

PLC

Ketebalan:

0.3-0.8mm

Jenis ubin:

mesin roll forming / mesin bahan bangunan

Kondisi:

Baru

Warna:

Sesuai permintaan pelanggan

Tenaga Motorik:

3.5kw

LEBAR BAHAN BAKU:

1000mm

Berat mesin:

4 T

Menyoroti:

ibr roof tile roll forming machine

ppgi roof tile roll forming machine

6 rib tile forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

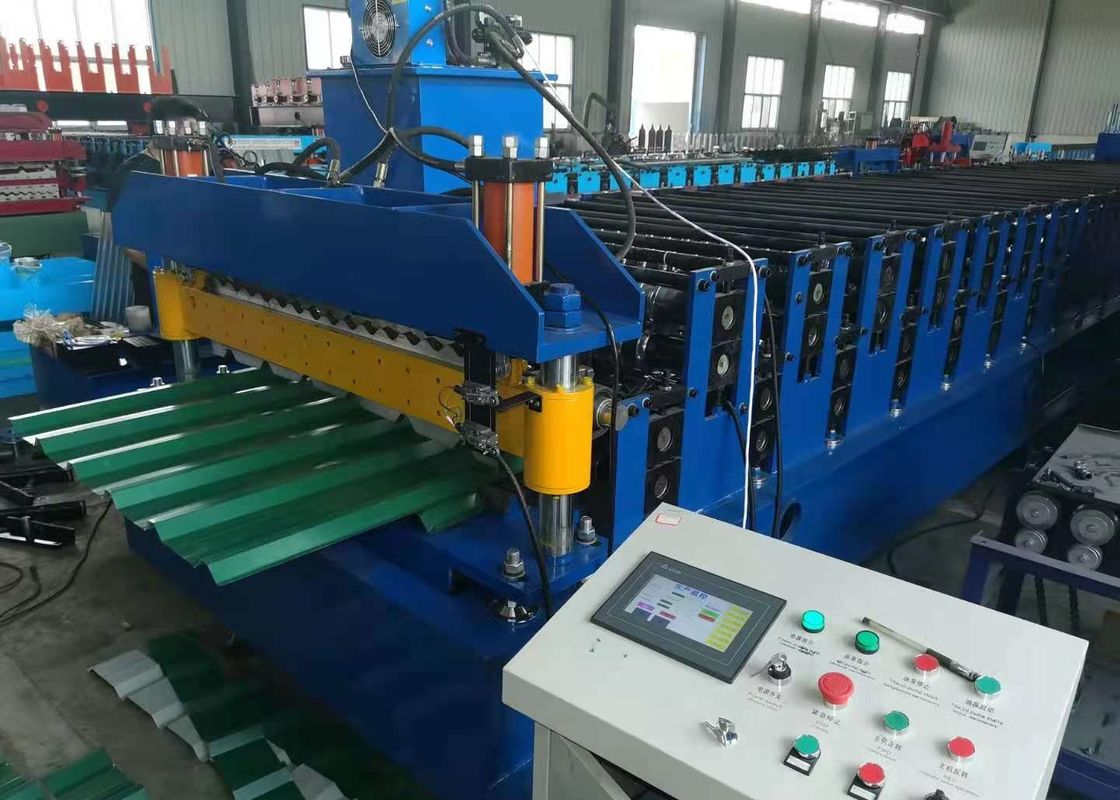

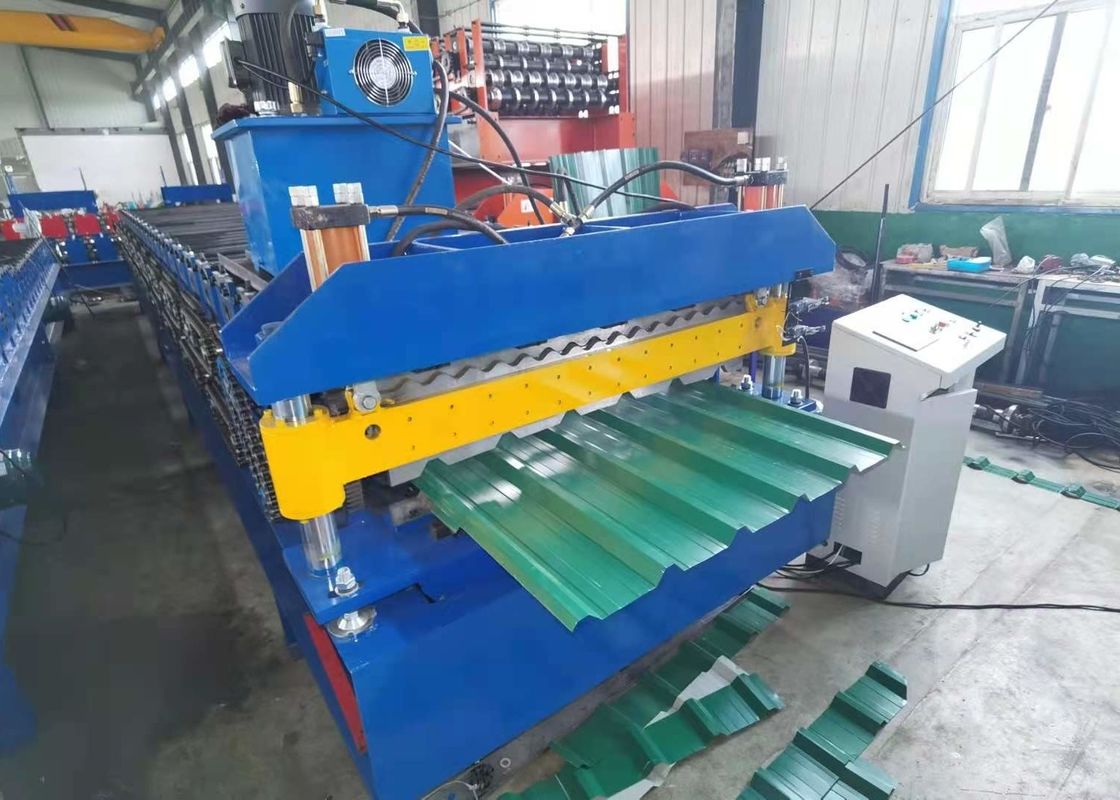

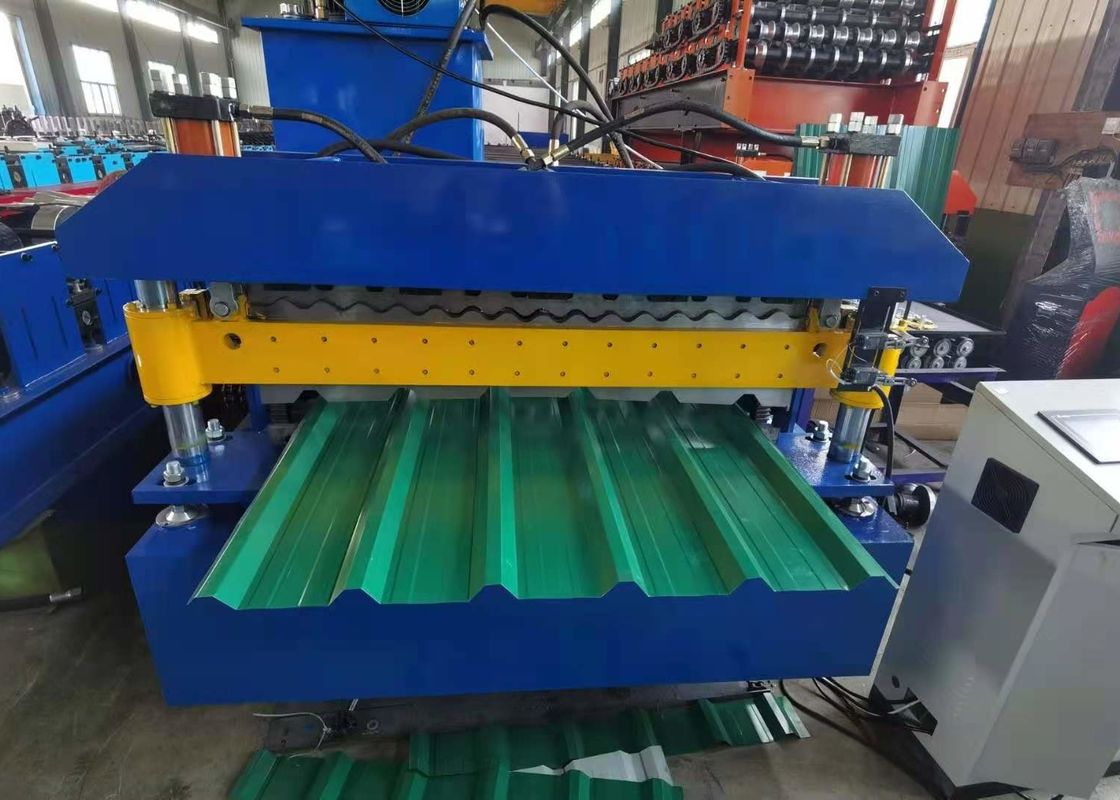

6 Rib 840 Model IBR Roof Roll Forming Machine

The 6Rib 840 IBR roof forming machine is an efficient production machine composed of several parts such as uncoiling, feeding, forming and cutting. The machine is easy to operate and can be operated independently by one or two workers. The color panels produced by it have a smooth appearance, no burrs, high strength, and durability.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-20m/min ( not including the cutting time)
4	Roller Station	12 Raws
5	Dimension (LWH)	58000 mm1200 mm1100 mm
6	Machine Weight	4000 KG
7	Electrical Control System	Delta PLC (can be customized)
8	Drive Motor Power	4KW
9	Hydraulic Station Power	4KW
10	Power Supply	380V, 60HZ, 3 PHASES(can be customized)
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

They are widely used Industrial and civil buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and other rooms, shopping malls, apartments, workshops, walls and roofs.

Advantage

Our company's main business includes a series of equipment such as double-layer tile machine, three-layer tile machine, glazed tile machine, square brick machine, floor machine, fully automatic CZ beam machine, plate shearing machine, bending machine, and punching machine.
We are committed to the research and development of various products, with supporting production equipment and development and design talents.The products produced have the advantages of accurate accuracy, strong flexibility, low processing loss, etc., and have a good cost performance.
