Name: Flying Cut System Plc Corrugated Roof Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Potongan Terbang
Price: 28,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Atap >

Flying Cut System Plc Corrugated Roof Roll Forming Machine

plc corrugated roof roll forming machine

versatile corrugated roof roll forming machine

plc corrugated roll former

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Potongan Terbang

Hubungi Kami

Minta Penawaran Harga

Flying Cut System Plc Corrugated Roof Roll Forming Machine

Detail Produk

Deskripsi produk:

Mesin Roll Forming Atap Bergelombang Sistem Flying Cut

Ketebalan:

0.3-0.8mm

Bahan poros:

bahannya adalah baja tempa 45#

Dimensi (P*L*T):

9500*1550*1500mm

Sistem Pengendalian:

PLC

Kecepatan:

20-25MPM

Voltase:

380V 50HZ 3PH

Berat:

6 ton

Menyoroti:

plc corrugated roof roll forming machine

versatile corrugated roof roll forming machine

plc corrugated roll former

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Kemasan rincian

Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.

Waktu pengiriman

30 hari

Syarat-syarat pembayaran

T/T, Western Union

Menyediakan kemampuan

20 set per bulan

Produk terkait

Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik

Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik

Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik

Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

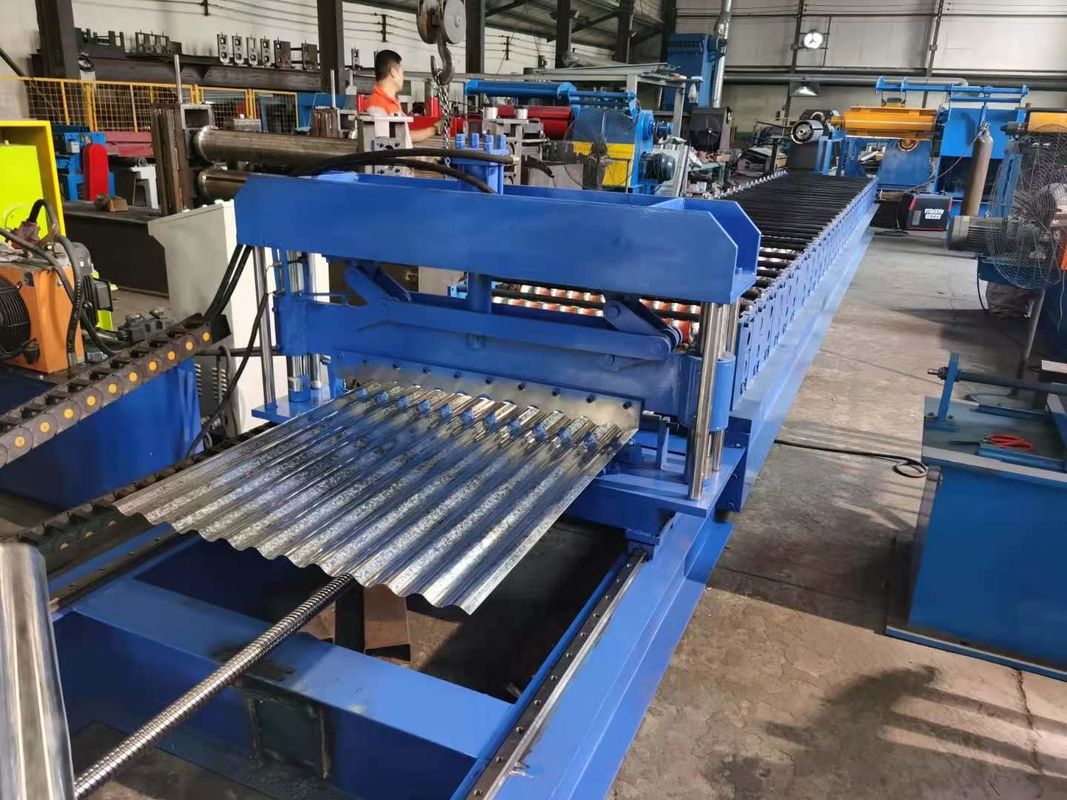

Flying Cut System Corrugated Roof Roll Forming Machine

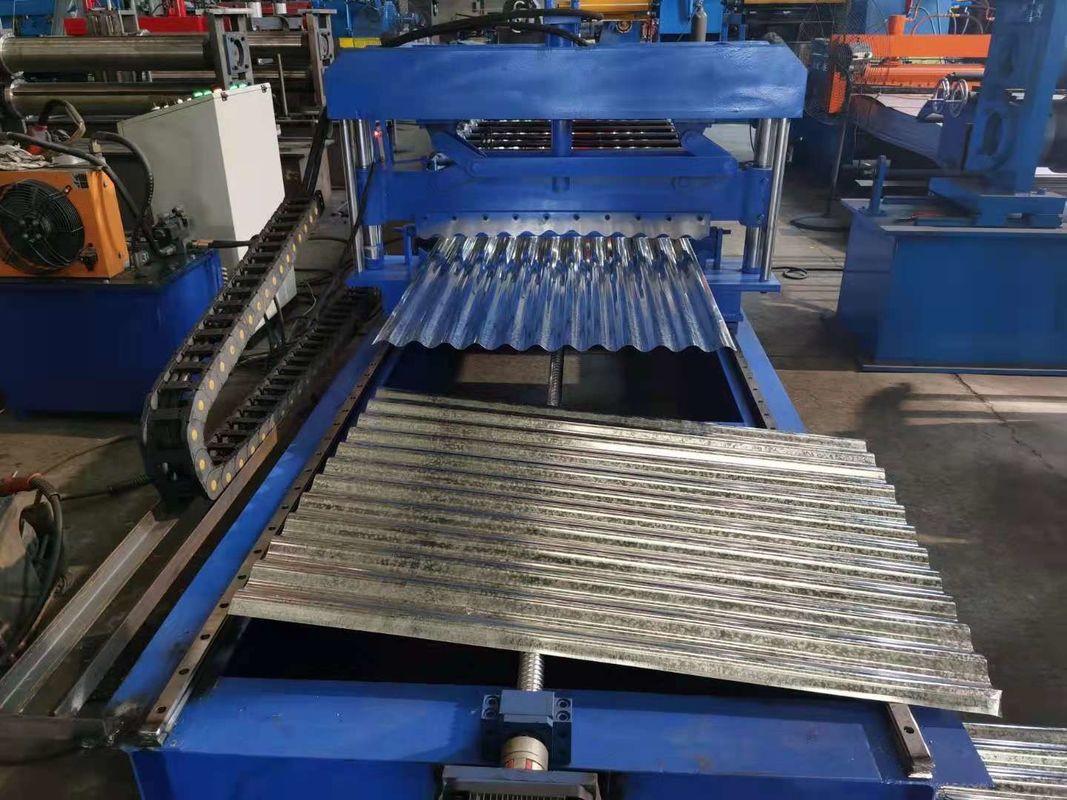

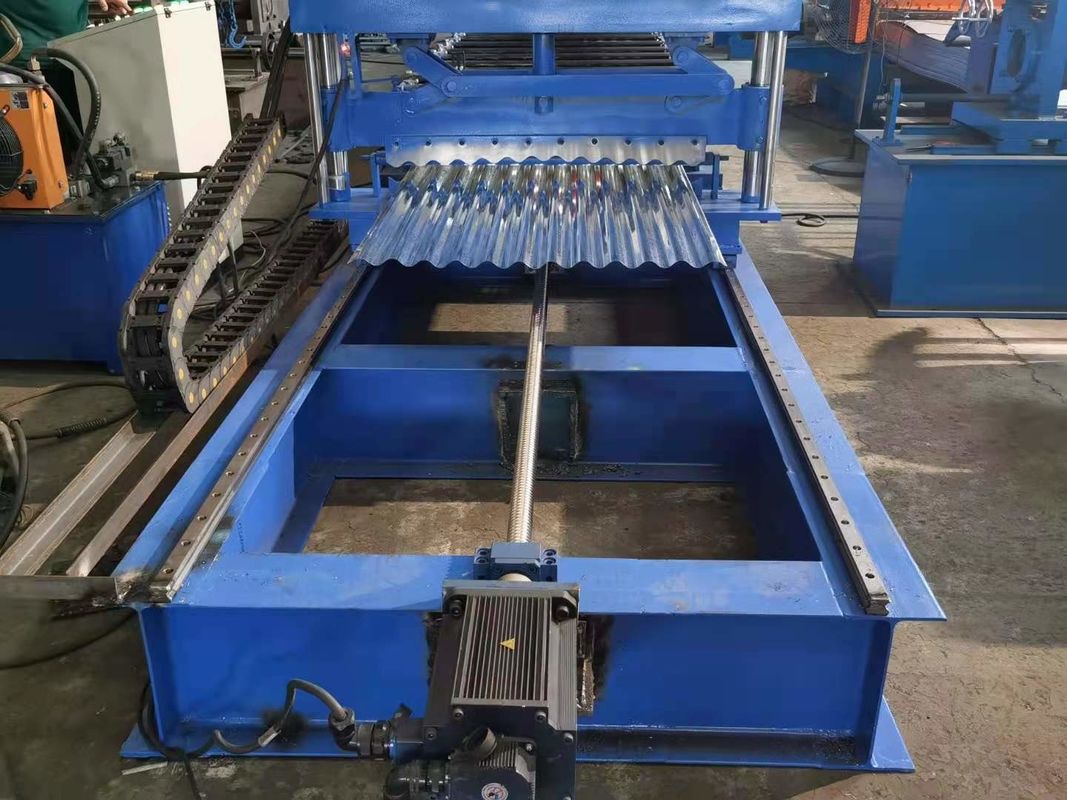

The machine is equipped with a tracking shear system. The flying shear system automatically generates numerical commands to drive the shearing machine according to the cutting length and feed speed. When the "feed length" is close to the "set length" position, the shearing machine will accelerate or decelerate. While accurately positioning the cutting position, the shearing machine and the material realize the speed synchronization to realize the cutting.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	950015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.3-0.8mm
8	Productivity	20-25m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The color steel produced by the above machines is suitable for industrial and civil buildings, warehouses, laboratories, roofs, walls, large-span steel structure houses, and construction site guardrails.

Advantage

This flying cut system machine can meet the cutting requirements of users with high precision (error less than ±1mm), high speed, wide width, high efficiency, high reliability, etc., and realize precise positioning and fast response.
