Name: Trapezoid 760mm 5 Ribs PLC Roof Tile Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Trapesium 760
Price: 16,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Roll Forming Genteng >

Trapezoid 760mm 5 Ribs PLC Roof Tile Roll Forming Machine

760mm roof tile roll forming machine

760mm tile roll forming machine

PLC roof tile roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Trapesium 760

Hubungi Kami

Minta Penawaran Harga

Detail Produk

Nama Produk:

Mesin Roll Forming Trapesium 760 Genteng 5 Tulang Rusuk

Layanan purna jual disediakan:

Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana

Bahan mentah:

Lembaran PPGI/Galvanis

Voltase:

380/50Hz/3PH

Sistem Pengendalian:

PLC

Kecepatan:

15-25m/mnt

Ketebalan:

0.3mm-0.8mm

Kekuatan:

3kw

Lebar efektif:

760mm

Daya Stasiun Hidrolik:

3kw

Menyoroti:

760mm roof tile roll forming machine

760mm tile roll forming machine

PLC roof tile roll forming machine

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

negotiable

Kemasan rincian

FLC 40'

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/c, t/t, d/a, d/p

Menyediakan kemampuan

25 set per bulan

Produk terkait

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik

Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik

Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik

Hubungi Kami

86-317-2016816

Hubungi Sekarang

Deskripsi produk

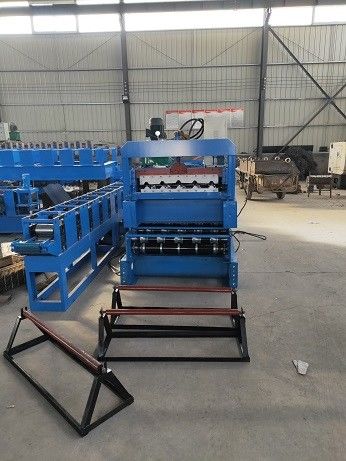

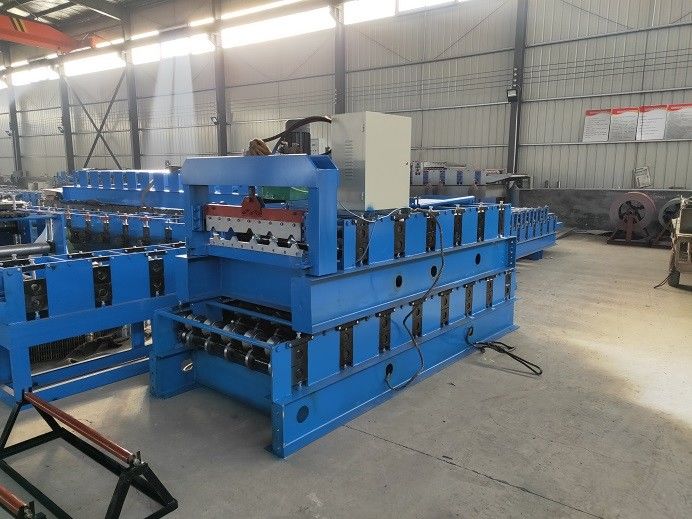

Trapezoid 760 Roof Tile 5 Ribs Roll Forming Machine

Trapezoid 760 is our company’s hot selling machine. Sell more than a dozen units every month. Due to the stable operation, high efficiency and low energy consumption of the machine, it can effectively save customers production costs and labor costs.

Specification

No.	Item	Description
1	Coil	Galvalume, Galvanized, PPGI, Aluminum
2	Raw Material Thickness	0.3-0.8mm
3	Working Speed	15-25/min
4	Roller Station	18 Raws
5	Dimension (LWH)	7500 mm1200 mm1200 mm
6	Machine Weight	4500 KG
7	Electrical Control System	Panasonic PLC
8	Drive Motor Power	3 KW
9	Hydraulic Station Power	3 KW
10	Power Supply	380V/60HZ/3 PH
11	Cutting Accuracy	±2 mm
12	Driving Mode	Single Chain 1 inch
13	Material of Shaft	70 mm 45#steel forged
14	Material of Roller	45# Steel Finish Machining, Plated Hard

Application

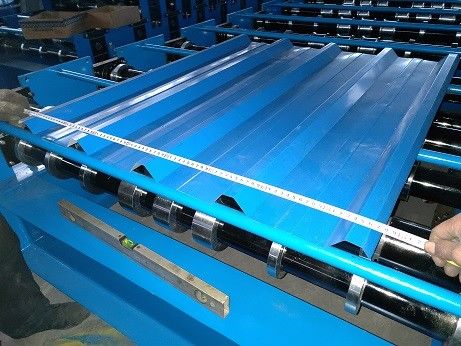

This type of tile is suitable for all kinds of buildings, such as warehouses, apartments, shopping malls, laboratories, garages, garages and the interior and exterior wall decoration of large-span steel structure houses.

Advantage

This profile tiles are mostly used for roofing, wall and interior and exterior wall decoration of buildings, . It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. It have been welcomed by the most of users.
