Integrated Interchange 3mm Cz Purlin Roll Forming Machine

Integrated Interchange 3mm Cz Purlin Roll Forming Machine

3mm cz purlin roll forming machine

integrated cz purlin roll forming machine

interchange cz roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Mesin CZ Purlin

Hubungi Kami
Minta Penawaran Harga
Integrated Interchange 3mm Cz Purlin Roll Forming Machine
Integrated Interchange 3mm Cz Purlin Roll Forming Machine Integrated Interchange 3mm Cz Purlin Roll Forming Machine Integrated Interchange 3mm Cz Purlin Roll Forming Machine Integrated Interchange 3mm Cz Purlin Roll Forming Machine
Detail Produk
Nama Produk:
Mesin Roll Forming Purlin Pertukaran Terpadu CZ
Bahan mentah:
Galvalum, Galvanis
Dimensi (P*L*T):
7000 mm*1500 mm* 1500
Ketebalan material:
1 mm - 3 mm
Berat:
5t
Kapasitas Produksi:
10-20m/mnt
Voltase:
380V/50Hz/3ph
Tenaga motor utama::
15kw
Menyoroti:

3mm cz purlin roll forming machine

,

integrated cz purlin roll forming machine

,

interchange cz roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction on line Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik
Harga bagus Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings on line Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency on line Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel on line Video

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

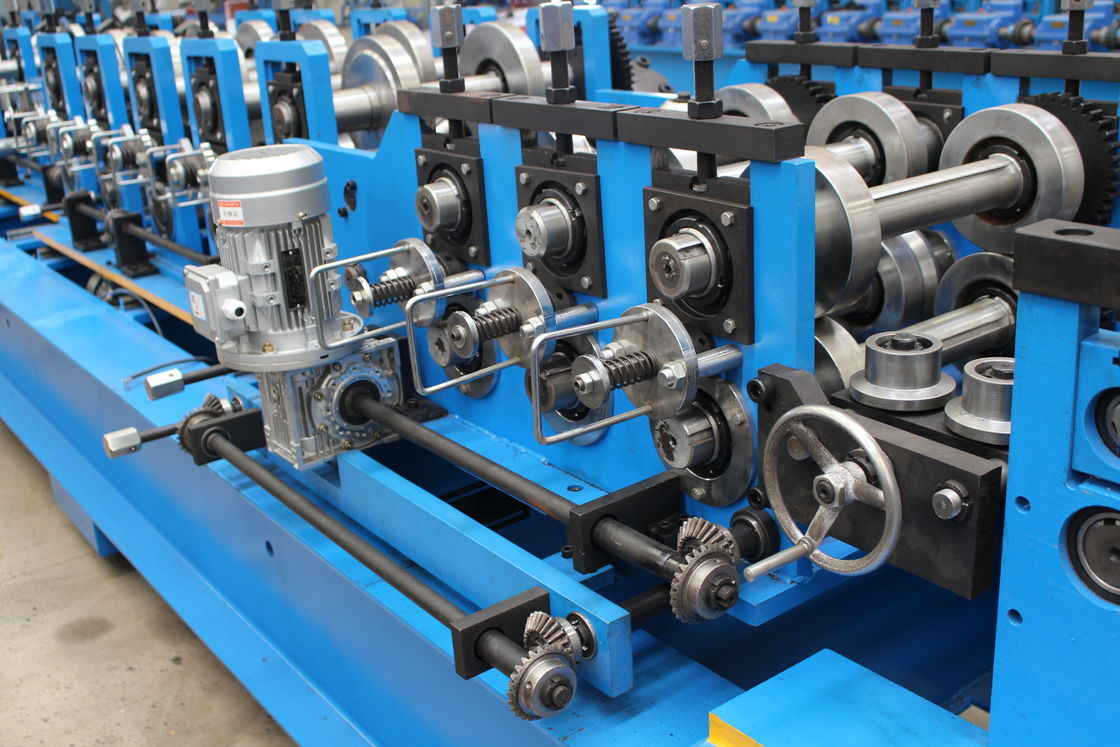

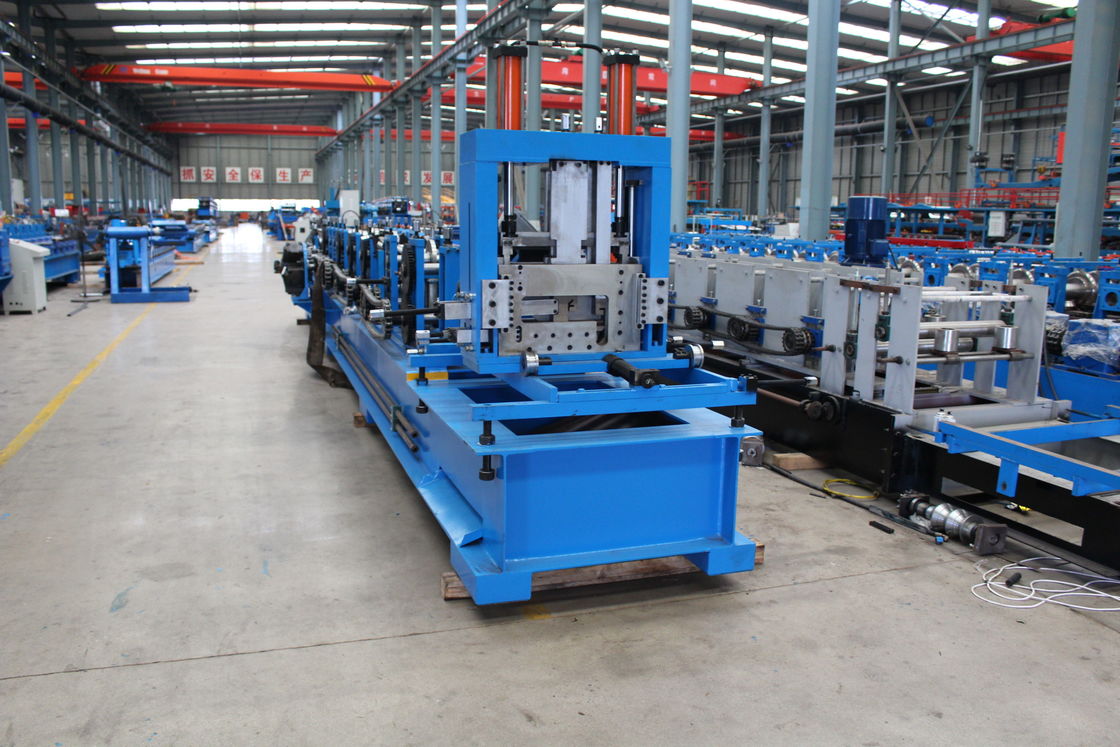

CZ Integrated Interchange Purlin Roll Forming Machine



CZ Channel Adjustable Purlin Roll Forming Machine is make C-type machine and Z-type machine in one.
This equipment can change C Z two type of purlin in short time by manual .


Specification



No. Item Description
1 Coil Galvanized
2 Material Thickness  1 mm- 3 mm
3 Working Speed 10- 20 m/min ( not including the cutting time)
4 Roller Station 12-16 Raws
5

Dimension (L*W*H)

 7000 mm*1000 mm*1300 mm
6 Machine Weight 5000 KG
7

Electrical Control System

Panasonic PLC
8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 15 KW
10

Power Supply

360V/60HZ/3PH
11

Cutting Accuracy

±2 mm
12

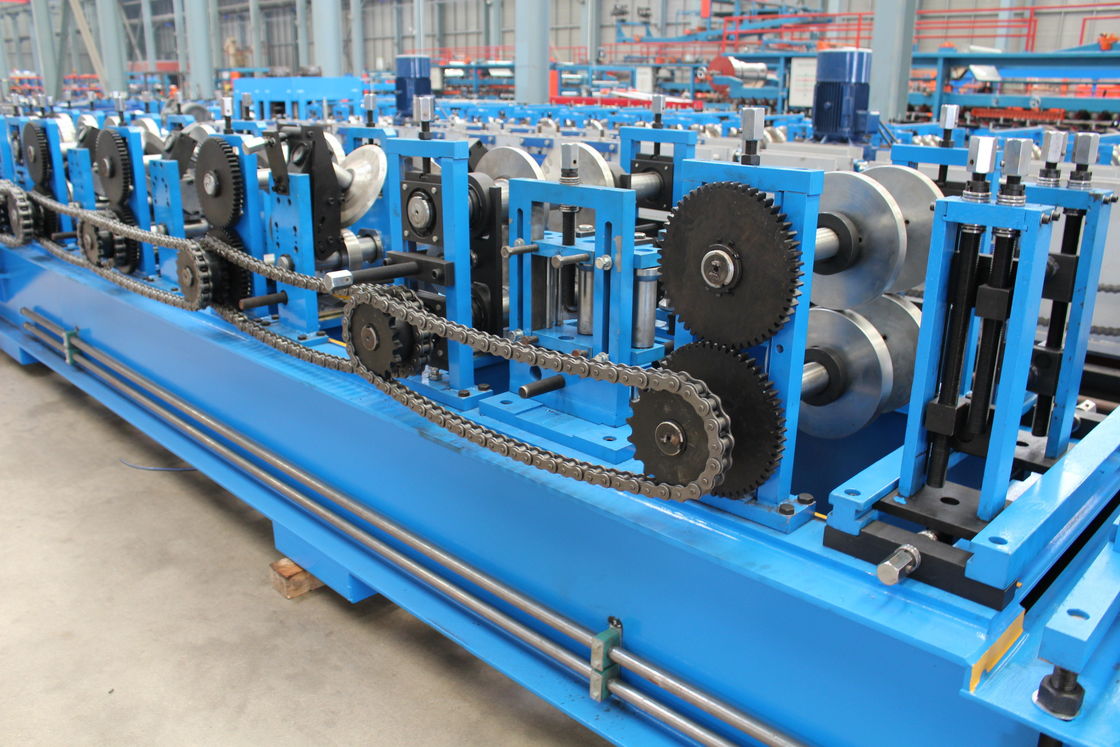

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard





Application



Mostly applicate in remove room, apartment,Workshops, warehouses, shopping malls and other buildings. C-shaped and Z-shaped steel are used as beams, supports and tie rods. Its safety factor is quite high and its bearing capacity can also meet the requirements. It can also be used on roofs to support roof and wall panels.



Advantage



This adjustment roll forming machine with two different CZ profiles, and can realize the conversion of the two profiles without replacing the forming roller. Very fast, very efficient.
C-purlin has good straightness and good compressive and flexural properties. Z-purlin can be installed in reverse lap to increase the installation strength of connection points.





Integrated Interchange 3mm Cz Purlin Roll Forming Machine 0
