900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine

trapezoid ibr roll forming machine

900mm ibr roll forming machine

hydraulic shear ibr roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Profil IBR 900

Hubungi Kami
Minta Penawaran Harga
900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine 900mm Trapezoid Hydraulic Shear Ibr Roll Forming Machine
Detail Produk
Nama Produk:
Mesin Roll Forming Atap Geser Hidrolik Trapesium IBR 900
Bahan mentah:
Galvalum, Galvanis, PPGI, Aluminium
Sistem kontrol:
PLC
Ketebalan:
0.3-0.8mm
Jenis ubin:
mesin roll forming / mesin bahan bangunan
Kondisi:
Baru
Warna:
Sesuai permintaan pelanggan
Tenaga Motorik:
3.5kw
LEBAR BAHAN BAKU:
1000mm
Berat mesin:
4 ton
Menyoroti:

trapezoid ibr roll forming machine

,

900mm ibr roll forming machine

,

hydraulic shear ibr roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
25 set per bulan
Produk terkait
Harga bagus Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line on line Video

Standard Corrugated Galvanized Sheets Machine Standard Corrugated Galvanized Sheets Line

Dapatkan Harga Terbaik
Harga bagus Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine on line Video

Corrugated Sheet Machine Corrugated Roofing Tile Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw on line Video

Metal Roof Tile Trapezoidal Roll Forming Machine 5.5kw

Dapatkan Harga Terbaik
Harga bagus High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine on line Video

High Material Quality C89 Light Gauge Steel Framing Building Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

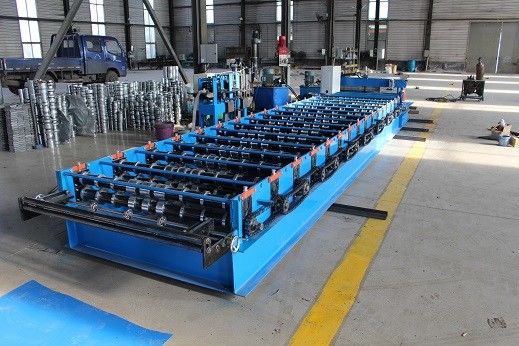

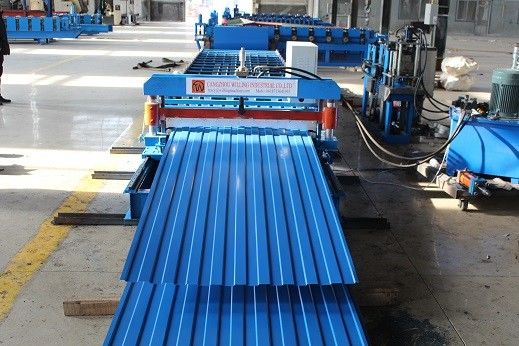

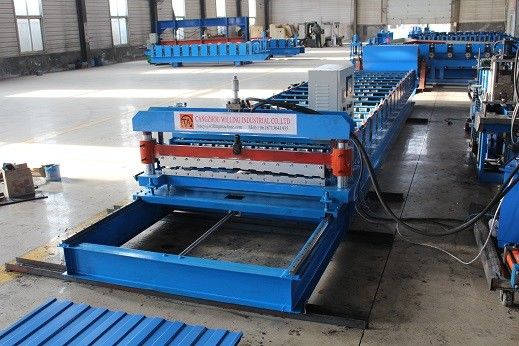

IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine



IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machine is accompanied by the efficient integration of PLC computer control system, hydraulic pump station system, and fully automatic post-shearing system. So as to efficiently meet the different needs of customers





Specification



No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm
3 Working Speed 20-30 m/min ( not including the cutting time)
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 58000 mm*1200 mm*1100 mm
6 Machine Weight 4000 KG
7

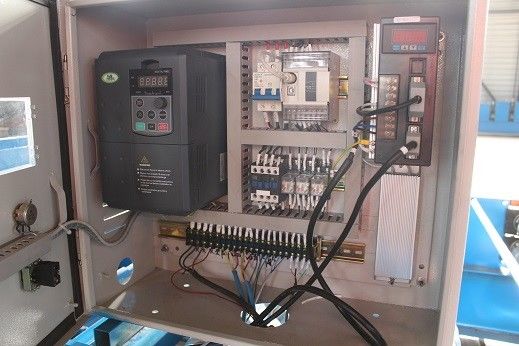

Electrical Control System

Delta PLC (can be customized)
8

Drive Motor Power

 3.5KW
9

Hydraulic Station Power

 3.5KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



The color steel plate products produced by IBR 900 Trapezoid Hydraulic Shear Roof Roll Forming Machineare widely used in construction household appliances and transportation industries. For the construction industry, they are mainly used for the roof walls and doors of industrial and commercial buildings such as steel structure factories, airports, warehouses, and refrigeration. Fewer color steel plates are used in buildings.



Advantage



The advantages of color steel plates are good corrosion resistance, bright colors, beautiful appearance, convenient processing and forming, and have the advantages of the original strength of steel plates and low cost.
