Hydraulic Shear Double Layer Roll Forming Machine 18m/Min Automatic

Hydraulic Shear Double Layer Roll Forming Machine 18m/Min Automatic

double layer roll forming machine 18m/min

hydraulic shear double layer forming machine

double layer roll forming machine automatic

Tempat asal:

CINA

Nama merek:

cangzhou willing

Sertifikasi:

CE,ISO

Nomor model:

Lapisan ganda

Hubungi Kami
Minta Penawaran Harga
Hydraulic Shear Double Layer Roll Forming Machine 18m/Min Automatic
Hydraulic Shear Double Layer Roll Forming Machine 18m/Min Automatic
Detail Produk
Deskripsi produk:
Mesin Roll Forming Geser Hidraulik Otomatis Lapisan Ganda
Ketebalan:
0.3-0.8mm
Bahan poros:
bahannya adalah baja tempa 45#
Dimensi (P*L*T):
8500*1550*1500mm
Sistem Pengendalian:
PLC
Kecepatan:
15-18M/Menit
Voltase:
380V 50HZ 3PH
Berat:
6 ton
Menyoroti:

double layer roll forming machine 18m/min

,

hydraulic shear double layer forming machine

,

double layer roll forming machine automatic

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Kemasan rincian
Mesin utama telanjang, kotak kontrol komputer dikemas dengan plastik.
Waktu pengiriman
30 hari
Syarat-syarat pembayaran
T/T, Western Union
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

High Speed Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

New Style Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine on line Video

2025 factory price hot sale Trapezoidal and glazed Double Layer Roof sheet roofing tile Forming Machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine on line Video

2025 New Trapezoidal and glazed Double Layer Roof sheet roofing tile Roll Forming Machine

Dapatkan Harga Terbaik
Hubungi Kami
Hubungi Sekarang
Deskripsi produk

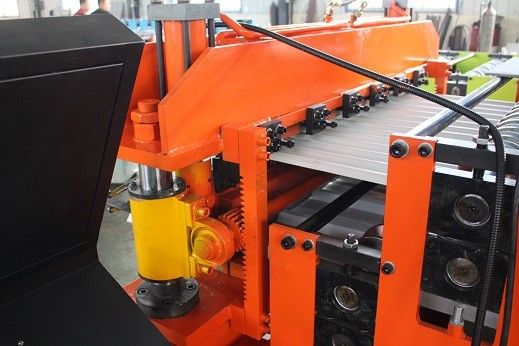

Double Layer Automatic Hydraulic Shear Roll Forming Machine




Double Layer Automatic Hydraulic Shear Roll Forming Machine One machine for two purposes, small floor space, convenient transportation, and cost-saving. Our factory has perfect after-sales service, and can carry out special design and manufacture according to user requirements, and at the same time guide users, production, installation, debugging and maintenance.




Equipment Detailed Parameters:



1

 Suitable Material PPGI (235Mpa)

2

 Width of the raw material 1250mm
3 Rows of rollers 15 rows & 16 rows
4 Dimension 7300*1550*1200mm
5

Main servo

7.5kw
6 Hydraulic station power 11kw
7 Thickness of raw material 0.3-0.8mm

8

Productivity

 15-18m/min
9 Diameter of shaft ￠75mm

10

 Voltage 380V 50Hz 3phases
11 Frame 350H steel
112 Middle plate 16mm



Application



The color steel manufactured by the above machines is suitable for industrial and civil buildings, warehouses, special buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses, etc.



Advantage



The double-layer tile machine is economical and can combine two types of equipment into one. in other words, it saves floor space, and the equipment cost of the double-layer tile machine is much lower than that of two single-layer machines. equipment adopts PLC control system and electric control system with text screen display. Easy to operate and easy to use .The profiled plate rolled by the double-layered tile machine is not only solemn and elegant, It also beautiful and novel.
