Rumah > Produk > Mesin Pembentuk Gulungan CZ Purlin >
Channel C Stop Cutting System 3mm Purlin Forming Machine

Channel C Stop Cutting System 3mm Purlin Forming Machine

3mm c purlin forming machine

3mm purlin forming machine

PLC purlin forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Saluran C

Hubungi Kami
Minta Penawaran Harga
Channel C Stop Cutting System 3mm Purlin Forming Machine
Channel C Stop Cutting System 3mm Purlin Forming Machine Channel C Stop Cutting System 3mm Purlin Forming Machine Channel C Stop Cutting System 3mm Purlin Forming Machine Channel C Stop Cutting System 3mm Purlin Forming Machine
Detail Produk
Nama Produk:
Saluran C Berhenti Sistem Pemotongan Mesin Roll Forming Purlin
Bahan mentah:
PPGI,PPGL,PL,GL
Kecepatan:
8-15m / mnt
Ketebalan material:
1 mm - 3 mm
Berat:
8 ton
Jaminan:
1 tahun
Kekuatan:
15kw
Sistem Pengendalian:
PLC
Menyoroti:

3mm c purlin forming machine

,

3mm purlin forming machine

,

PLC purlin forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction on line Video

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Dapatkan Harga Terbaik
Harga bagus Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings on line Video

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency on line Video

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Dapatkan Harga Terbaik
Harga bagus CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel on line Video

CZ Purlin Roll Forming Machine with 7000*1400*1500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

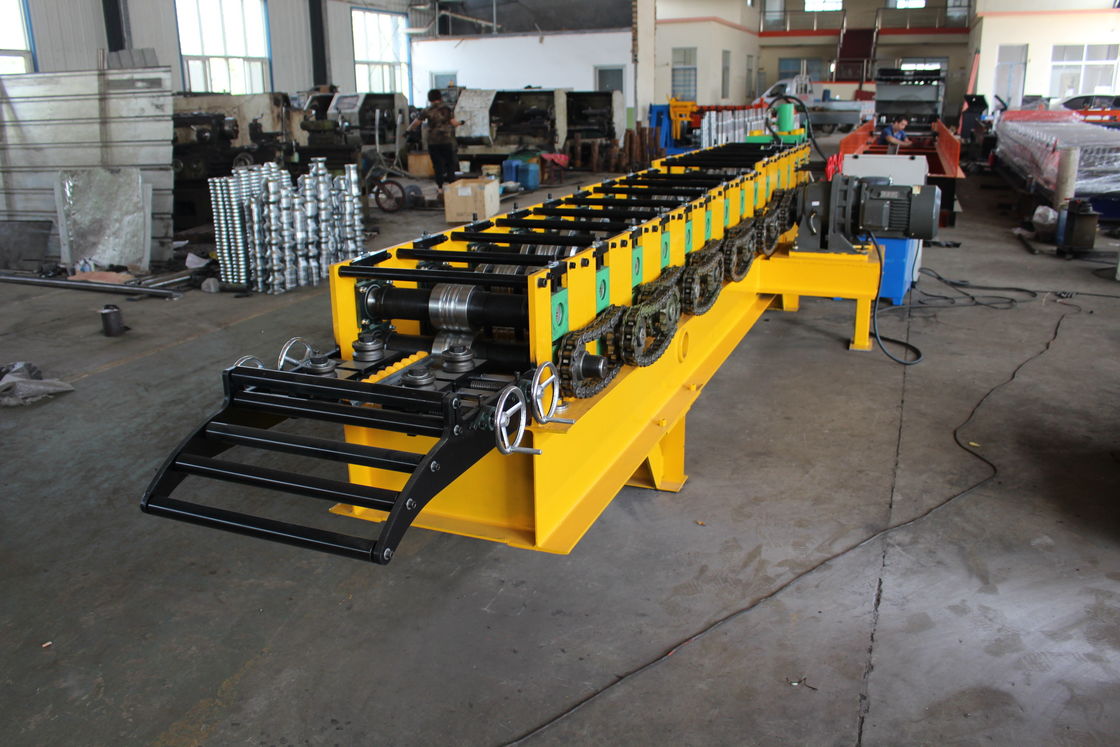

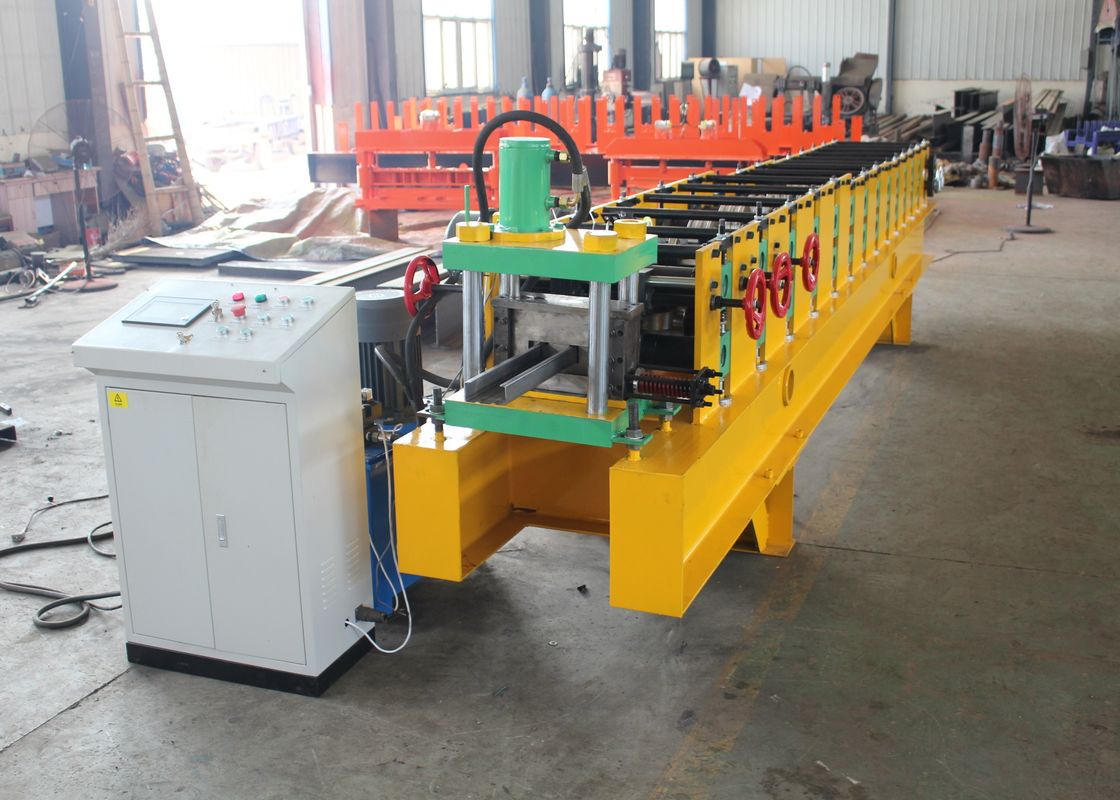

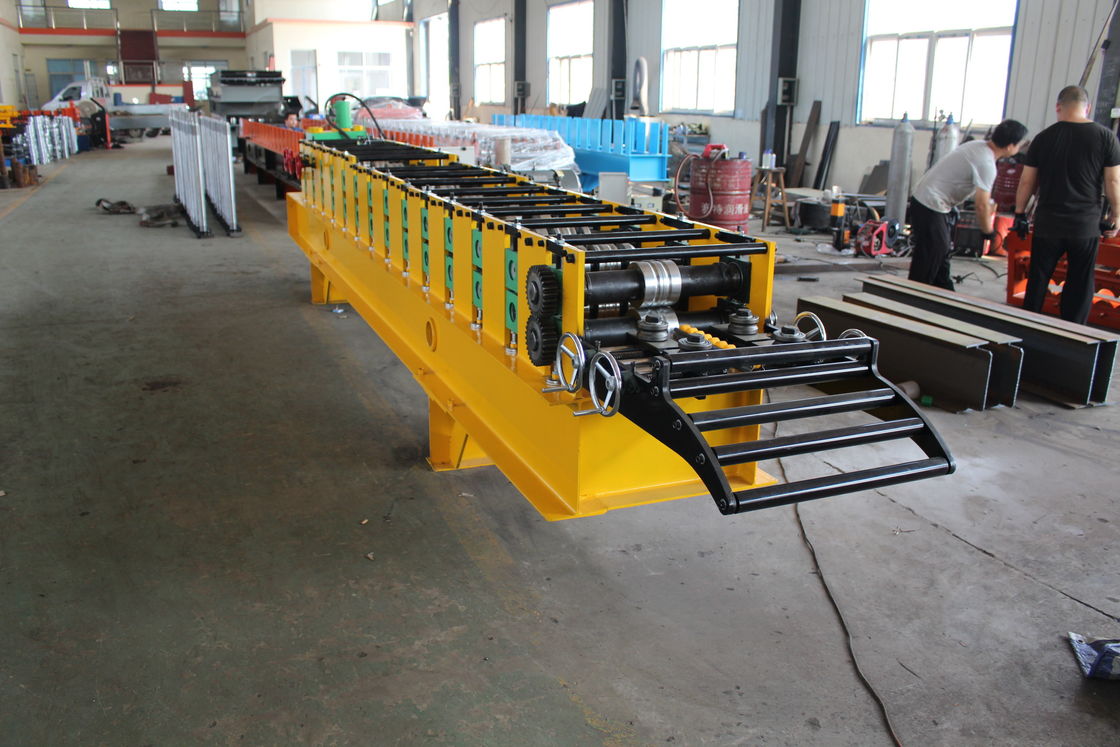

Channel C Stop Cutting System Purlin Roll Forming Machine



Channel C Stop Cutting System Purlin Roll Forming Machine can produce roof slats and ceiling slats of 40mm, 45mm, 60mm and any other size you need.
We can help customers to design machines according to the different requirements of logo punching and embossing, and we can work with customer team to create a good shape with the special characters of customer factory





Specification



No. Item Description
1 Coil Galvanized
  Material Thickness 1 mm- 3 mm
3 Working Speed 15- 20 m/min ( not including the cutting time)
4 Roller Station 14 Raws
5

Dimension

 6500*1300*1200
6 Machine Weight 8000 KG
7

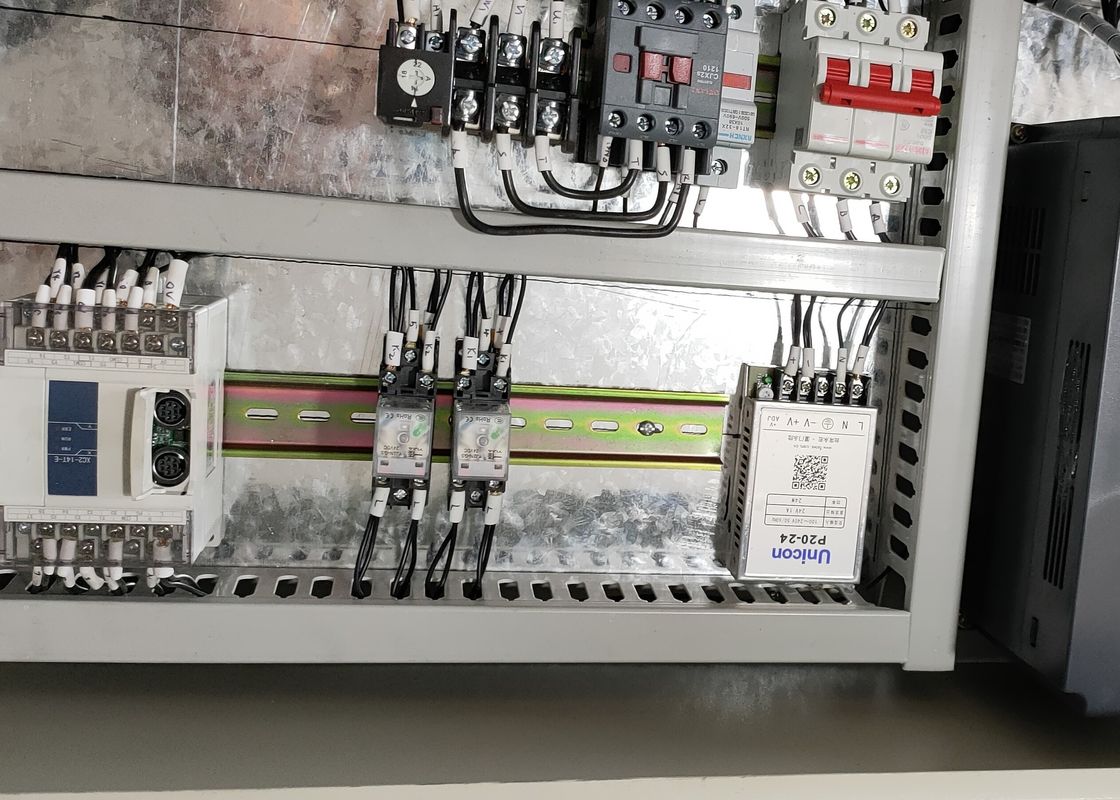

Electrical Control System

PLC
8

Drive Motor Power

 15KW
9

Hydraulic Station Power

 15 KW
10

Power Supply

380V, 60HZ, 3 PHASES(can be customized)
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 2 inch
13

Material of Shaft

80 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



C-slot machine is used to produce C-type purlins, suitable for hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration, roofs and other places. C slot machine materials are galvanized steel sheet, snowflake sheet, cold rolled steel sheet, etc.



Advantage



The C-channel purlin forming machine adopts a servo motor tracking and cutting system, which can produce 8-15 meters per minute. The body is a column structure with a safety shield. It can effectively prevent workers from being injured during the operation.



Channel C Stop Cutting System 3mm Purlin Forming Machine 0
