Rumah > Produk > Mesin Roll Forming Genteng >

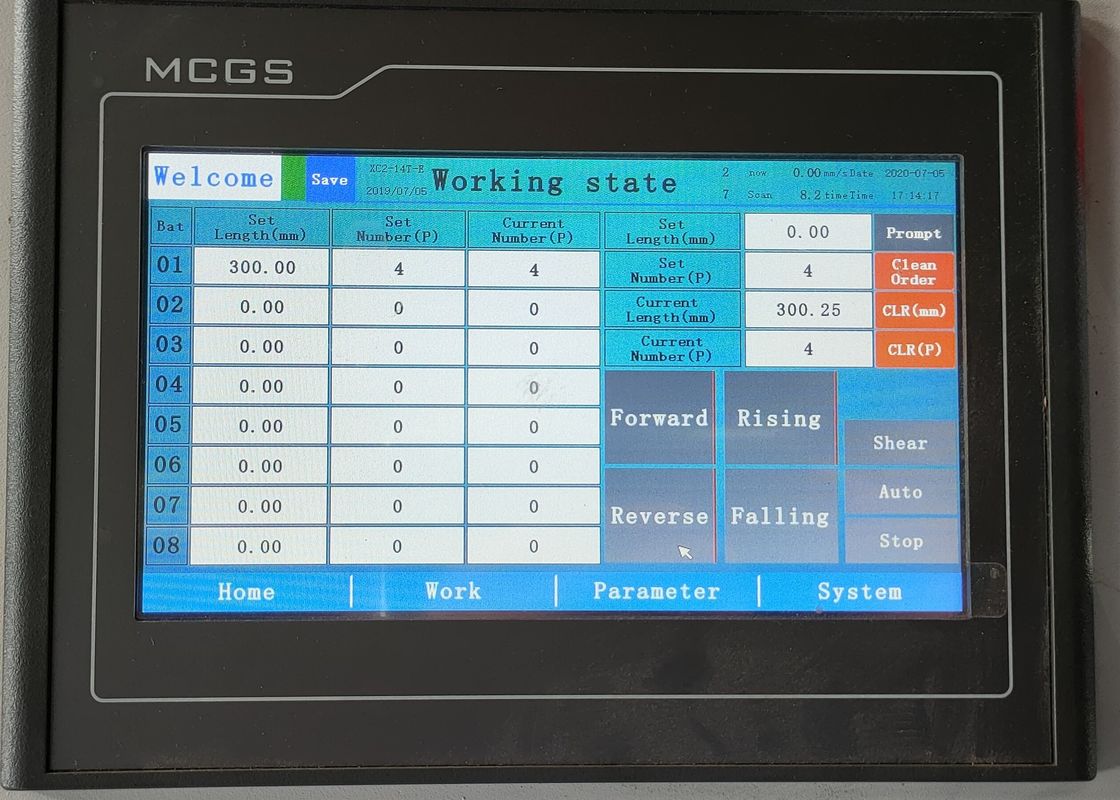

Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine

Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine

Touchscreen Roof Tile Roll Forming Machine

840mm Roof Tile Roll Forming Machine

840mm corrugated roof roll forming machine

Tempat asal:

China daratan

Nama merek:

CANGZHOU WILLING

Sertifikasi:

ISO CE

Nomor model:

Bergelombang

Hubungi Kami
Minta Penawaran Harga
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine Corrugated 840mm Touchscreen Roof Tile Roll Forming Machine
Detail Produk
Nama Produk:
Mesin Roll Forming Genteng Layar Sentuh 840 Bergelombang
Layanan purna jual disediakan:
Insinyur tersedia untuk mesin layanan di luar negeri, dukungan teknis video, dukungan online, layana
Bahan mentah:
PL,GL,PPGI,PPGL
Voltase:
380/50Hz/3PH

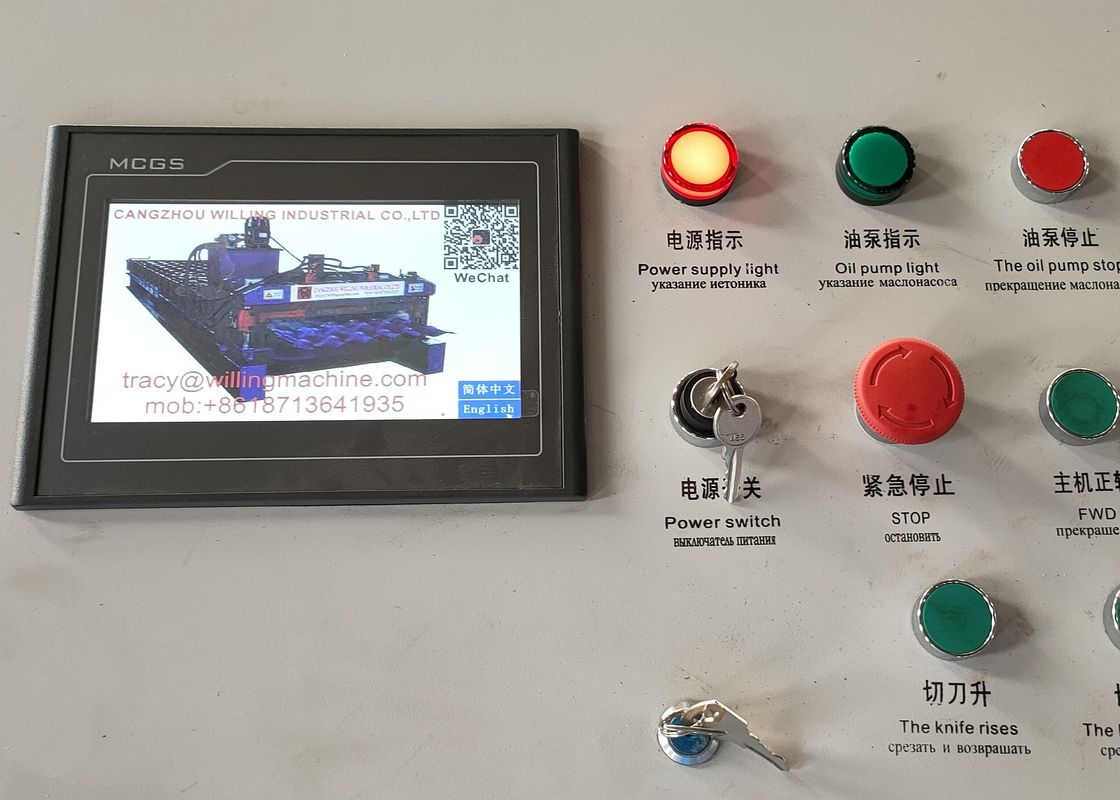

Sistem Pengendalian:
PLC
Kecepatan:
15-20m/mnt
Ketebalan:
0.3mm-0.8mm
Kekuatan:
3kw
LEBAR BAHAN BAKU:
1000 mm
Daya Stasiun Hidrolik:
3kw
Menyoroti:

Touchscreen Roof Tile Roll Forming Machine

,

840mm Roof Tile Roll Forming Machine

,

840mm corrugated roof roll forming machine

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 Set
Harga
negotiable
Kemasan rincian
FLC 40'
Waktu pengiriman
30 hari kerja
Syarat-syarat pembayaran
L/c, t/t, d/a, d/p
Menyediakan kemampuan
20 set per bulan
Produk terkait
Harga bagus 6m Automatic Stacker for Roof Sheet Roll Forming Machine on line

6m Automatic Stacker for Roof Sheet Roll Forming Machine

Dapatkan Harga Terbaik
Harga bagus the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine on line Video

the factory price for 0.3-0.8mm thickness Glazed Roof sheet forming machine

Dapatkan Harga Terbaik
Harga bagus 2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows on line Video

2025 New Design for Glazed Roof Tile Roof Sheet Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik
Harga bagus 4meter/Min Glazed Tile Roll Forming Machine With 18 Rows on line Video

4meter/Min Glazed Tile Roll Forming Machine With 18 Rows

Dapatkan Harga Terbaik
Hubungi Kami
86-317-2016816
Hubungi Sekarang
Deskripsi produk

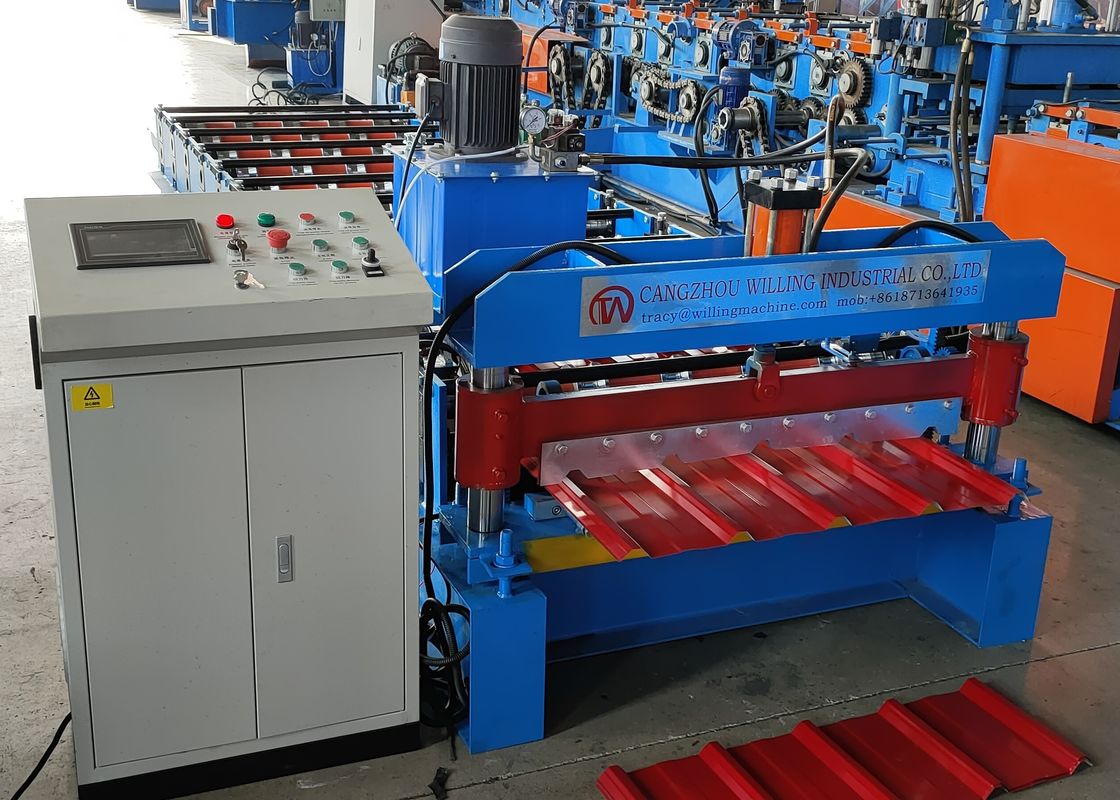

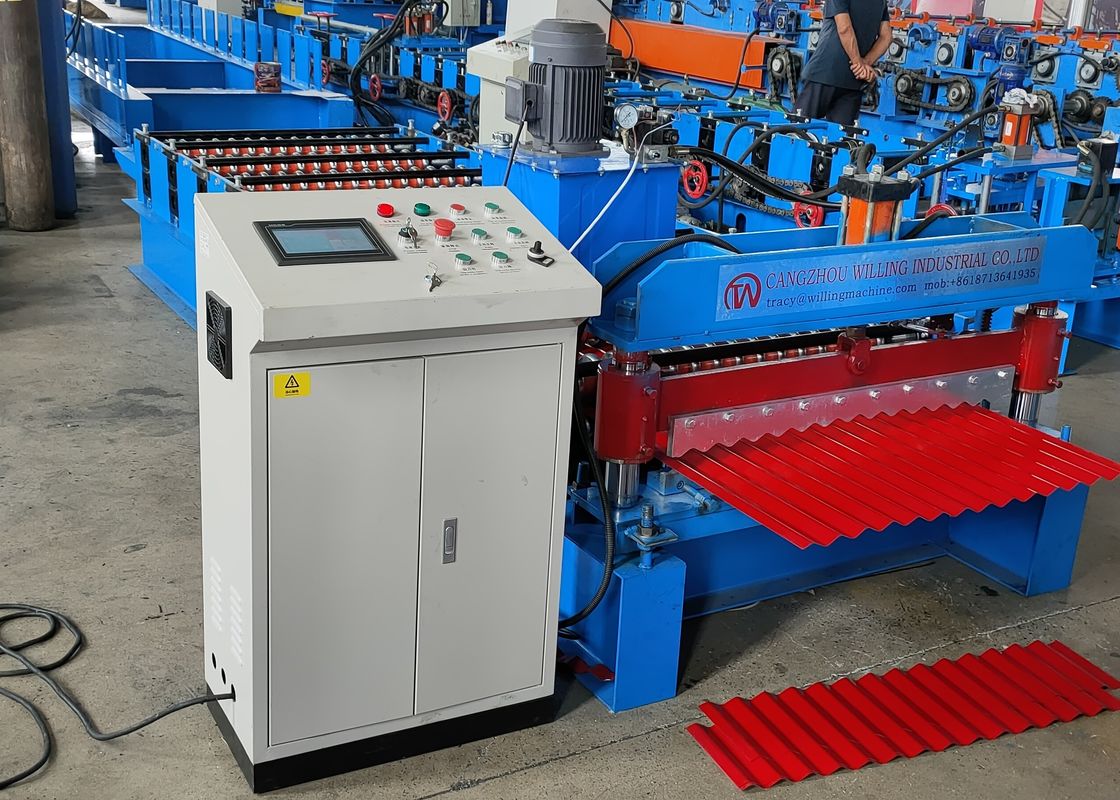

Corrugated 840 Touch Screen Roof Tile Roll Forming Machine



Corrugated 840 Touch Screen Roof Tile Roll Forming Machine is our main model in the African market. The usage rate of its version in Africa is as high as 95%. The machine has high efficiency, low energy consumption and stable operation, which can effectively save customers' time and labor costs.





Specification

No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3mm-0.8mm
3 Working Speed 15-20/min
4 Roller Station 12 Raws
5

Dimension (L*W*H)

 4500 mm*1200 mm*1200 mm
6 Machine Weight 3800 KG
7

Electrical Control System

PLC
8

Drive Motor Power

 3 KW
9

Hydraulic Station Power

 3 KW
10

Power Supply

380V/60HZ/3 PH
11

Cutting Accuracy

±2 mm
12

Driving Mode

Single Chain 1 inch
13

Material of Shaft

70 mm 45#steel forged
14 Material of Roller

45# Steel Finish Machining, Plated Hard



Application



This type of tile is suitable for daily buildings such as warehouses, special buildings, roofs, walls and large-span steel structure houses, etc. The tiles have anti-corrosion and acid-resistant effects. It has light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rainproof, and long life. the service life of this tiles is 10-15 years





Advantage



Cangzhou willing industrial is located in Fuzhuang Development Zone, 104 National Road, Botou City, Cangzhou City, Hebei Province. It is a manufacturer specializing in the design, production and sales of cold-formed machinery and composite board assembly lines. The company covers an area of 14,000 square meters and has 88 employees. , The company has strong strength, perfect quality and perfect after-sales service. It is a professional manufacturer of cold-formed machinery and equipment.
